Part Number # HBL2621S
SKU # 2464039
HBL2621S

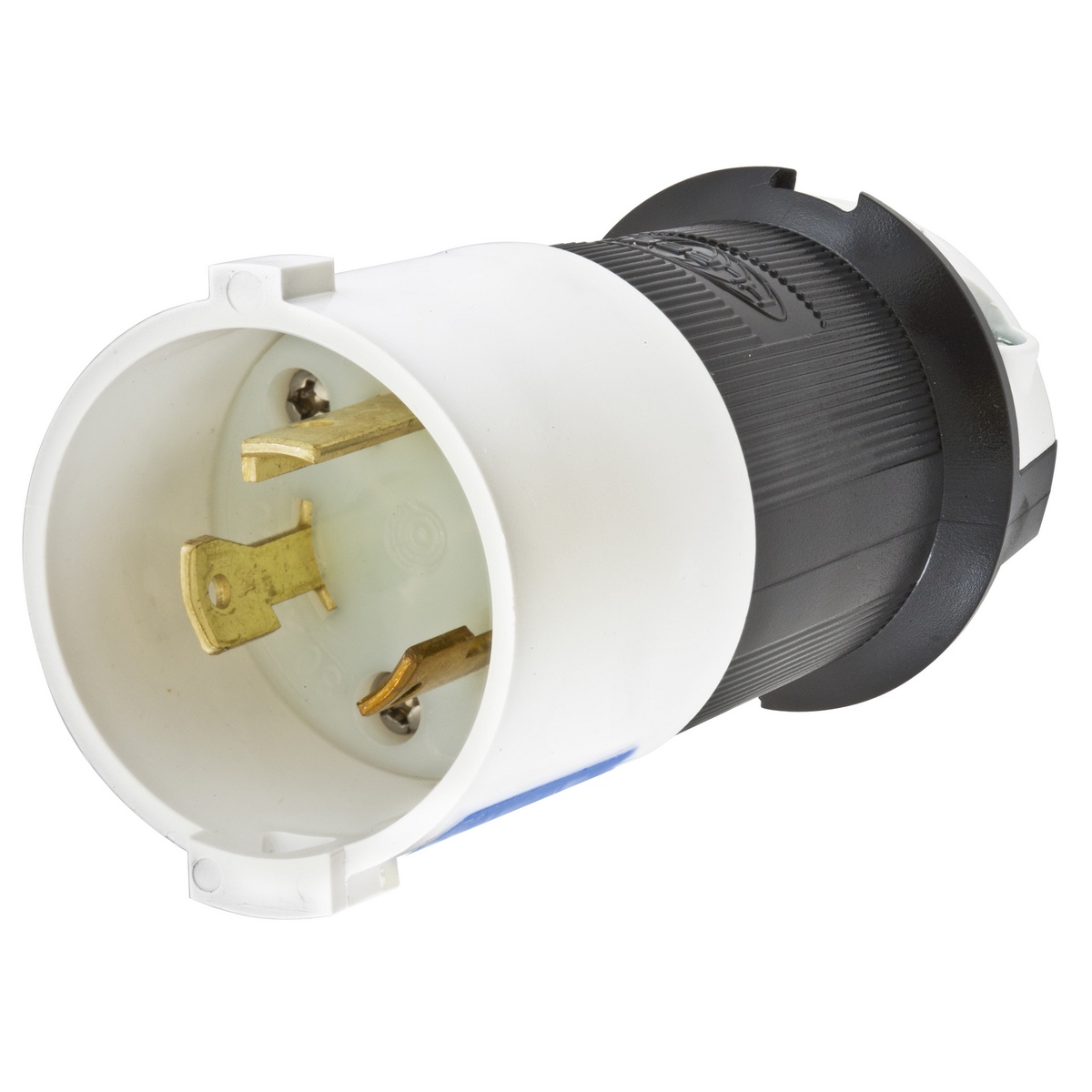

Hubbell Wiring Devices HBL2621S
Part Number # HBL2621S
SKU # 2464039
$47.79 / Each
Typical price:$61.75 / Each
Hubbell HBL2621S Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2621S |
| SKU #: | 2464039 |
| Amperage Rating: | 30 A |
| Cord Diameter: | 0.36 to 0.93 in |
| Dimensions: | 2.26 x 2.26 x 4.21 in |
| Enclosure: | IP20 |
| Horsepower: | 2 hp |
| NEMA Rating: | L6-30P |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | HBL |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Grounding Cord Mount |
| Country of origin: | US |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585234380 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$47.79 / Each
Typical price:$61.75 / Each
Quantity:
- Hubbell Wiring Device-Kellems Twist-Lock Safety-Shroud, HBL2621S, Locking Plug, 1-Phase Grounding Cord Mount, Series: HBL, 250 V AC, 30 A, 2 hp, 2 Pole, 3 Wires, L6-30P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.26 x 2.26 x 4.21 in Dimensions
HBL2621S Application
Power Connection ApplicationsHBL2621S Item Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance
- Integral dust shield protects wiring chamber from dust or contaminants
- Superior cord grip design protects terminations from excess strain
- https://youtu.be/1DnPJu3QNw0
HBL2621S Standards
UL 498|UL94 Flammability Rating|Federal Specification W-C-596|CSA C22.2 No. 42/0.6|RoHS CompliantSKU #2464039Part Number #HBL2621SUNSPSC39121402UPC00783585234380
Image provided may only be a representation of final product and may include optional equipment
