Part Number # HBL26W49
SKU # 2464322
HBL26W49
Hubbell Wiring Devices HBL26W49
Part Number # HBL26W49
SKU # 2464322
$61.64 / Each
Typical price:$79.65 / Each
Hubbell HBL26W49 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL26W49 |
| SKU #: | 2464322 |
| Amperage Rating: | 20 A |
| Cord Diameter: | 3/8 to 7/8 in |
| Dimensions: | 2.51 x 2.51 x 3.96 in |
| Enclosure: | NEMA 4/4X/6P/IP65/IP66/IP67 |
| Horsepower: | 2 hp |
| NEMA Rating: | L7-20P |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Grounding Male Standard Cord Mount Watertight |
| Country of origin: | US |
| Material: | Elastomer/Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585131412 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$61.64 / Each
Typical price:$79.65 / Each
Quantity:
- Hubbell Wiring Device-Kellems Twist-Lock, HBL26W49, Locking Plug, 1-Phase Grounding Male Standard Cord Mount Watertight, 277 V AC, 20 A, 2 hp, 2 Pole, 3 Wires, L7-20P NEMA Rating, Industrial Grade, NEMA 4/4X/6P/IP65/IP66/IP67 Enclosure, 3/8 to 7/8 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Elastomer/Composite, Yellow, 2.51 x 2.51 x 3.96 in Dimensions
HBL26W49 Item Features
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
- Stainless steel hardware and corrosion-resistant connection points
- https://youtu.be/a9HxdV3I_20
HBL26W49 Standards
ANSI Specified|UL 498|CSA C22.2 No. 42|NEMA WD1/WD6|RoHS CompliantSKU #2464322Part Number #HBL26W49UNSPSC39121402UPC00783585131412

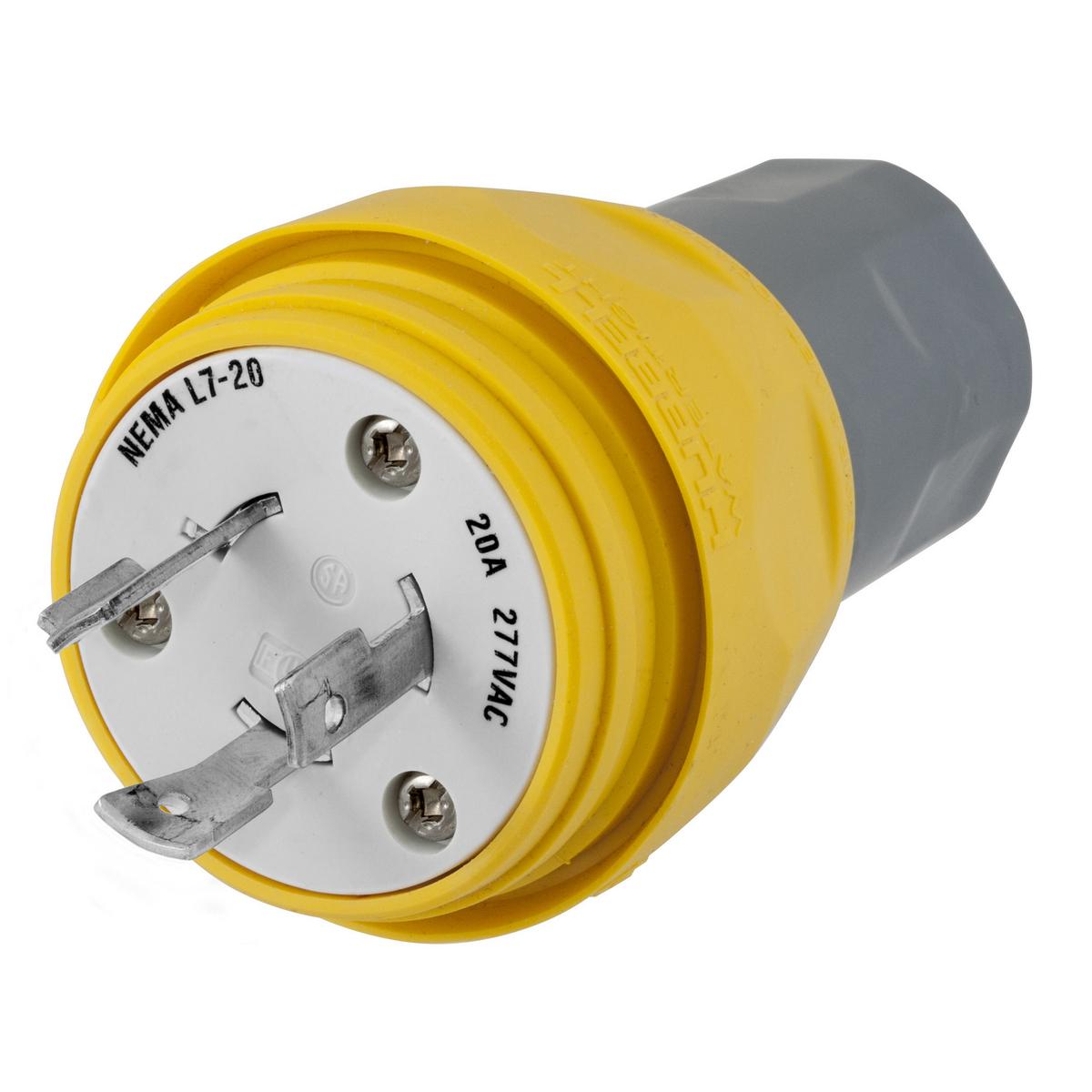

Image provided may only be a representation of final product and may include optional equipment
