Part Number # HBL27W75BK
SKU # 2464275
HBL27W75BK
Hubbell Wiring Devices HBL27W75BK
Part Number # HBL27W75BK
SKU # 2464275
$111.71 / Each
Typical price:$145.00 / Each
Hubbell HBL27W75BK Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL27W75BK |
| SKU #: | 2464275 |
| Amperage Rating: | 20 A |
| Cord Diameter: | 3/8 to 7/8 in |
| Dimensions: | 2.51 x 2.51 x 5.69 in |
| Enclosure: | NEMA 4/4X/6/6P/12/IP65/IP66/IP67 |
| NEMA Rating: | L15-20R/WD1/WD6 |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Terminal Type: | Screw |
| Type: | 3-Phase Grounding Water/Dust-Tight |
| Country of origin: | PR |
| Material: | Thermoplastic/Elastomer |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585456379 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$111.71 / Each
Typical price:$145.00 / Each
Quantity:

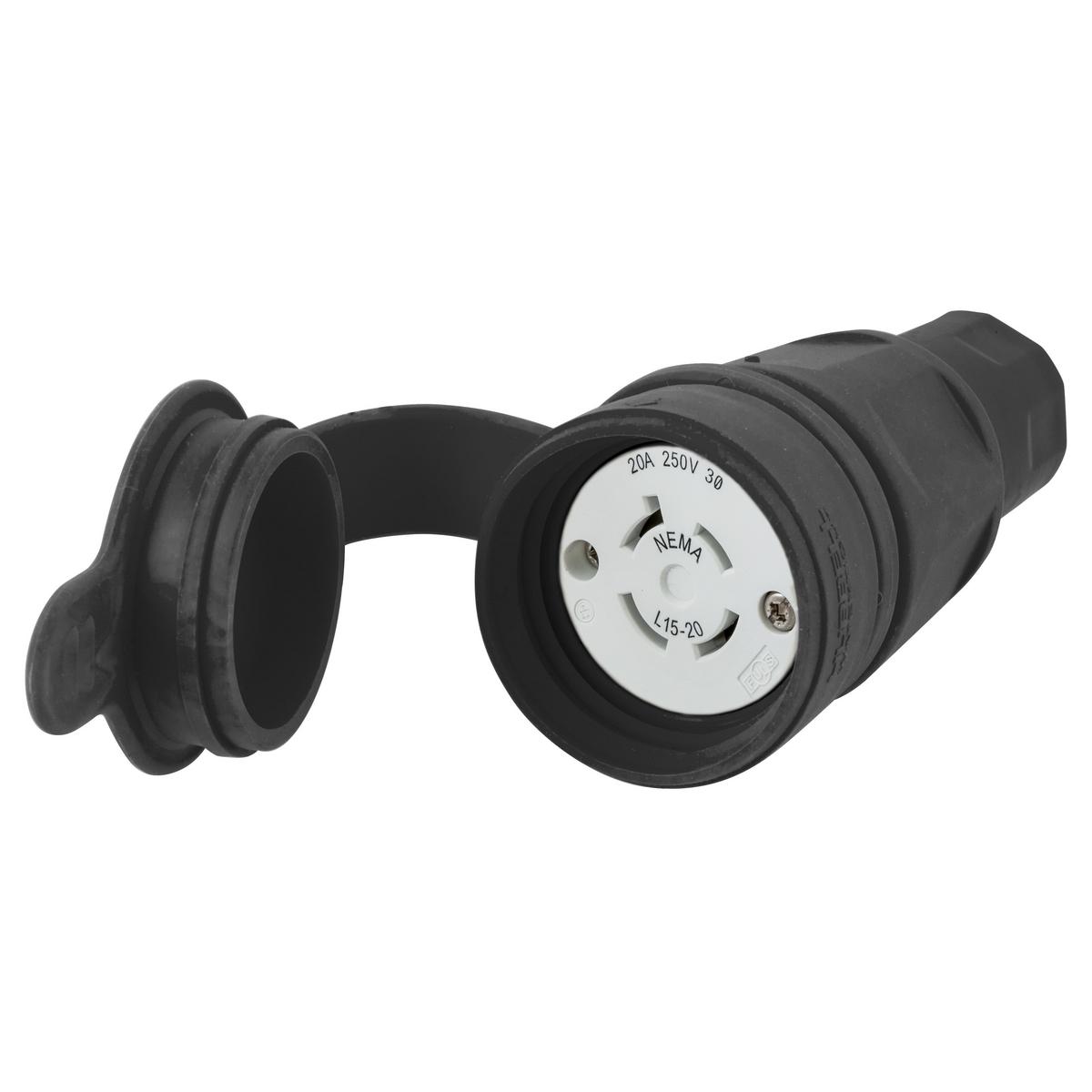

- Hubbell Wiring Device-Kellems Twist-Lock Elastogrip, HBL27W75BK, Female Connector, 3-Phase Grounding Water/Dust-Tight, 250 Delta V AC, 20 A, 3 Pole, 4 Wires, L15-20R/WD1/WD6 NEMA Rating, NEMA 4/4X/6/6P/12/IP65/IP66/IP67 Enclosure, 3/8 to 7/8 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Thermoplastic/Elastomer, Black, 2.51 x 2.51 x 5.69 in Dimensions
HBL27W75BK Item Features
- Stainless steel hardware and corrosion-resistant connection points
- Strain relief nut always seals on the body, minimizing debris collection
- Smooth body design minimizes collection points simplifying the wash down process
- https://youtu.be/a9HxdV3I_20
HBL27W75BK Standards
NEMA WD1/WD6|NSF Certified|UL94 V-2 Flammability Rating|RoHS Compliant|UL 498|CSA C22.2 No. 42|ANSI ApprovedSKU #2464275Part Number #HBL27W75BKUNSPSC39121421UPC00783585456379
Image provided may only be a representation of final product and may include optional equipment
