Part Number # HBL330CS2W
SKU # 2442938
Image Disclaimers Message
HBL330CS2W

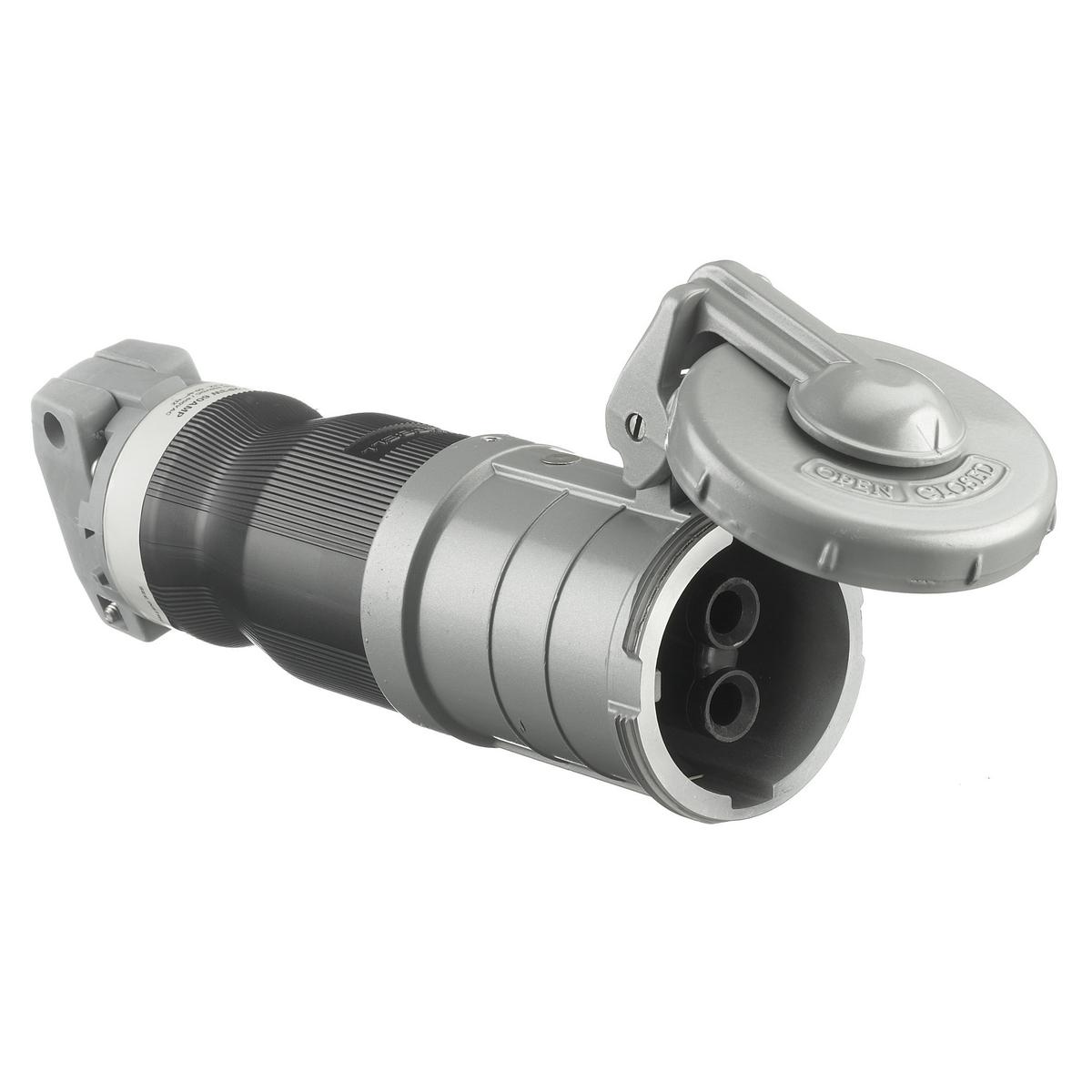

Hubbell Wiring Devices HBL330CS2W
Part Number # HBL330CS2W
SKU # 2442938
$355.71 / Each
Typical price:$543.00 / Each
Hubbell HBL330CS2W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL330CS2W |
| SKU #: | 2442938 |
| Amperage Rating: | 30 A |
| Dimensions: | 8.38 in L x 3.74 in H |
| Enclosure: | IP67 |
| NEMA Rating: | 4X |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | Female Heavy Duty Insulated Standard Watertight Cord Mount |
| Country of origin: | US |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585010083 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$355.71 / Each
Typical price:$543.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems, HBL330CS2W, Pin and Sleeve Connector, Female Heavy Duty Insulated Standard Watertight Cord Mount, 600 V AC/250 V DC, 30 A, 2 Pole, 3 Wires, 4X NEMA Rating, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/Gray, 8.38 in L x 3.74 in H Dimensions
HBL330CS2W Application
For high ampacity connectionsHBL330CS2W Item Features
- Watertight neoprene sealing glands for reliable seal
- Spring-Loaded, gasketed cover for dust-tight seal
- Pin chamber confines arcing within the interior chamber
- https://youtu.be/1DnPJu3QNw0
HBL330CS2W Standards
CSA C22.2 No. 182.1|UL 1682/1686/50/1010/498|CSA 94/159|UL94 V-0 Flammability RatingSKU #2442938Part Number #HBL330CS2WUNSPSC39121421UPC00783585010083
