Part Number # HBL400MGY
SKU # 2446298
HBL400MGY
Hubbell Wiring Devices HBL400MGY
Part Number # HBL400MGY
SKU # 2446298
$46.71 / Each
Typical price:$60.35 / Each
Hubbell HBL400MGY Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL400MGY |
| SKU #: | 2446298 |
| Amperage Rating: | 400 A |
| Dimensions: | 1.48 in Dia x 7.01 in L |
| Series: | 16 Series |
| Specifications: | 1-Pole, 1 ph, 1-Wire, 1-Pin, 240000 W |
| Type: | Male Standard |
| Wire Size: | 6 to 2/0 AWG, 4 to 2/0 AWG |
| Connection type: | Pressure Screw |
| Contact material: | Brass |
| Country of origin: | CN |
| Housing material: | Composite/TPE |
| Mounting type: | Cord/Surface |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585539027 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$46.71 / Each
Typical price:$60.35 / Each
Quantity:
- Hubbell Wiring Device-Kellems In-Line Plug, Male Standard, Series: 16 Series, 600 V AC/250 V DC, 400 A, 6 to 2/0 AWG, 4 to 2/0 AWG Wire, Pressure Screw Connection, Brass Contact, Composite/TPE Housing Material, Cord/Surface Mounting, Specifications: 1-Pole, 1 ph, 1-Wire, 1-Pin, 240000 W, Gray, 1.48 in Dia x 7.01 in L
HBL400MGY Application
High Ampacity Connections, Dry Location and Indoor ApplicationsHBL400MGY Item Features
- Insulgrip Style Housing for Superior Gripping
- Non-Conductive Retaining Screw locks contacts in place
- Large Raised Alignment Arrow aids in the mating of devices
HBL400MGY Standards
ANSI/NFPA 70|CSA C22.2. 0.17|cUL Listed|UL 498/1691|UL 94 Flammability Rating|NEC CertifiedSKU #2446298Part Number #HBL400MGYUNSPSC39121421UPC00783585539027

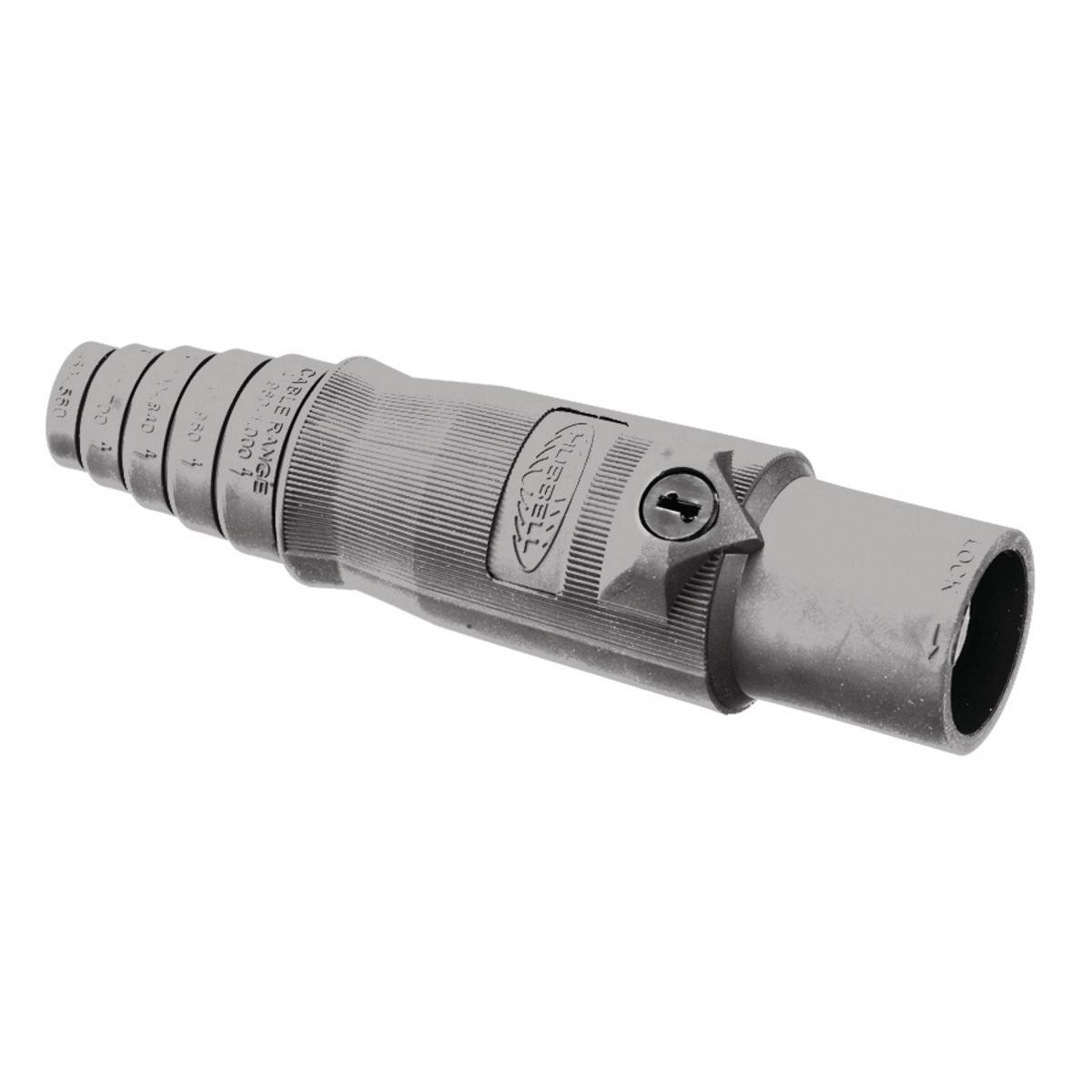

Image provided may only be a representation of final product and may include optional equipment
