Part Number # HBL4100MI5W
SKU # 2447961
HBL4100MI5W
Hubbell Wiring Devices HBL4100MI5W
Part Number # HBL4100MI5W
SKU # 2447961
Hubbell HBL4100MI5W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL4100MI5W |
| SKU #: | 2447961 |
| Amperage Rating: | 100 A |
| Dimensions: | 8-3/4 in W x 12-3/4 in H |
| Enclosure: | NEMA 4X/12/IP67 |
| Hub Size: | 1-1/4 in |
| Mounting: | Threaded |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Type: | 3-Phase Female Grounding Pressure Screw Terminal Standard Watertight |
| Country of origin: | US |
| Material: | Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585405872 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell Wiring Devices HBL4100MI5W
Brand: Hubbell
Part Number: HBL4100MI5W
Wiring Device-Kellems Circuit-Lock® Mechanical Interlock, 3-Phase Female Grounding Pressure Screw Terminal Standard Watertight, 600 VAC, 100 A, 50 hp, 60000 W, 3 Poles, 4 Wires, NEMA 4X/12/IP67 Enclosure, Threaded, Composite/Thermoplastic, Black, 12-3/4 in H x 8-3/4 in W
Additional Description: HUBW-HBL4100MI5W PS, IEC, MECHINT, 3P4W,100A 3P 600V,W/T
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 100A 3-Phase Delta 600V AC, 3-Pole 4 Wire Grounding, Terminal Screws
HBL4100MI5W Application
For high ampacity watertight connectionsHBL4100MI5W Item Features
- Large gears enclosed in a gear box
- Pre-wired IEC Pin and Sleeve receptacle
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
HBL4100MI5W Standards
UL 498|IEC 309-1/309-2|CSA CertifiedSKU #2447961Part Number #HBL4100MI5WUNSPSC39121406UPC00783585405872

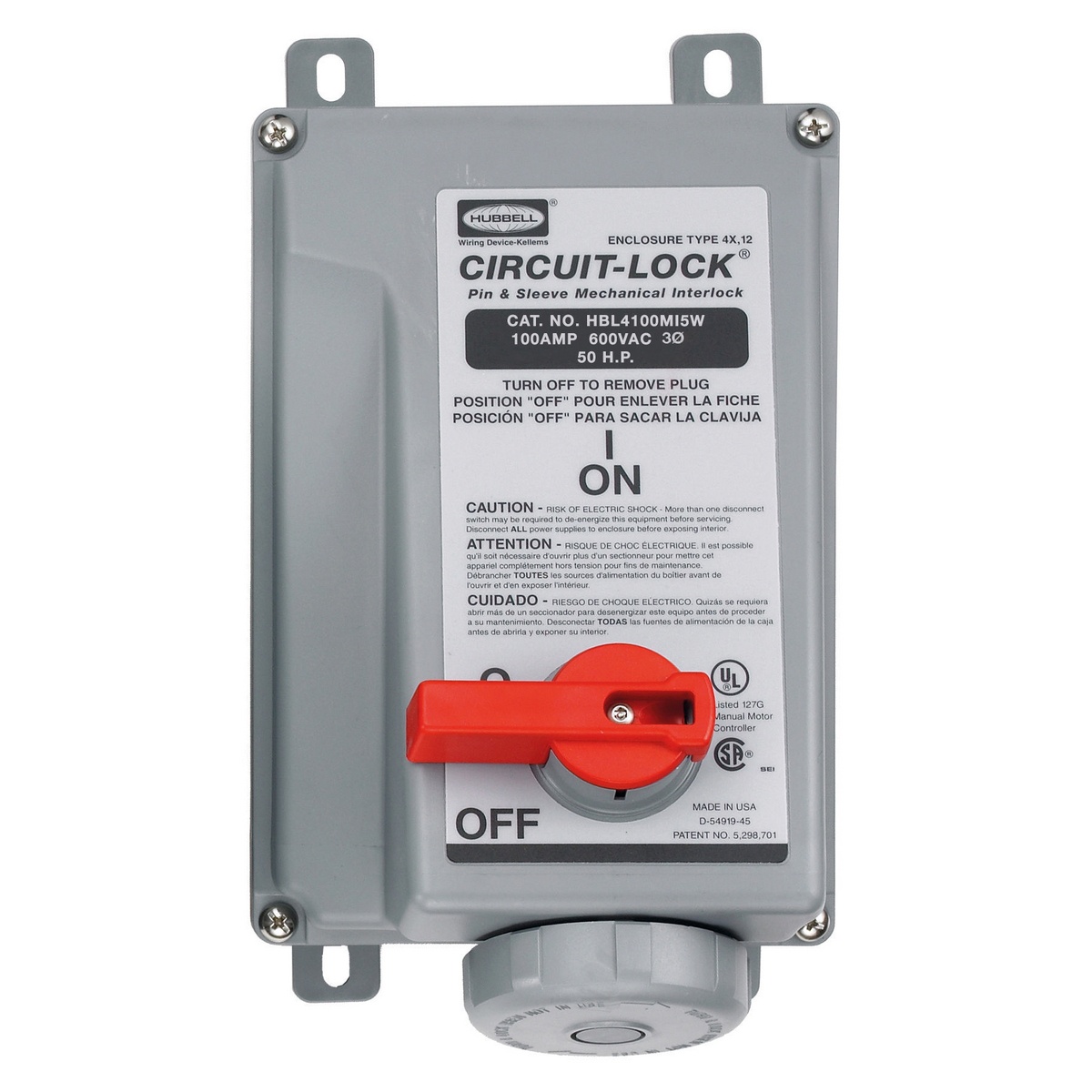

Image provided may only be a representation of final product and may include optional equipment
