Part Number # HBL47CM70C
SKU # 2456951
Image Disclaimers Message
Brand: Hubbell
HBL47CM70C
Hubbell Wiring Devices HBL47CM70C
Part Number # HBL47CM70C
SKU # 2456951
$25.71 / Each
Typical price:$39.25 / Each
Hubbell HBL47CM70C Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL47CM70C |
| SKU #: | 2456951 |
| Amperage Rating: | 15 A |
| Cord Diameter: | 0.23 to 0.72 in |
| Dimensions: | 1.53 x 1.53 x 1.97 in |
| Enclosure: | IP20 |
| Horsepower: | 2 hp |
| NEMA Rating: | L7-15P |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Corrosion Resistant Grounding Male Standard Cord Mount |
| Country of origin: | US |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585160900 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$25.71 / Each
Typical price:$39.25 / Each
Quantity:

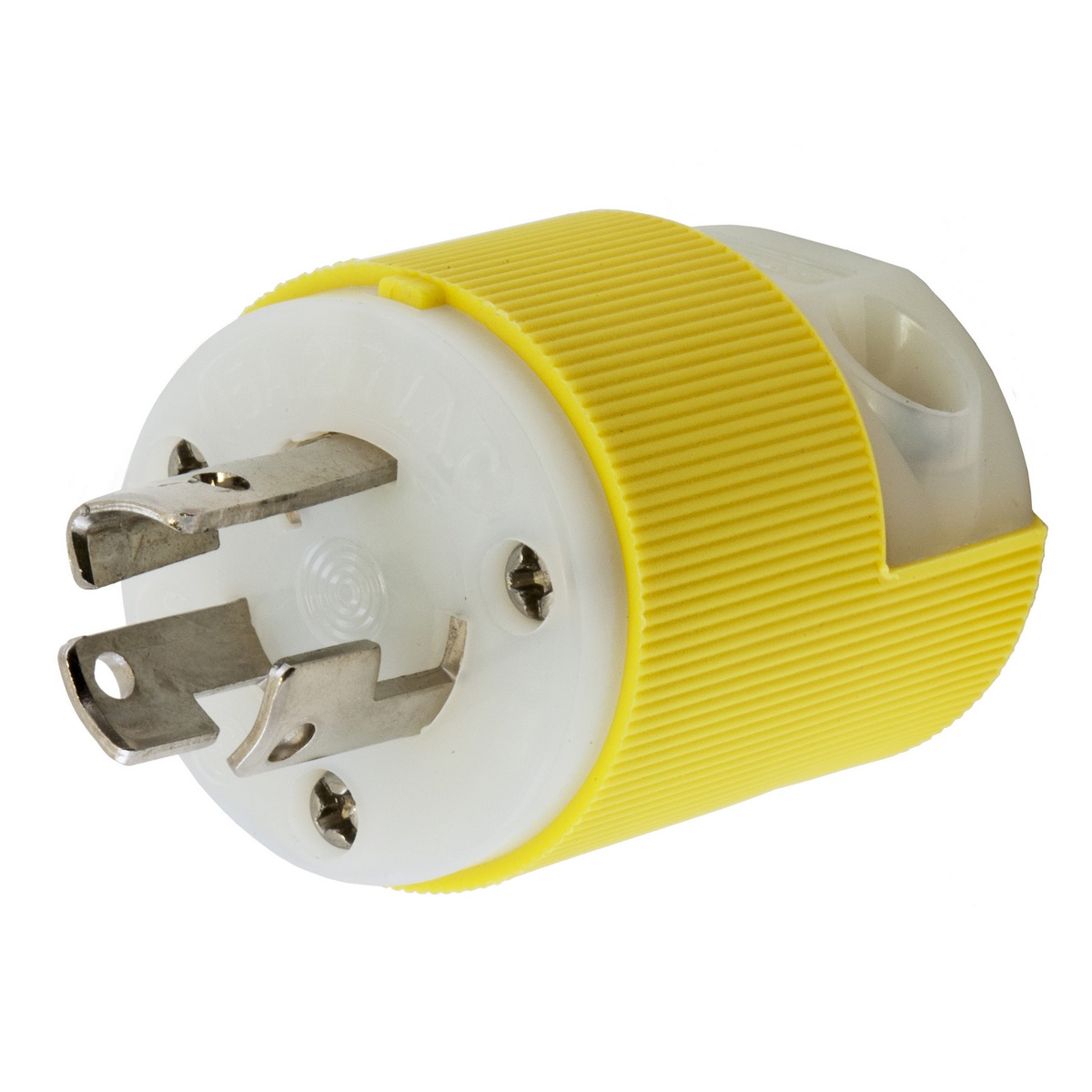

- Hubbell Wiring Device-Kellems, HBL47CM70C, Locking Plug, 1-Phase Corrosion Resistant Grounding Male Standard Cord Mount, 125 V AC, 15 A, 2 hp, 2 Pole, 3 Wires, L7-15P NEMA Rating, Marine Grade, IP20 Enclosure, 0.23 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Yellow, 1.53 x 1.53 x 1.97 in Dimensions
HBL47CM70C Application
Dry Locations, Power Connection and Indoor Environment ApplicationsHBL47CM70C Item Features
- Individually molded face for each blade configuration
- Roomy wiring chamber provides ample space for wiring
- Ribbed nylon housing provides a secure grip thats impact and chemical resistant
- https://youtu.be/1DnPJu3QNw0
HBL47CM70C Standards
RoHS Compliant|CSA C22.2 No. 42/0.6|UL94HB Flammability Rating|Federal Specification W-C-596|UL 94/498/2306SKU #2456951Part Number #HBL47CM70CUNSPSC39121402UPC00783585160900
