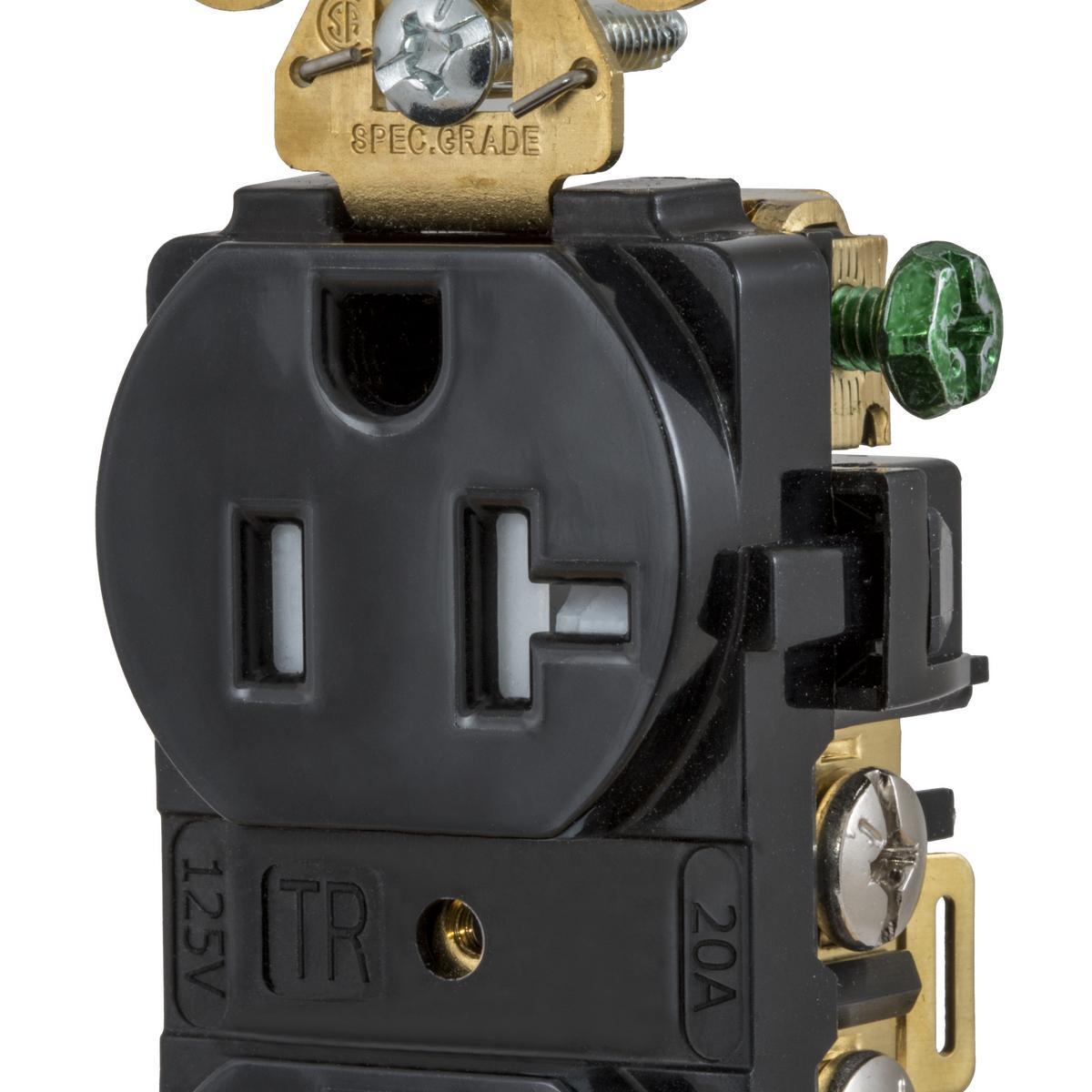

HBL5362BKTR
Hubbell Wiring Devices HBL5362BKTR
Part Number # HBL5362BKTR
SKU # 2457889
Hubbell HBL5362BKTR Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL5362BKTR |
| SKU #: | 2457889 |
| Amperage Rating: | 20 A |
| Dimensions: | 1.32 in W x 0.83 in D x 3.28 in H |
| Horsepower: | 1 hp |
| NEMA Rating: | 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Duplex Extra Heavy Duty Grounding Standard Tamper-Resistant Traditional Screw Mount |
| Country of origin: | MX |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585542478 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell Wiring Devices HBL5362BKTR
Brand: Hubbell
Part Number: HBL5362BKTR
Wiring Device-Kellems Straight Blade Receptacle, Duplex Extra Heavy Duty Grounding Standard Tamper-Resistant Traditional, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Screw Terminal, Nylon, Black, 3.28 in H x 1.32 in W x 0.83 in D Dimensions
Additional Description: HUBW-HBL5362BKTR DUP RCPT, IND, TR, 20A/125V, 5-20R, BK
Catalog Description: Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Black, Single Pack
HBL5362BKTR Application
Schools, Universities, Hotels, Convention Centers, Assisted Living Facilities, Transportation Centers and Military Barracks ApplicationsHBL5362BKTR Item Features
- Patented TR design eliminates plug-in difficulty and TR complaints
- Brass mounting strap and Triple Wipe contacts
- High impact resistant face with circuit I.D. marking area
- Complies with National Electrical Code (NEC) requirements for Tamper Resistant receptacles
- https://youtu.be/_gRwAmAYiQ8
HBL5362BKTR Standards
CSA C22.2 No. 42|Federal Specification W-C-596|NEMA WD6|UL 498 File No. E2186|UL Listed|CSA Certified|NAFTA Compliant|Trade Agreement Act CompliantSKU #2457889Part Number #HBL5362BKTRUNSPSC39121406UPC00783585542478
