HBL69W81
Hubbell Wiring Devices HBL69W81
Part Number # HBL69W81
SKU # 2468064
Hubbell HBL69W81 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL69W81 |
| SKU #: | 2468064 |
| Dimensions: | 4.56 x 3.1 x 2.92 in |
| Type: | 3-Phase Grounding Standard Single Watertight Screw Mount |
| UNSPSC: | 39121406 |
| UPC: | 00783585433318 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell Wiring Devices HBL69W81
Brand: Hubbell
Part Number: HBL69W81

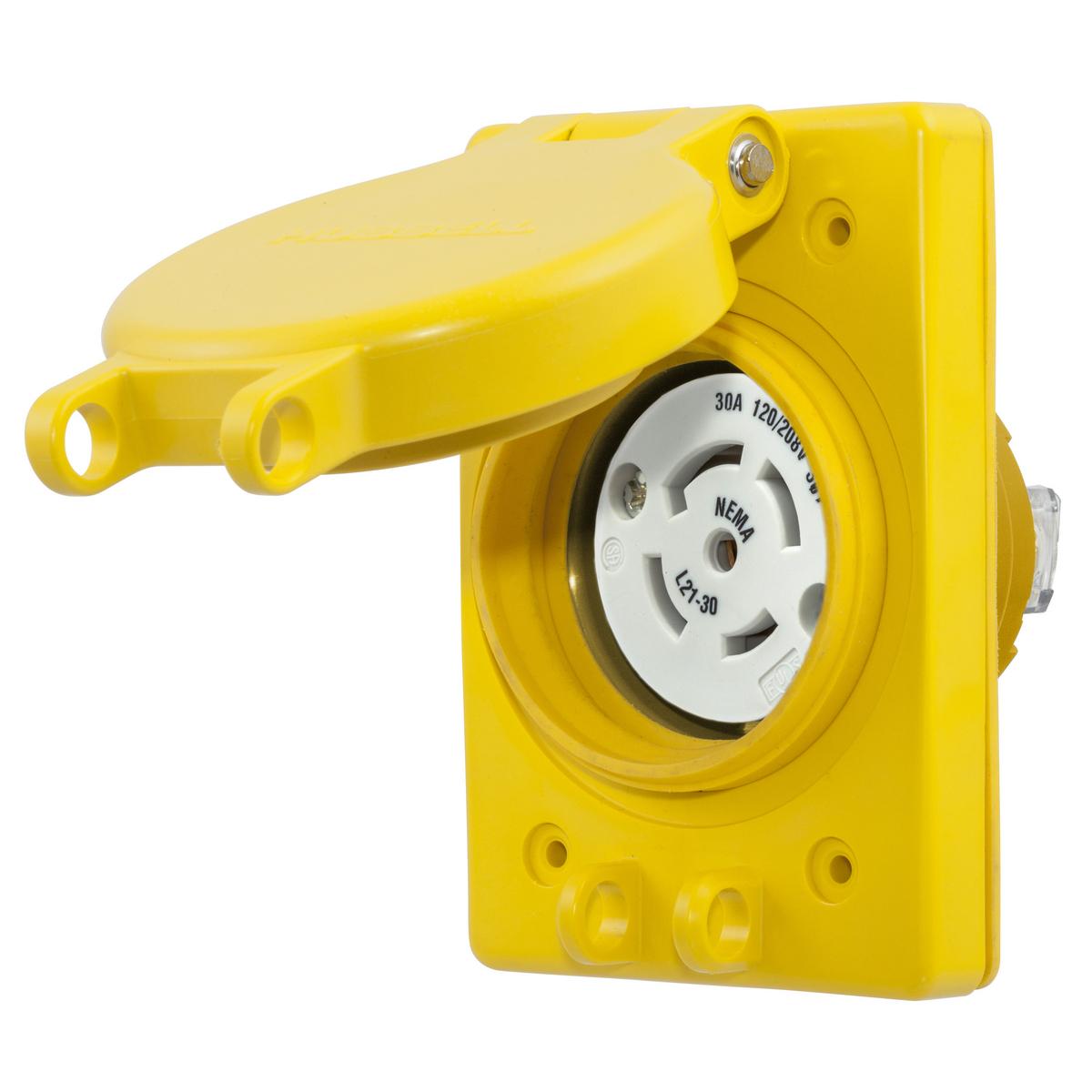

Wiring Device-Kellems Twist-Lock® Locking Receptacle, Grounding Standard Single Watertight, 120/208 VAC, 30 A, 4 Pole, 5 Wires, NEMA L21-30R, Industrial Grade, NEMA 4/4X/12/6/6P/IP65/66/67 Enclosure, -40 to 60 deg C, Screw Terminal, Composite/Elastomer, Yellow, 4.56 in H x 3.1 in W x 1.2 in D Dimensions
Additional Description: HUBW-HBL69W81 (N) WATERTIGHT RECEP, 30A 120/208V, L21-30 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 30A, 3 Phase WYE 120/208V AC, 4 Pole, 5 Wire, Thermoplastic elastomer, NEMA L21-30R, Yellow
HBL69W81 Application
Commercial, Wet and Wash ApplicationsHBL69W81 Item Features
- Thermoplastic elastomer seal
- Impact resistant PBT lid, cover plate, and receptacle body
- Stainless steel hardware and corrosion-resistant connection points
- https://youtu.be/KP86bTO15Vs
HBL69W81 Standards
RoHS Compliant|ANSI Specified|UL 498|CSA C22.2 No. 42|NEMA WD1/WD6SKU #2468064Part Number #HBL69W81UNSPSC39121406UPC00783585433318
Image provided may only be a representation of final product and may include optional equipment
