Part Number # HBLDS10SSRAC
SKU # 2434429
HBLDS10SSRAC
Hubbell Wiring Devices HBLDS10SSRAC
Part Number # HBLDS10SSRAC
SKU # 2434429
$1505.71 / Each
Typical price:$2857.00 / Each
Hubbell HBLDS10SSRAC Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLDS10SSRAC |
| SKU #: | 2434429 |
| Amperage Rating: | 100 A |
| Dimensions: | 11.41 x 7.66 x 6.1 in |
| Enclosure Type: | Type 4X/IP69K |
| Horsepower: | 50 hp |
| Number of Poles: | 3 |
| Phase: | 3 |
| Short Circuit Current Rating (kA): | 65 kA |
| Temperature Rating (Degrees F): | -40 deg C |
| Terminal Type: | Screw |
| Type: | Sloped Top Standard Unfused |
| Country of origin: | PL |
| Material: | Stainless Steel |
| Mounting type: | Threaded |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121521 |
| UPC: | 00783585541648 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1505.71 / Each
Typical price:$2857.00 / Each
Quantity:

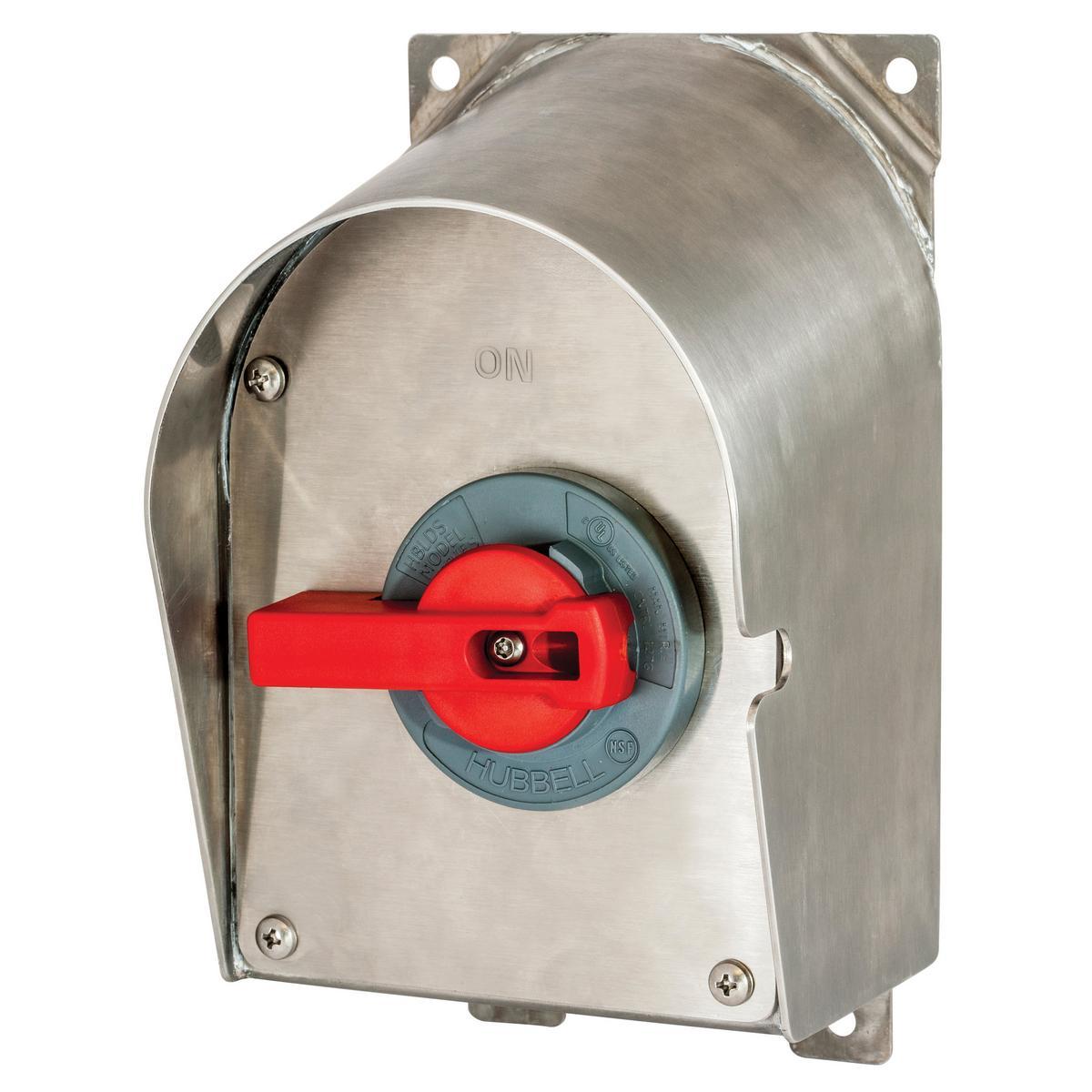

- Hubbell Wiring Device-Kellems Circuit-Lock Enclosed Disconnect Switch, Sloped Top Standard Unfused, 600 V, 100 A, 50 hp, 3 ph, 3 Pole, 65 kA Short Circuit, Type 4X/IP69K Enclosure, Threaded Mounting, Screw Terminal, -40 deg C, 11.41 x 7.66 x 6.1 in, Stainless Steel
HBLDS10SSRAC Application
For motor starting without overload protection, indoor and outdoor applicationsHBLDS10SSRAC Item Features
- Accepts up to 2 Auxiliary contacts
HBLDS10SSRAC Standards
UL 508|cUL Listed|NSF|CSA Certified|RoHS CompliantSKU #2434429Part Number #HBLDS10SSRACUNSPSC39121521UPC00783585541648
Image provided may only be a representation of final product and may include optional equipment
