Brand: Hubbell

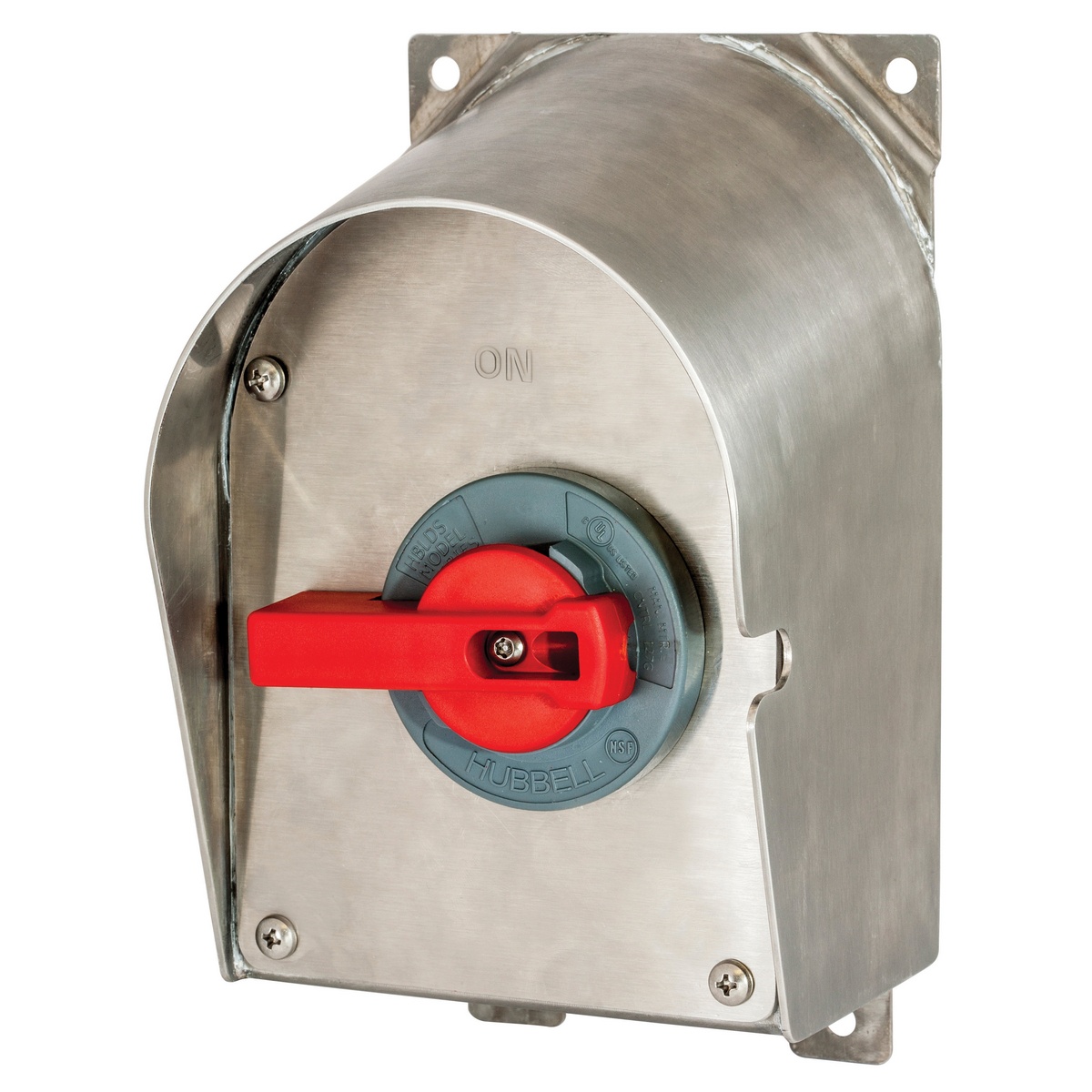

Hubbell Wiring Devices HBLDS10SSRVFD
Image Disclaimers Message
Brand: Hubbell
Hubbell Wiring Devices HBLDS10SSRVFD
Brand: Hubbell
Hubbell Wiring Devices HBLDS10SSRVFD
Part #:HBLDS10SSRVFD
SKU #: 2437050
$1431.43/EA
Key Features
Part #:HBLDS10SSRVFD
SKU #: 2437050
Brand: Hubbell
Amperage Rating: 100 A
Dimensions: 11.41 x 7.66 x 6.1 in
Enclosure Type: Type 4X/IP69K
Horsepower: 50 hp
Number of Poles: 3
$1431.43/EA
- Fixed offset 1/4 in mounting feet meet NEC airspace requirements for metal enclosures
- Labelless markings on the cover
- Highly visible red handle which meets OSHA lockout/tagout capabilities
- Cover cannot be removed with switch in the "ON" position
- Sloped top design sheds water and debris
- Integrates a verified break before break auxiliary contact factory installed in HBLDS series
- Prevents downtime from out of sequence equipment shutdowns
- Accepts up to 2 Auxiliary contacts
Specifications
Brand: Hubbell
Amperage Rating: 100 A
Dimensions: 11.41 x 7.66 x 6.1 in
Enclosure Type: Type 4X/IP69K
Horsepower: 50 hp
Number of Poles: 3
Phase: 3 ph
Short Circuit Current Rating (kA): 65 kA
Temperature Rating (Degrees F): -40 deg C
Terminal Type: Screw
Type: Sloped Top Standard Unfused
Voltage Rating: 600 V
Country of origin: PL
Material: Stainless Steel
Mounting type: Threaded
Manufacturer Name: Hubbell
UNSPSC: 39121521
UPC: 00783585541655
Item FeaturesFor use with variable frequency drives, motor starting without overload protection, indoor and outdoor applications
Item Features
Item FeaturesUL 508|cUL Listed|NSF Approved|CSA Certified|RoHS Compliant
