Part Number # HBLFBW
SKU # 2457794
Image provided may only be a representation of
final product and may include optional equipment
HBLFBW
Hubbell Wiring Devices HBLFBW
Part Number # HBLFBW
SKU # 2457794
Hubbell HBLFBW Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLFBW |
| SKU #: | 2457794 |
| Dimensions: | 6.84 in L x 1.95 in W |
| Series: | 16 Series |
| Specifications: | 1-Wire, 1-Pin, 600 V AC/250 V DC, 400 A, 240000 W, SC/PPC Cord, Cord Mount, Pressure Terminal Screw Connection, Brass Contact, Nylon Retaining Screw, 3R/4X/12 Enclosure |
| Type: | 1-Pole 1-Phase 1-Conductor Female Heavy Duty Industrial Grade Standard |
| Country of origin: | CN |
| Material: | Thermoplastic Elastomer |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585112541 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell Wiring Devices HBLFBW
Brand: Hubbell
Part Number: HBLFBW

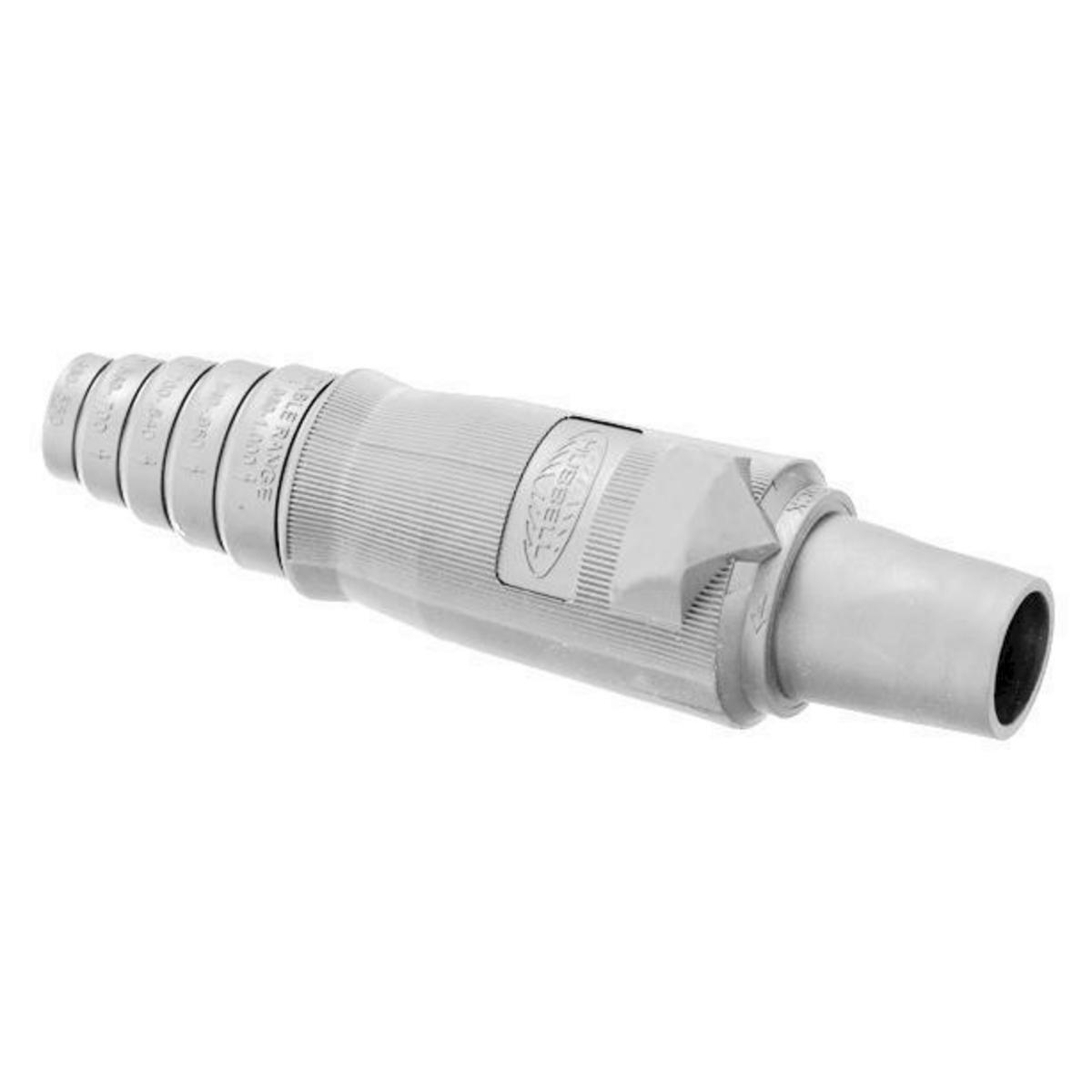

Bryant Electric Wiring Device-Kellems Replacement Plug Body, 1-Pole 1-Phase 1-Conductor Female Heavy Duty Industrial Grade Standard, Series: 16 Series, Specifications: 1-Wire, 1-Pin, 600 VAC/250 VDC, 400 A, 240000 W, SC/PPC Cord, Cord Mount, Pressure Terminal Screw Connection, Brass Contact, Nylon Retaining Screw, 3R/4X/12 Enclosure, Thermoplastic Elastomer, White, 6.84 in L x 1.95 in W Dimensions
Additional Description: HUBW-HBLFBW (N) SINGLEPOLE, REPL BODY, FEM PLUG, WH NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Heavy Duty Products, Single Pole Devices, Industrial Grade, Replacement Parts, Female Plug Body, For 300/400A 600V AC/DC, Single Conductor, Set Screw, White
HBLFBW Application
High Ampacity Connection ApplicationsHBLFBW Item Features
- Ergonomic housing for superior gripping
- Non-conductive retaining screw locks contacts in place
- Large raised alignment arrow aids in the mating of devices
- Double cam design provides high contact pressure and a vibration-resistant connection
- High conductivity brass contacts
- Extra long locking ring
HBLFBW Standards
RoHS Compliant|cULus Listed|UL 498|UL 1691SKU #2457794Part Number #HBLFBWUNSPSC39121402UPC00783585112541
