Part Number # HBLFRGY
SKU # 2436858
HBLFRGY
Hubbell Wiring Devices HBLFRGY
Part Number # HBLFRGY
SKU # 2436858
Hubbell HBLFRGY Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLFRGY |
| SKU #: | 2436858 |
| Amperage Rating: | 400 A |
| Dimensions: | 3.68 in W |
| Series: | 16 Series |
| Specifications: | 1 ph, 1-Pin, 1-Wire, 24000 W |
| Type: | Female Straight |
| Wire Size: | 4 to 4/0 AWG |
| Connection type: | Double Set Screw |
| Contact material: | Brass |
| Country of origin: | CN |
| Housing material: | Composite/TPE |
| Mounting type: | Panel |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585539003 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell Wiring Devices HBLFRGY
Brand: Hubbell
Part Number: HBLFRGY

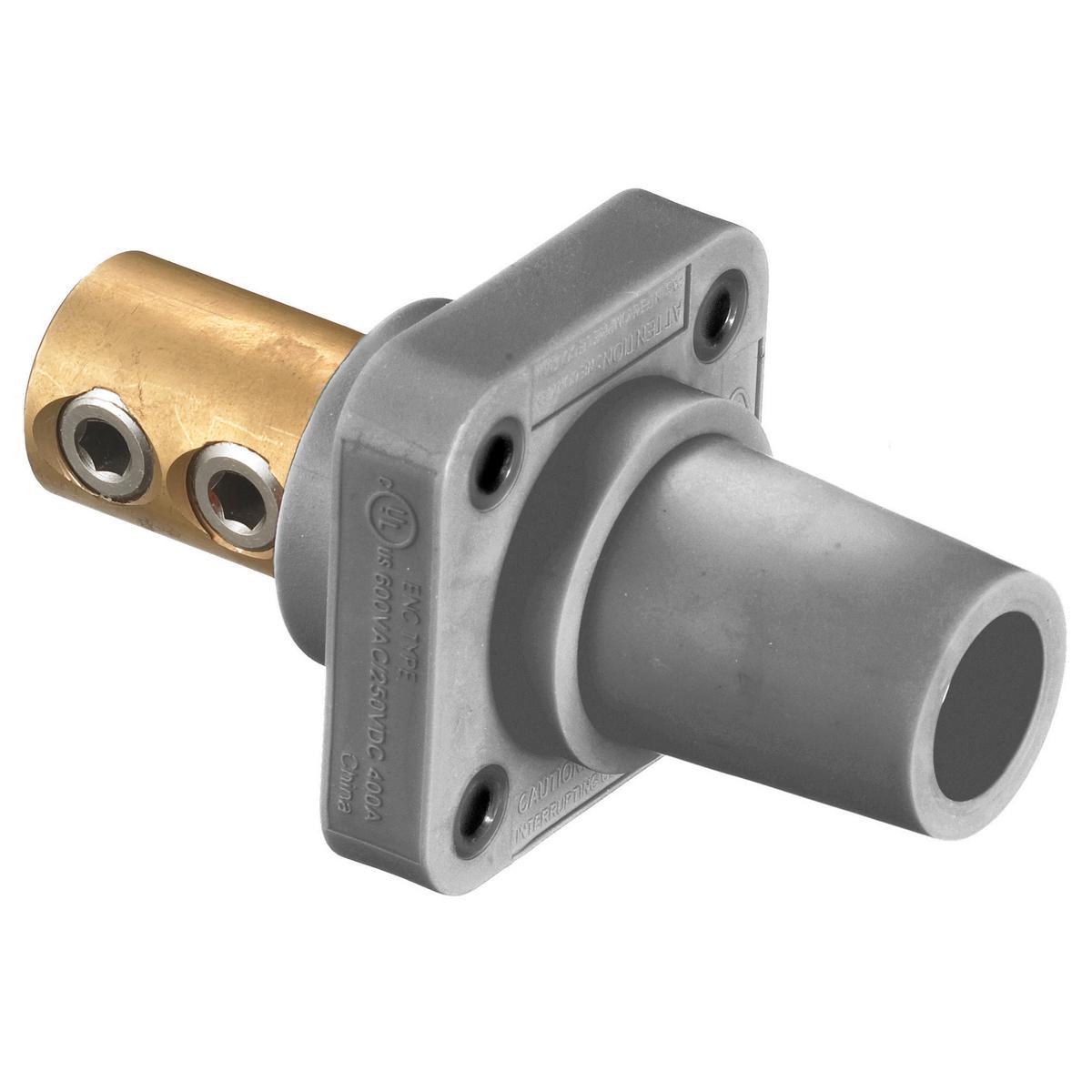

Bryant Electric Wiring Device-Kellems Single Pole Receptacle, Cam Type, Series: 16 Series, 600 VAC/VDC, 250 VDC, 300/400 A, 4 to 4/0 AWG Wire, Double Set Screw/Female Connection, Brass Contact, Thermoplastic Elastomer Housing Material, NEMA 3R/4X/12 NEMA Rating, Panel/Through Hole Mounting, Specifications: (4) 0.2 in Mounting Hole, (2) 7/32 in Socket Head Set Screws, Nylon Retaining Screw, -40 to 60 deg C, Gray, 4.1 in L x 2.2 in W x 2.2 in H Dimensions
Additional Description: HUBW-HBLFRGY SINGLEPOLE, 300/400A FEM RCPT, SCREW, GY
Catalog Description: Single Pole Products, Female Receptacle, 300/400A 600V AC/DC, Set Screw, Gray
HBLFRGY Application
Dry Locations, High Ampacity Connections, Industrial and Indoor ApplicationsHBLFRGY Standards
ANSI/NFPA 70|CSA 22.2. 0.17|cUL Listed|UL 498/1691|UL94 Flammability Rating|NECSKU #2436858Part Number #HBLFRGYUNSPSC39121406UPC00783585539003
