Part Number # HBLMRBBK
SKU # 2436272
HBLMRBBK
Hubbell Wiring Devices HBLMRBBK
Part Number # HBLMRBBK
SKU # 2436272
Hubbell HBLMRBBK Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLMRBBK |
| SKU #: | 2436272 |
| Dimensions: | 3.57 in L x 2.2 in W x 2.2 in H |
| Specifications: | 1 ph, 1-Pin, 1-Flange, 1-Conductor, 240000 W, 5/16-18 UNC-2B Threaded Hole |
| Type: | 1-Pole Heavy Duty Industrial Grade Male Standard |
| UNSPSC: | 39121406 |
| UPC: | 00783585454658 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell Wiring Devices HBLMRBBK
Brand: Hubbell
Part Number: HBLMRBBK

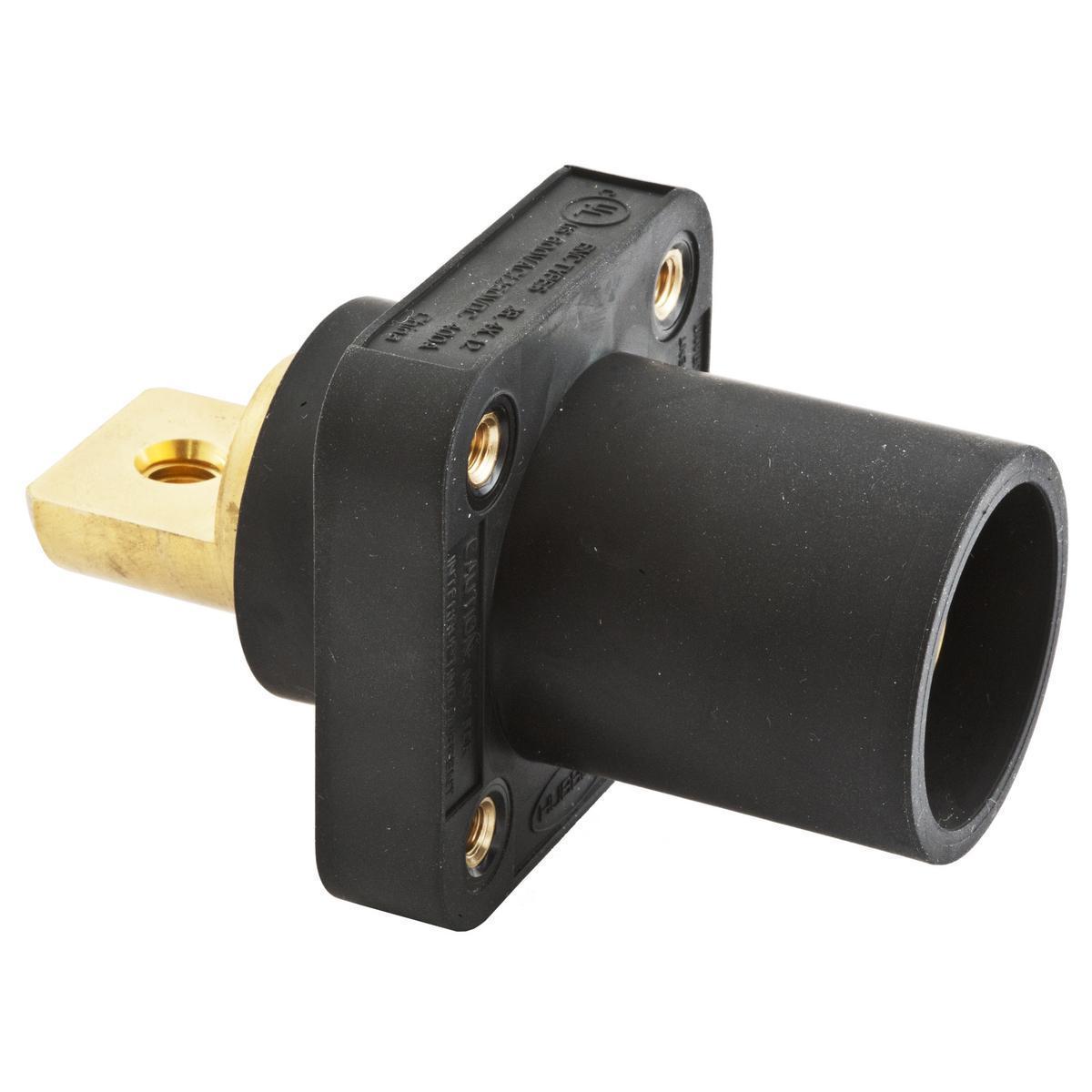

Hubbell Wiring Device-Kellems Single Pole Bus Receptacle, 1-Pole Heavy Duty Industrial Grade Male Standard, Series: 16 Series, 600 V AC/250 V DC, 400 A, 4 to 4/0 AWG Wire, Screw Terminal Connection, Brass Contact, Thermoplastic Housing Material, Threaded Mounting, Specifications: 1 ph, 1-Pin, 1-Flange, 1-Conductor, 240000 W, 5/16-18 UNC-2B Threaded Hole, 90 deg C, Black, 3.57 in L x 2.2 in W x 2.2 in H
Additional Description: HUBW-HBLMRBBK SINGLEPOLE, 300/400A MALE BUS RECEP, BK
Catalog Description: Heavy Duty Products, Single Pole Devices, Industrial Grade, Male Bus Receptacle, 300/400A 600V AC/DC, Single Conductor, Black
HBLMRBBK Application
For attachment plugs and receptacles, single pin and sleeve devices intended for theatre, stage and studio, high ampacity connections, dry locations, industrial and indoor applicationsHBLMRBBK Item Features
- Insulgrip style housing for superior gripping conforms to the users hand making it easy to connect and disconnect, even with gloves on
- Easily identifiable cable cut-off points for secure fit allows you to easily customize and cut the housing to the required/correct cable size
- Rounded corners reduce the possibility of catching or snagging on structures or equipment
- Recessed mounting screw minimizes screwdriver slippage
- With lock indicator symbol making mating clear and simple, devices can lock 180 deg to prevent unintended disconnects
- Provides high contact pressure and vibration resistant connection, which helps reduce operating temperatures and extends product life
- Special screw thread requires fewer turns than most competitors and reduces the risk of a conductive screw being substituted
- Extra long non-conductive inner sleeve reduces force required to install housing over contacts, easier to rotate contact in body for installing retaining screw
- Engineered body design makes installation simple with no need for additional tools and the non-metallic retaining screw helps to make operation safe for all involved
- Strip gauge molded into every plug and receptacle housing, simplifies installation and saves time
- Indoor dry unless protected by additional means
HBLMRBBK Standards
CSA 22.2. 0.17|cULus Listed|UL 498|UL 1691|UL 94|ANSI/NFPA 70|NEC CertifiedSKU #2436272Part Number #HBLMRBBKUNSPSC39121406UPC00783585454658
Image provided may only be a representation of final product and may include optional equipment
