Part Number # HBLMRBW
SKU # 2446464
HBLMRBW
Hubbell Wiring Devices HBLMRBW
Part Number # HBLMRBW
SKU # 2446464
$51.07 / Each
Typical price:$66.00 / Each
Hubbell HBLMRBW Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLMRBW |
| SKU #: | 2446464 |
| Amperage Rating: | 400 A |
| Dimensions: | 3.57 in L x 2.2 in W x 2.2 in H |
| Series: | 16 Series |
| Specifications: | 1 ph, 1-Pin, 1-Flange, 1-Conductor, 240000 W, 5/16-18 UNC-2B Threaded Hole |
| Temperature Rating (Degrees F): | 90 deg C |
| Type: | 1-Pole Heavy Duty Industrial Grade Male Standard |
| Wire Size: | 4 to 4/0 AWG |
| Connection type: | Screw Terminal |
| Contact material: | Brass |
| Country of origin: | CN |
| Housing material: | Thermoplastic |
| Mounting type: | Threaded |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585454665 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$51.07 / Each
Typical price:$66.00 / Each
Quantity:

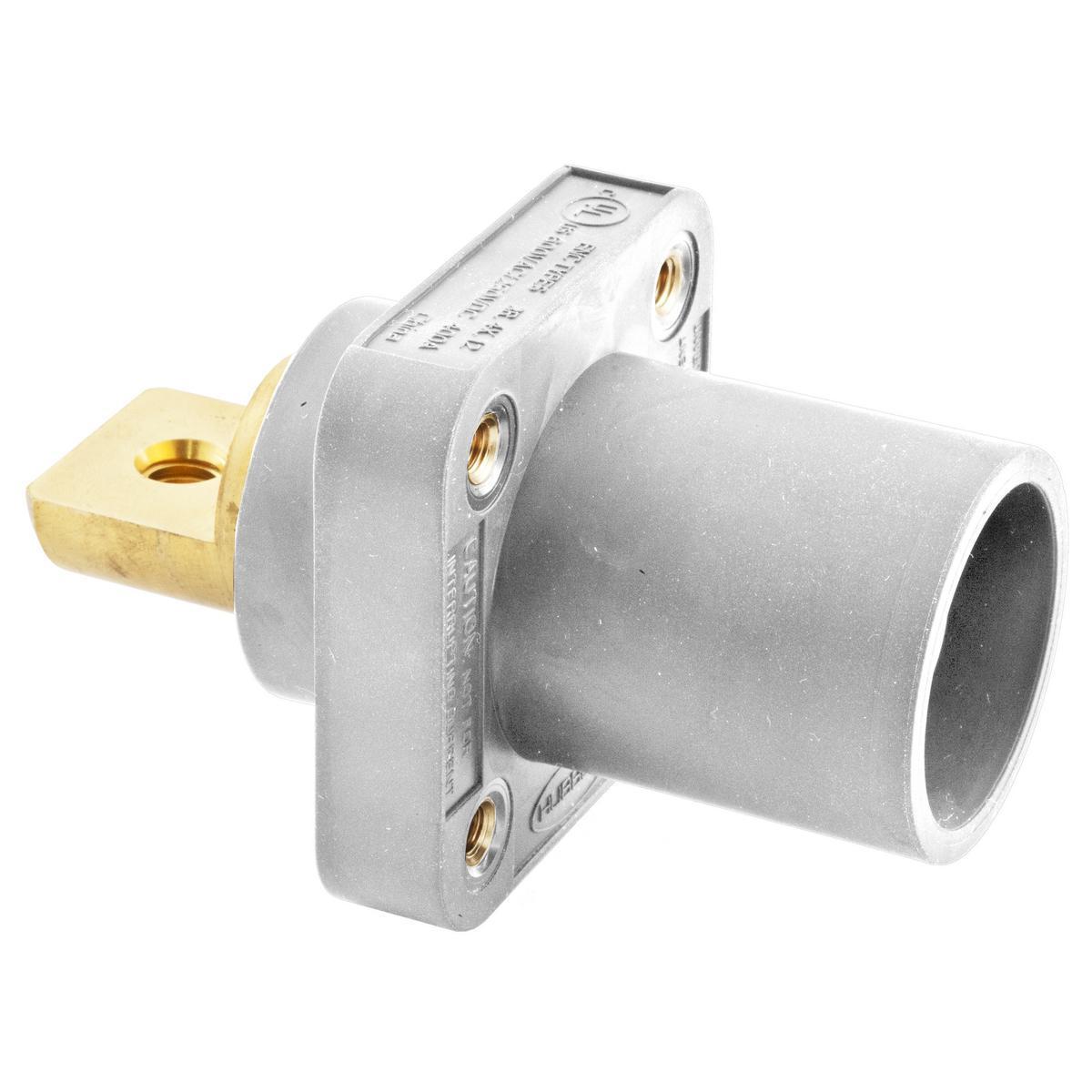

- Hubbell Wiring Device-Kellems Single Pole Bus Receptacle, 1-Pole Heavy Duty Industrial Grade Male Standard, Series: 16 Series, 600 V AC/250 V DC, 400 A, 4 to 4/0 AWG Wire, Screw Terminal Connection, Brass Contact, Thermoplastic Housing Material, Threaded Mounting, Specifications: 1 ph, 1-Pin, 1-Flange, 1-Conductor, 240000 W, 5/16-18 UNC-2B Threaded Hole, 90 deg C, White, 3.57 in L x 2.2 in W x 2.2 in H
HBLMRBW Application
For attachment plugs and receptacles, single pin and sleeve devices intended for theatre, stage and studio, high ampacity connections, dry locations, industrial and indoor applicationsHBLMRBW Item Features
- Insulgrip style housing for superior gripping conforms to the users hand making it easy to connect and disconnect, even with gloves on
- Easily identifiable cable cut-off points for secure fit allows you to easily customize and cut the housing to the required/correct cable size
- Rounded corners reduce the possibility of catching or snagging on structures or equipment
- Recessed mounting screw minimizes screwdriver slippage
- With lock indicator symbol making mating clear and simple, devices can lock 180 deg to prevent unintended disconnects
- Provides high contact pressure and vibration resistant connection, which helps reduce operating temperatures and extends product life
- Special screw thread requires fewer turns than most competitors and reduces the risk of a conductive screw being substituted
- Extra long non-conductive inner sleeve reduces force required to install housing over contacts, easier to rotate contact in body for installing retaining screw
- Engineered body design makes installation simple with no need for additional tools and the non-metallic retaining screw helps to make operation safe for all involved
- Strip gauge molded into every plug and receptacle housing, simplifies installation and saves time
- Indoor dry unless protected by additional means
HBLMRBW Standards
CSA 22.2. 0.17|cULus Listed|UL 498|UL 1691|UL 94|ANSI/NFPA 70|NEC CertifiedSKU #2446464Part Number #HBLMRBWUNSPSC39121406UPC00783585454665
Image provided may only be a representation of final product and may include optional equipment
