Part Number # IG5252GY
SKU # 2460664
IG5252GY
Hubbell Wiring Devices IG5252GY
Part Number # IG5252GY
SKU # 2460664
$12.86 / Each
Typical price:$16.65 / Each
Hubbell IG5252GY Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | IG5252GY |
| SKU #: | 2460664 |
| Amperage Rating: | 15 A |
| Dimensions: | 3.28 x 1.57 x 1.07 in |
| Horsepower: | 1/2 hp |
| NEMA Rating: | 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Back and Side Wire/Screw |
| Type: | 1-Phase Heavy Duty Duplex Isolated Grounding Standard Traditional Screw Mount |
| Country of origin: | CN |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585146737 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$12.86 / Each
Typical price:$16.65 / Each
Quantity:
- Hubbell Wiring Device-Kellems Hubbell-PRO SpikeShield, IG5252GY, Straight Blade Receptacle, 1-Phase Heavy Duty Duplex Isolated Grounding Standard Traditional Screw Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Nylon, Gray, 3.28 x 1.57 x 1.07 in Dimensions
IG5252GY Application
Dry Indoor ApplicationsIG5252GY Item Features
- Slender/compact design
- Smooth Face
- Triangle marking on face indicates isolated ground
IG5252GY Standards
CSA C22.2 No. 42/285|RoHS Compliant|Federal Specification W-C-596|NEMA WD1/WD5|UL 498 File No. E2186SKU #2460664Part Number #IG5252GYUNSPSC39121406UPC00783585146737

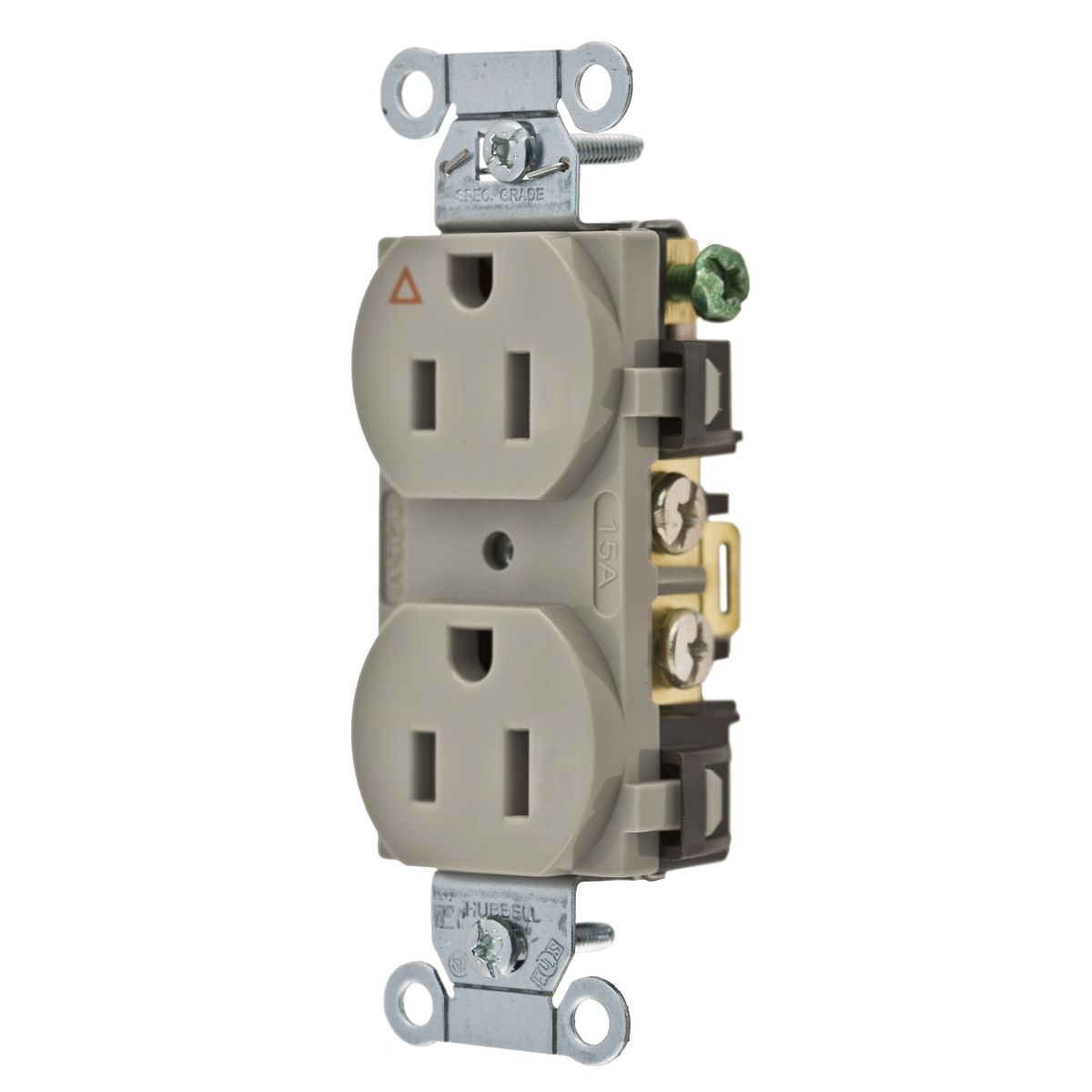

Image provided may only be a representation of final product and may include optional equipment
