Brand: Hubbell

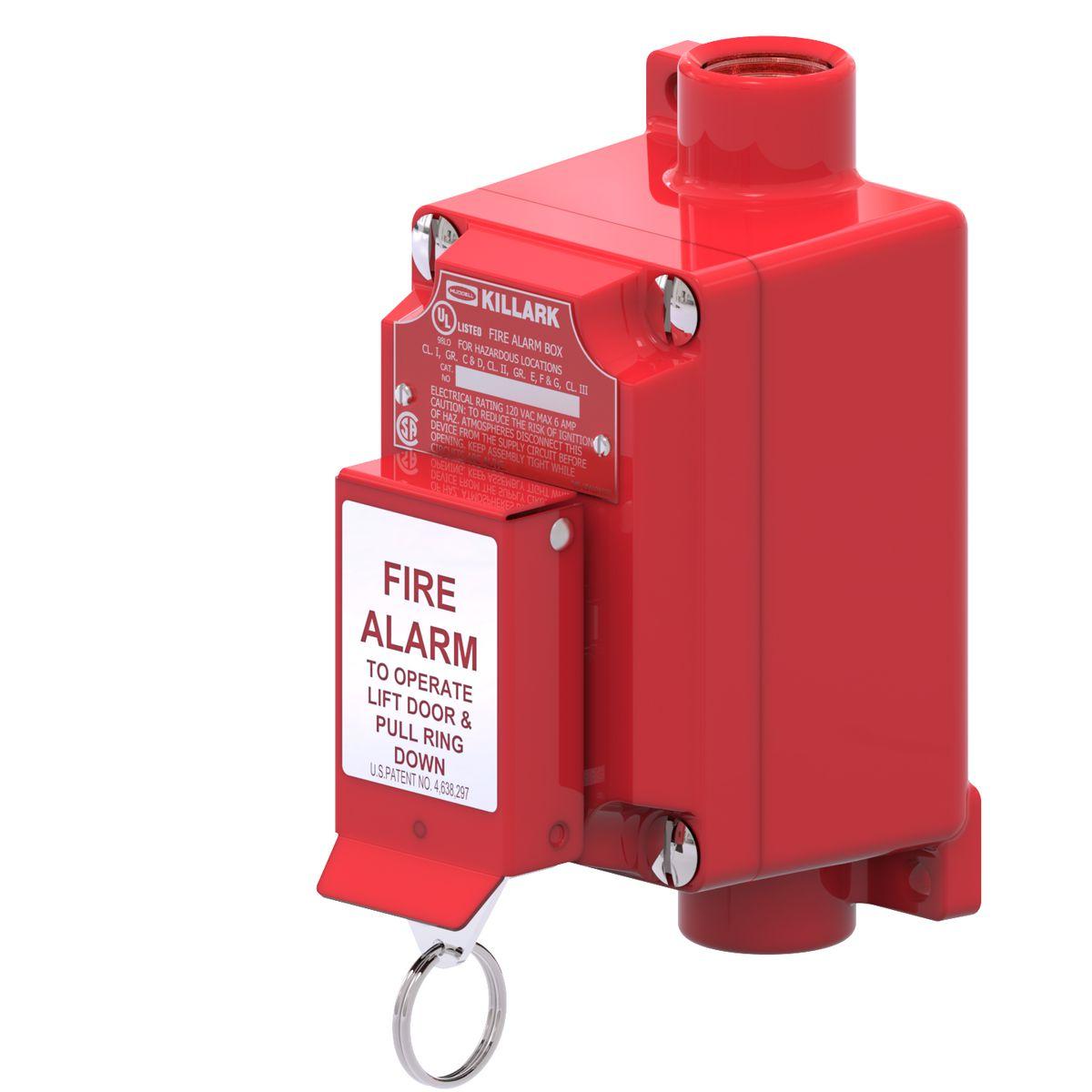

Hubbell XAL-53 Fire Alarm Station
Part Number # XAL-53
SKU # 2241041
$1451.15 / Each
Hubbell XAL-53 Key Features
Brand: Hubbell
Part Number # XAL-53
SKU #2241041
Amperage Rating: 10/2.5, 10/2.5 A
Finish: Epoxy Coated
Series: XAL
Specifications: Pull Ring Actuator, 1NO-1NC Contact
Temperature Rating (Degrees F): -50 to 40 deg C
Voltage Rating: 600, 600 VAC/VDC
Color: Red
Country of origin: US
Depth: 4-9/64, 4-9/64 in
Height: 6-27/64, 6-27/64 in
Material: Aluminum Alloy
Width: 3-7/64, 3-7/64 in
Manufacturer Name: Hubbell
UNSPSC: 39122216
UPC: 00783936880389
$1451.15 / Each
Hubbell XAL-53 Fire Alarm Station
Brand: Hubbell
Part Number: XAL-53
Killark Fire Alarm Station, Series: XAL, 600 VAC/VDC, 10/2.5 A, 6-27/64 in Height, 3-7/64 in Width, 4-9/64 in Depth, Specifications: Pull Ring Actuator, 1NO-1NC Contact, Specifications Met: UL E50498, cUL CE69, CSA LR31085, Aluminum Alloy, Epoxy Coated, Red
Additional Description: KILL-XAL-53 CNTRL STA, PULL RING 1NO/1NC
Catalog Description: XAL Series - Aluminum Feed-Thru Fire Alarm Station With Pull-Ring Activation - Hub Size 3/4 Inch Npt - 1NO/1NC Contact Rating
XAL-53 Application
For hazardous areas due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings, installation at petroleum refineries, chemical and petrochemical plants, storage areas and other processing facilities where hazardous substances are handled or stored, areas where emergency control of fire alarm or signal circuits is requiredXAL-53 Includes
Bilingual Nameplates and Internal Ground ScrewXAL-53 Item Features
- Enclosure is made of copper-free aluminum alloy
- The alarm station is activated by lifting the front cover and pulling down ring
- Operator is reset by depressing shaft and returning plate to original position
- 7200 VA make, 720 VA break, 10 A continuous at 600 VAC 2.5 A continuous at 600 VDC contact rating
- Conduit openings are 3 gang/4 in NPT feed through
- Red, textured powder epoxy paint finish is standard on box and cover and provides high-visibility for alarm station
- This quick, easy-to use two-step process prevents unintentional operation
XAL-53 Standards
CSA File No. LR31085|ULC CE69|UL File No. E50498, Class I, Divisions 1 and 2, Groups C, D, Class I, Zones 1 and 2, Groups IIB, IIA, Class II, Divisions 1 and 2, Groups E, F, G, Class III, Divisions 1 and 2SKU #2241041Part Number #XAL-53UNSPSC39122216UPC00783936880389
