Brand: Hubbell

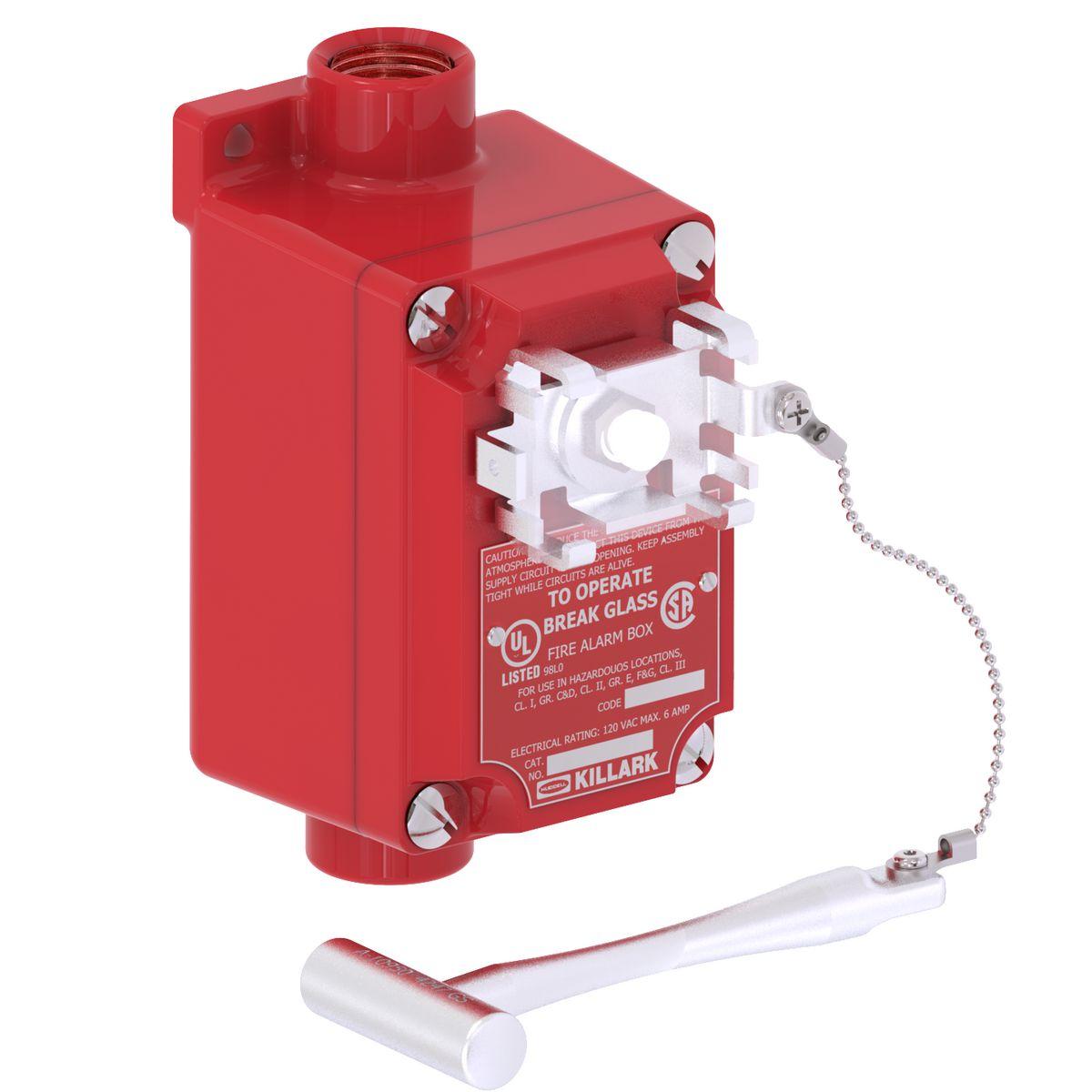

Hubbell XAS-53 Fire Alarm Station
Part Number # XAS-53
SKU # 2307461
$1877.61 / Each
Hubbell XAS-53 Key Features
Brand: Hubbell
Part Number # XAS-53
SKU #2307461
Actuator: Break Glass
Amperage Rating: 10, 10 A
Contact Configuration: 1NC-1NO, 1NO-1NC
Contact Rating: 10 A at 600 VAC, 2.5 A at 600 VDC
Dimensions: 6-27/64 in H x 3-7/64 in W x 4-1/16 in D
Finish: Textured Powder Epoxy Paint
NEMA Rating: NEMA 7/9
Number of Poles: 1
Operating Temperature: -50 to 40, -50 to 40 deg C
Series: XAS Series
Voltage Rating: 600, 600 VAC
Color: Red
Connection type: Feed-Through
Country of origin: US
Material: Aluminum
Manufacturer Name: Hubbell
UNSPSC: 39122216
UPC: 00783936880396
$1877.61 / Each
Hubbell XAS-53 Fire Alarm Station
Brand: Hubbell
Part Number: XAS-53
Killark Fire Alarm Station, Series: XAS Series, 600 VAC, 10 A, 1 Pole, 1NC-1NO Contact Configuration, 10 A at 600 VAC, 2.5 A at 600 VDC Contact, Break Glass Actuator, Feed-Through Connection, NEMA 7/9 NEMA Rating, -50 to 40 deg C Operating, Aluminum, Textured Powder Epoxy Paint, Red, 6-27/64 in H x 3-7/64 in W x 4-1/16 in D Dimensions
Additional Description: KILL-XAS-53 FIRE ALARM BREAK GLASS TYPE
Catalog Description: XAS Series - Aluminum Feed-Thru Fire Alarm Station With Breaking-Glass Activation - Hub Size 3/4 Inch Npt - 1NO/1NC Contact Rating
XAS-53 Application
For hazardous areas due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fibers or flyings, petroleum refineries, chemical and petrochemical plants, storage areas and other processing facilities where hazardous substances are handled or stored and areas where emergency control of fire alarm or signal circuits is requiredXAS-53 Includes
Bilingual Nameplates and Internal Ground ScrewXAS-53 Item Features
- Enclosure is made of copper-free aluminum alloy
- Conduit openings are 3/4 in NPT feed through
- Red, textured powder epoxy paint finish is standard on box and cover and provides high visibility for alarm station
- Breaking glass with hammer provided activates alarm
- Reset by replacing glass
- 7200 VA make, 720 VA break, 10 A continuous at 600 VAC 2.5 A continuous at 600 VDC contact rating
XAS-53 Standards
CSA File No. LR31085|ULC CE69|UL File No. E50498|Class I Divisions 1 and 2 Groups C, D, Class I Zones 1 and 2 Groups IIB, IIA, Class II Divisions 1 and 2 Groups E, F, G, Class III Divisions 1 and 2SKU #2307461Part Number #XAS-53UNSPSC39122216UPC00783936880396
