Part Number # XCS-0A15
SKU # 2383776
XCS-0A15

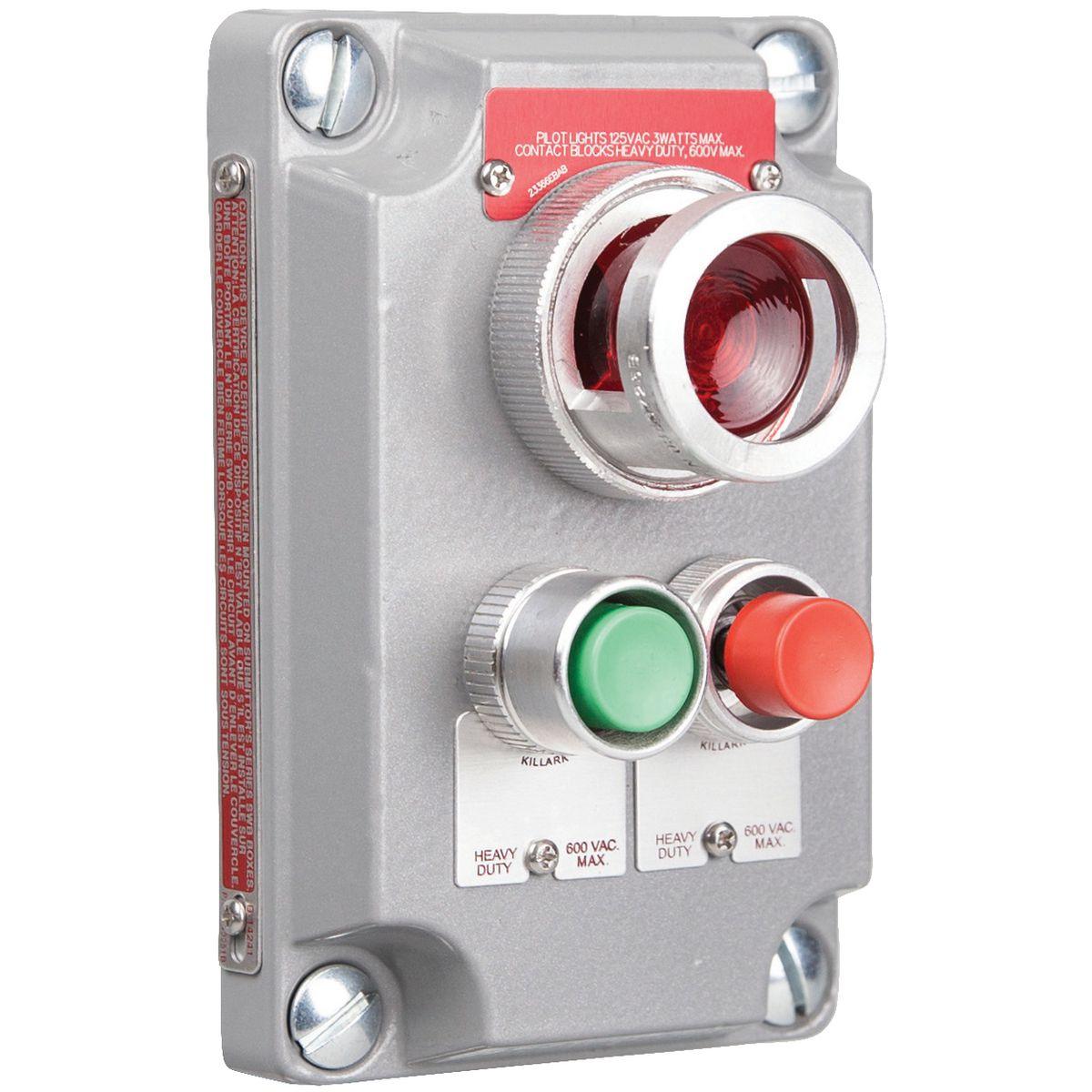

Hubbell XCS-0A15 Control Station Cover Assembly
Part Number # XCS-0A15
SKU # 2383776
Hubbell XCS-0A15 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | XCS-0A15 |
| SKU #: | 2383776 |
| Actuator: | Mini Pushbutton/Pilot Light |
| Amperage Rating: | 10, 10 A |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Dimensions: | 4-5/8 in H x 3 in W x 1-1/16 in D |
| Indicator Type: | LED Pilot Light |
| Legend: | START/STOP, STOP/START |
| NEMA Rating: | NEMA 7/9 |
| Number of Operators: | 3 |
| Number of Poles: | 2 |
| Operating Temperature: | -4 to 104, -4 to 104 deg F |
| Series: | XCS Series |
| Wattage: | 3, 3 W |
| Country of origin: | US |
| Material: | Aluminum |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39122216 |
| UPC: | 00783936890043 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell XCS-0A15 Control Station Cover Assembly
Brand: Hubbell
Part Number: XCS-0A15
Killark Control Station Cover Assembly, Series: XCS Series, 120/600 VAC, 10 A, 3 W Wattage, 2 Pole, 3 Operators, 1NC-1NO Contact Configuration, Momentary Contact Mode, Legend: STOP/START, Mini Pushbutton/Pilot Light Actuator, LED Pilot Light Indicator, NEMA 7/9 NEMA Rating, -4 to 104 deg F Operating, Aluminum, 4-5/8 in H x 3 in W x 1-1/16 in D Dimensions
Additional Description: KILL-XCS-0A15 CLI RED-GRNPB&110V RD PL CV(CS
Catalog Description: XCS Series- Cover with Device - Momentary Contact Two Mini Red-Green Push Buttons And Red Pilot Light
XCS-0A15 Application
For petroleum refineries, chemical and petrochemical plants and other processing or storage facilities where similar hazards existXCS-0A15 Item Features
- Ground flange joint between bolted cover and box provide required flame path
- Push button, selector switches and pilot light operator bodies are copper-free aluminum
XCS-0A15 Standards
UL Listed|CSA Certified|UL File No. E53360|CSA File No. LR11714|Class I Zones 1 and 2 Groups IIB, IIA|Class II Divisions 1 and 2 Groups E, F, G|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2383776Part Number #XCS-0A15UNSPSC39122216UPC00783936890043
Image provided may only be a representation of final product and may include optional equipment
