Part Number # XCS-0B24-GL
SKU # 2237473
Image Disclaimers Message
XCS-0B24-GL

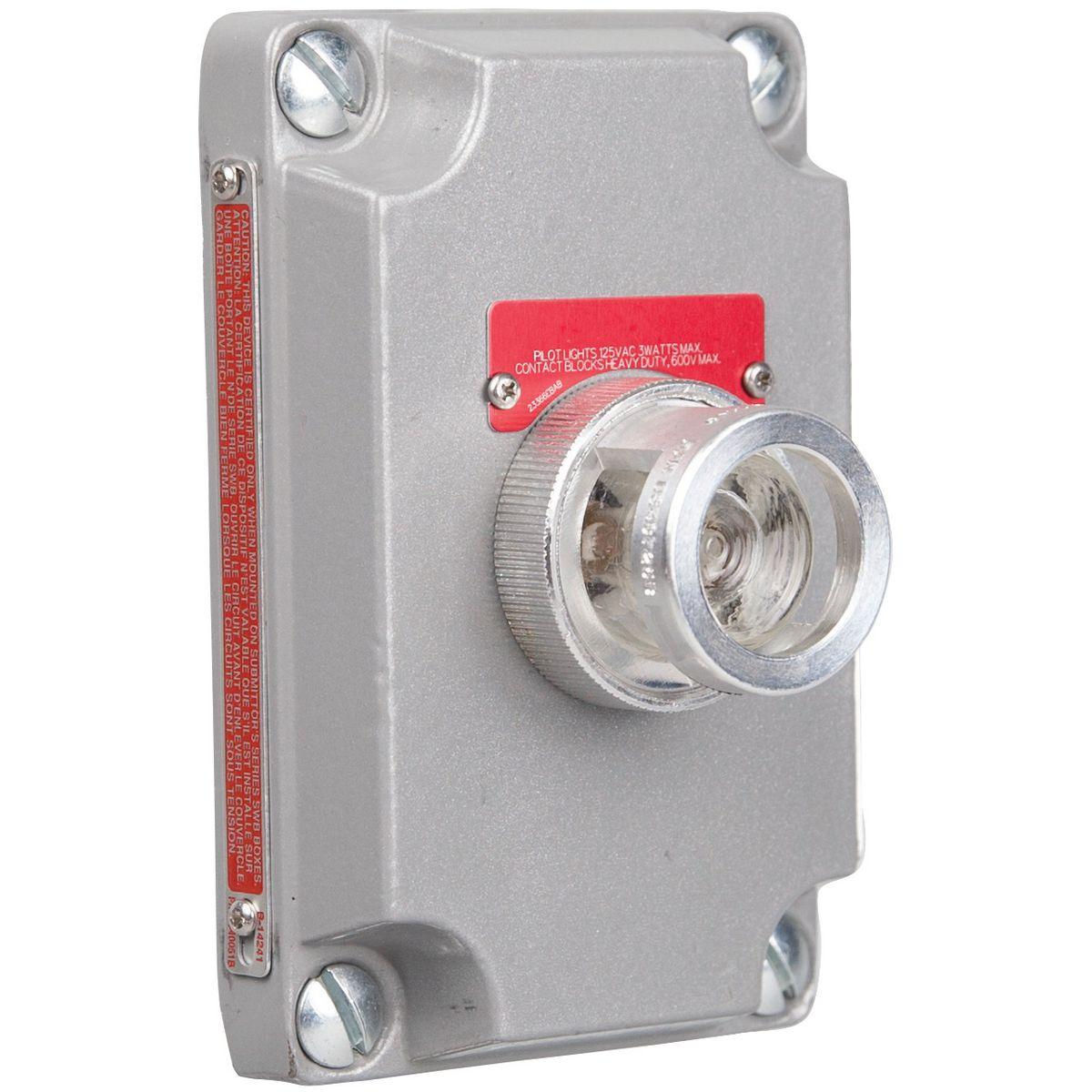

Hubbell XCS-0B24-GL Pilot Light Cover Assembly
Part Number # XCS-0B24-GL
SKU # 2237473
$403.79 / Each
Hubbell XCS-0B24-GL Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | XCS-0B24-GL |
| SKU #: | 2237473 |
| Actuator: | Pilot Light |
| Amperage Rating: | 0.025, 0.025 A |
| Dimensions: | 4-5/8 in H x 3 in W x 1-1/16 in D |
| NEMA Rating: | NEMA 7CD/9EFG |
| Series: | XCS Series |
| Wattage: | 3, 3 W |
| Color: | Green |
| Country of origin: | US |
| Material: | Copper-Free Aluminum Alloy |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39122216 |
| UPC: | 00783936890296 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$403.79 / Each
Quantity:
- Killark, XCS-0B24-GL, Pilot Light Cover Assembly, Series: XCS Series, 120 V AC, 0.025 A, 3 W Wattage, 1 Pilot Lights, Pilot Light Actuator, NEMA 7CD/9EFG NEMA Rating, Copper-Free Aluminum Alloy, Green, 4-5/8 in H x 3 in W x 1-1/16 in D Dimensions
XCS-0B24-GL Application
For hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fiber or flyings and for installations at petroleum refineries, chemical and petrochemical plants and other processing or storage facilities where similar hazards exist and use in conjunction with magnetic starters or contactors for remote control of motorsXCS-0B24-GL Item Features
- Ground flange joint between bolted cover and box provide required flame path
- Push button, selector switches and pilot light operator bodies are copper-free aluminum
XCS-0B24-GL Standards
CSA File No. LR11714|UL File No. E53360|Class I Zones 1 and 2 Groups IIB, IIA|Class II Divisions 1 and 2 Groups E, F, GSKU #2237473Part Number #XCS-0B24-GLUNSPSC39122216UPC00783936890296
