$2829.50/EA

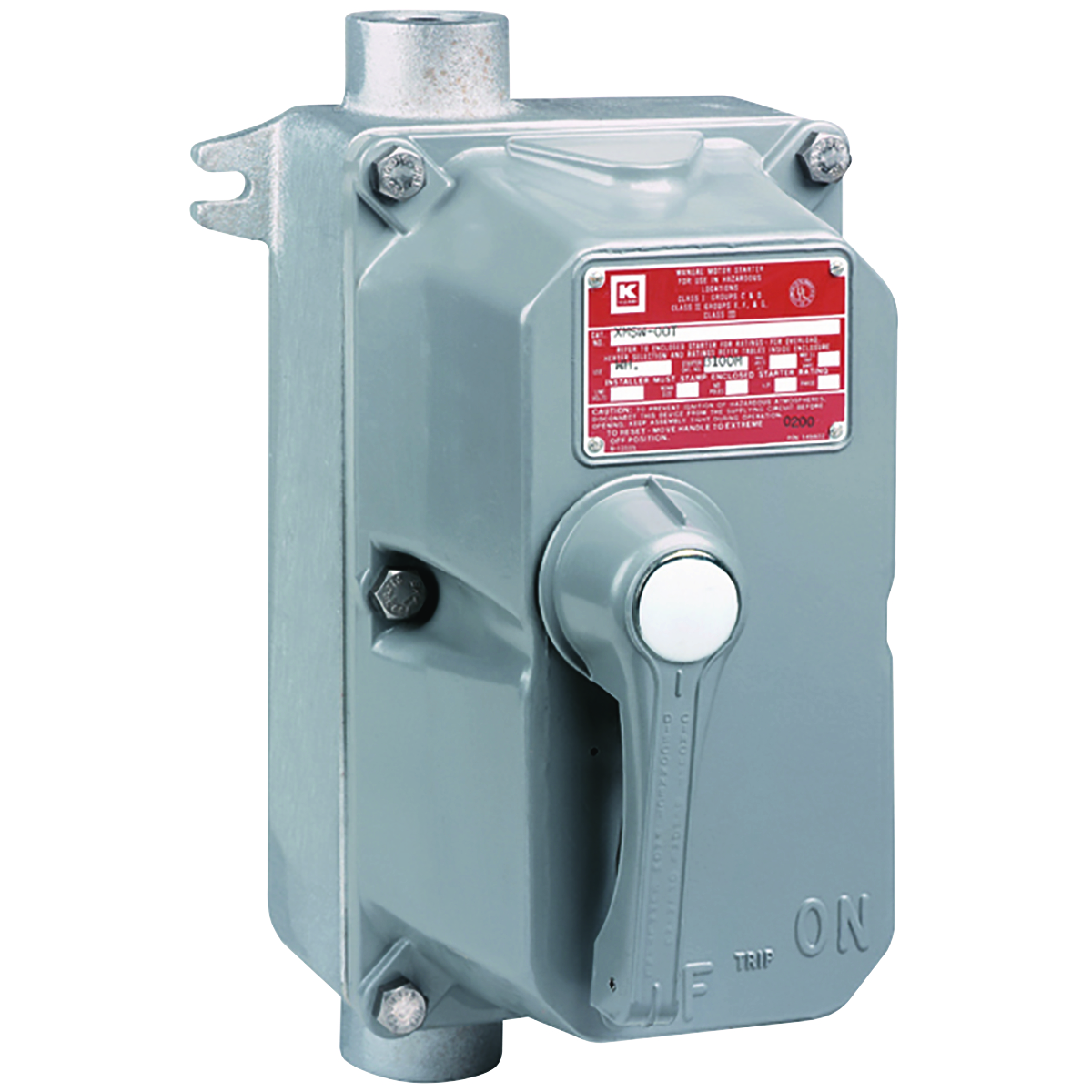

- Rectangular bolted cover design provides for attractive, compact, uniform installations
- Cast ON, OFF, TRIPPED markings on cover align with external handle and provide clear indication of enclosed starter condition
- External handle is a vault type with standard provisions for locking in the OFF position with up to three pad-locks
- Provision for locking in ON position is available as factory modification (add suffix SU-40 to catalog number)
- Two cast 1 in NPT conduit hubs with integral pipe stop, one top and one bottom, are standard on all assemblies
Specifications
Brand: Hubbell
Action: Non-Reversing
Dimensions: 6 in L x 8-5/16 in W x 11-7/8 in H
Enclosure Type: NEMA 3R/7(C,D) 9(E,F,G)
Motor Power: 10 hp
Number of Poles: 3
Phase: 3 ph
Reset Type: Handle
Series: XMSW
Voltage Rating: 600 VAC
Country of origin: US
Material: Aluminum Alloy
Manufacturer Name: Hubbell
UNSPSC: 39121521
UPC: 00783936912585
Item FeaturesIndoor/Outdoor, Provides Manual Starting and Stopping of Small AC or DC Motors and Hazardous Location
Item Features(1) 1 in NPT Cast Conduit Hubs with Integral Pipe Stop, (1) Top and (1) Bottom
Item Features
Item FeaturesClass I, Divisions 1 and 2, Groups C, D|Class I, Zones 1 and 2, Groups IIB, IIA|Class II, Divisions 1 and 2, Groups E, F, G|Class III, Divisions 1 and 2|UL File E12379|PROP65: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
