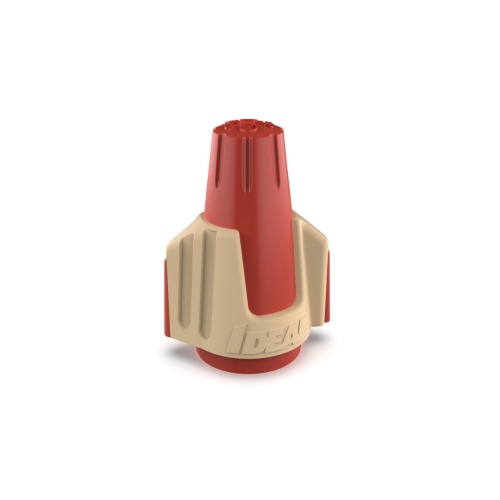

IDEAL 30-244J Twister Pro Wire Connector
Image Disclaimers Message
IDEAL 30-244J Twister Pro Wire Connector
IDEAL 30-244J Twister Pro Wire Connector
Part #:30-244J
SKU #: 2388201
Key Features
Part #:30-244J
SKU #: 2388201
Brand: IDEAL
Series: 344, 344®
Specifications: 2 to 4 Conductors, 18 to 2 AWG Minimum, 10 to 4 AWG Maximum Conductor Combination Size
Spring Type: Square Wire
Temperature Rating (Degrees F): 221 deg F
Type: Fire-Retardant
- Widest red/yellow wire range in the industry
- SureGrip over molding provides better grip for improved leverage, more torque and faster connections
- Comfortable swept wings designed to help reduce hand fatigue
- Expanding square wire spring provides a secure connection every time
- For tough environmental conditions
- 1000 V maximum in fixtures and signs
- Twister Wire Connectors have earned a solid reputation as the most technically advanced wire connector available
- These superior wire connectors are designed from top to bottom with features to provide more comfort and less fatigue to professional electricians
- With swept wings and an expanding, live-action spring, the Twister supports a wide range of common wiring configurations with comfort and ease, even on the toughest combinations like solid-to-stranded
- The copolymer shell expands for smooth, progressive tightening ensuring dependable connections
- The Twister also features a hexagonal top with a ribbed cap for fast fingertip starts as well as nut driver installation
- The tough, flame-retardant shell withstands the most rugged environmental extremes while the deep skirt provides maximum dielectric strength
IDEAL 30-244J Twister Pro Wire Connector
IDEAL TWISTER Pro Wire Connector, Fire-Retardant, Series: 344 , Swept Wing/Twist On Shell Style, Square Wire Spring, Solid/Stranded Copper Wire, 22 to 8 AWG Wire, 600 VAC, Specifications: 2 to 4 Conductors, 18 to 2 AWG Minimum, 10 to 4 AWG Maximum Conductor Combination Size, 221 deg F, Polypropylene, Red/Tan
Additional Description: IDL -30-244J TWISTER PRO 344 RED TAN,250 JR
Catalog Description: IDEAL, Wire Connector, Twister PRO, Conductor Range: 22 - 8 AWG, 2/18 AWG Min, 4/10 AWG MAX, Number Of Conductors: 2 to 4, Material: Flame-retardant Polypropelene, Color: Red/Tan, Voltage Rating: 600 V, Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 DEG F), Wire Type: Cu/Cu, Model Number: 344
