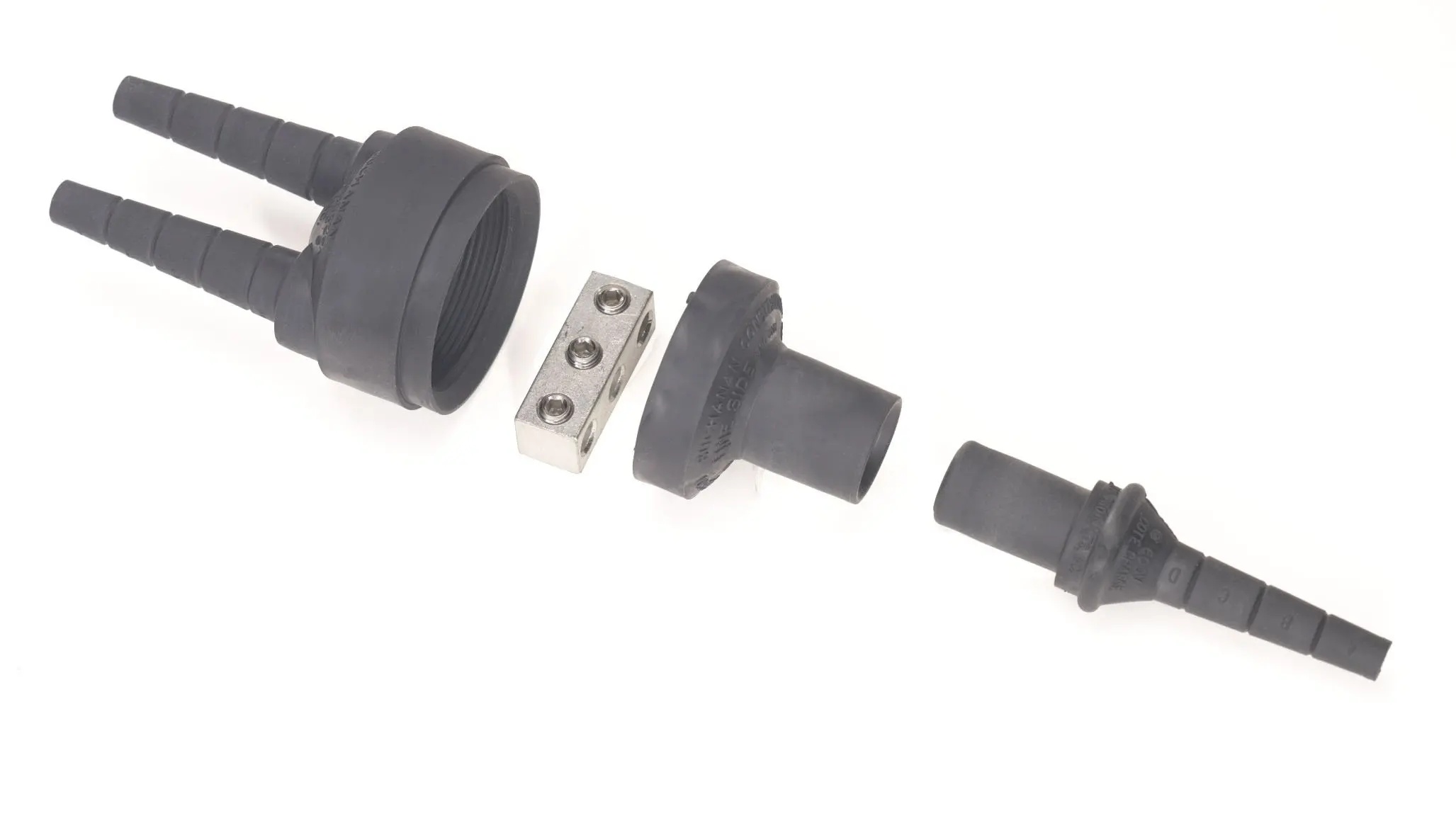

IDEAL 84S-ADB1 Breakaway Streetlight Connector Kit
Part Number # 84S-ADB1
SKU # 2197074
IDEAL 84S-ADB1 Key Features
| Brand: | IDEAL |
|---|---|
| Part Number # : | 84S-ADB1 |
| SKU #: | 2197074 |
| Conductor Size: | 10 to 2, 10 to 2 AWG |
| Connector Type: | Crimp |
| Temperature Rating (Degrees F): | 75, 75 deg C |
| Type: | Non Fused Y-Tap |
| Cable type: | Aluminum/Copper, Copper/Aluminum |
| Country of origin: | US |
| Manufacturer Name: | Ideal Industries |
| UNSPSC: | 39121446 |
| UPC: | 00781789110103 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
IDEAL 84S-ADB1 Breakaway Streetlight Connector Kit
Brand: IDEAL
Part Number: 84S-ADB1
BUCHANAN Breakaway Streetlight Connector Kit, Non Fused Y-Tap, 600 VAC, Copper/Aluminum Cable, 10 to 2 AWG Conductor, 0.12 to 0.43/0.155 to 0.43 in Insulation, Crimp Connector, 75 deg C
Additional Description: IDL -84S-ADB1 LV KIT
Catalog Description: Buchanan, Y-Splice Kit, Y-Splice Kits, Voltage Rating: 600 V, Amperage Rating: 70 AMP, Line Side Cable Size: 10, 8, 6, 4, 2 AWG, Line Side Crimp Type: Copper or Aluminum, Line Side Insulation Diameter: .155 - .430 IN, Load Side Cable Size: 10 - 2 AWG, Load Side Crimp Type: Copper or Aluminum, Load Side Insulation Diameter: .120 - .430 IN
84S-ADB1 Application
Highway Lighting, Area Lighting, Flood Lighting and Power Distribution Circuit Applications84S-ADB1 Item Features
- Safe and easy installation in five minutes or less
- No special equipment necessary " requires only a knife, wire stripper, hex tool and crimp tool
- Safely separates upon impact without breaking wires
- Spring loaded contacts compensate for thermal expansion to maintain integrity of connection (breakaway models)
84S-ADB1 Standards
RoHS CompliantSKU #2197074Part Number #84S-ADB1UNSPSC39121446UPC00781789110103
Image provided may only be a representation of final product and may include optional equipment
