Part Number # BTC4/0-10
SKU # 2433092
BTC4/0-10
IDEAL BTC4/0-10 Wiring Taps
Part Number # BTC4/0-10
SKU # 2433092
IDEAL BTC4/0-10 Key Features
| Brand: | IDEAL |
|---|---|
| Part Number # : | BTC4/0-10 |
| SKU #: | 2433092 |
| Conductor Size: | 3 to 4/0 AWG Main, 10 to 2 AWG Cu Solid/Stranded Tap, 8 to 2 AWG Stranded |
| Conductor Type: | Solid/Stranded |
| Dimensions: | 1.8 in W x 2.2 in D x 3.1 in H |
| Specifications: | 1-Bolt, 2.2 in-lb Torque, 1/2 in Socket |
| Temperature Rating (Degrees F): | 90 deg C |
| Type: | Insulation-Piercing |
| Country of origin: | US |
| Manufacturer Name: | Ideal Industries |
| UNSPSC: | 39121427 |
| UPC: | 00781789454450 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
IDEAL BTC4/0-10 Wiring Taps
Brand: IDEAL
Part Number: BTC4/0-10
BUCHANAN B-TAP® Piercing Insulated Tap Connector, Insulation-Piercing, Solid/Stranded Conductor, 3 to 4/0 AWG Main, 10 to 2 AWG Cu Solid/Stranded Tap, 8 to 2 AWG Stranded Conductor, 600 VAC, Specifications: 1-Bolt, 2.2 in-lb Torque, 1/2 in Socket, 90 deg C, 1.8 in W x 2.2 in D x 3.1 in H Dimensions
Additional Description: IDL -BTC4/0-10 BTAP CONNECTOR
Catalog Description: Buchanan, Tap Connector, B-TAP, Insulation-Piercing, Conductor Size: 4/0 - 3 AWG Main, 2 - 10 AWG Cu Solid/Stranded Tap, 2 - 8 AWG Al Stranded, Tap Size: 2-10 AWG, Voltage Rating: 600 V, Temperature Rating: 90 DEG C, Socket Size: 1/2 IN, Height: 3.100 IN, Depth: 1.800 IN, Torque: 2.200 IN-LB, Number Of Bolts: 1
BTC4/0-10 Item Features
- Breakaway torque nut snaps off when UL torque requirements are met
- Second nut remains for easy connector removal
- Self-insulated housing eliminates the need for tape
- Safely installs on energized systems
- Grease-filled end cap seals end of conductor for superior weather protection
- Grease-filled boots protect copper teeth from corrosion and prevent arcing
- Hardened copper teeth pierce insulation and bite into conductors
BTC4/0-10 Standards
CSA Certified|RoHS Compliant|UL ListedSKU #2433092Part Number #BTC4/0-10UNSPSC39121427UPC00781789454450

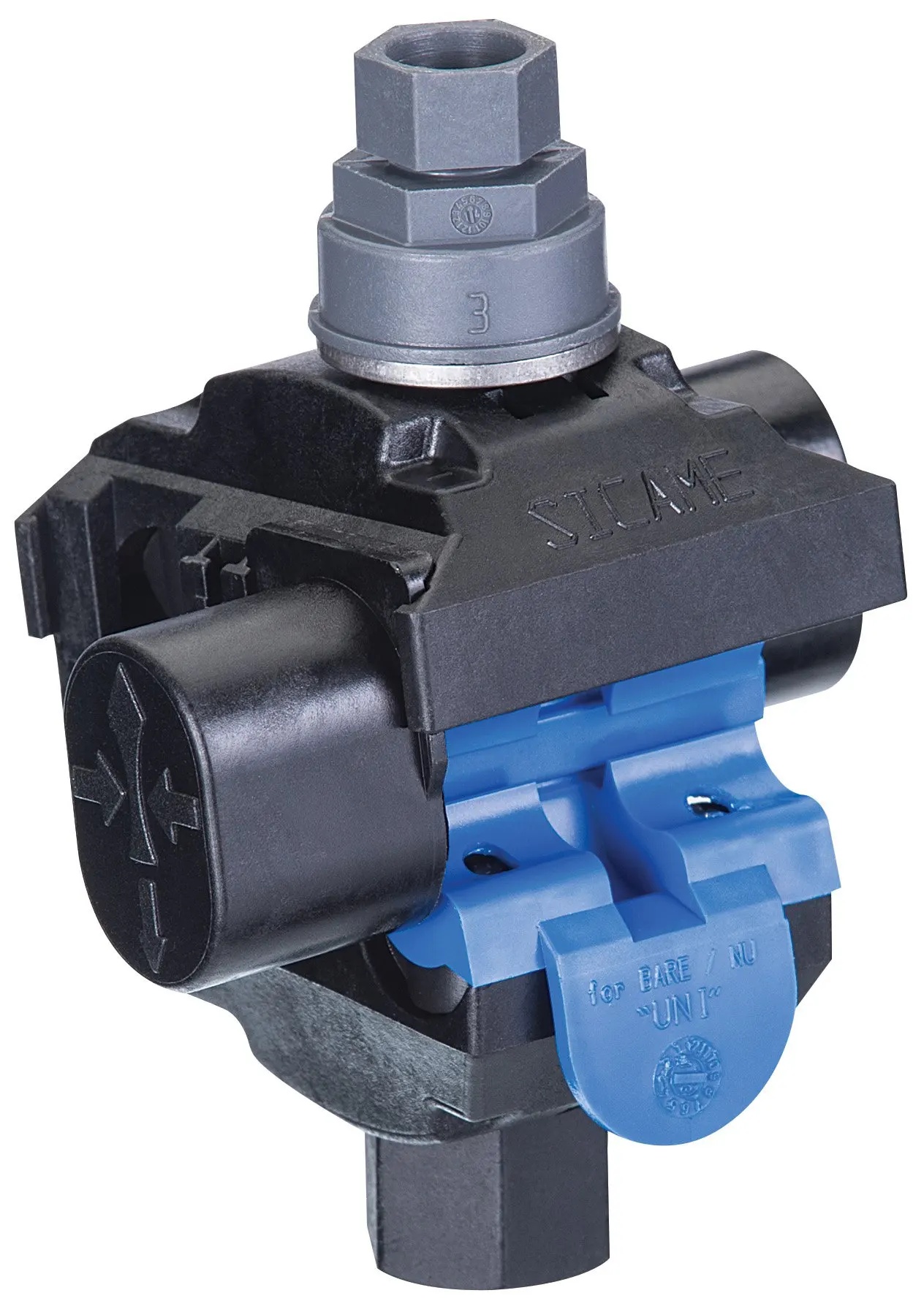

Image provided may only be a representation of final product and may include optional equipment
