Part Number # AH-2
SKU # 2215822
Image Disclaimers Message
AH-2

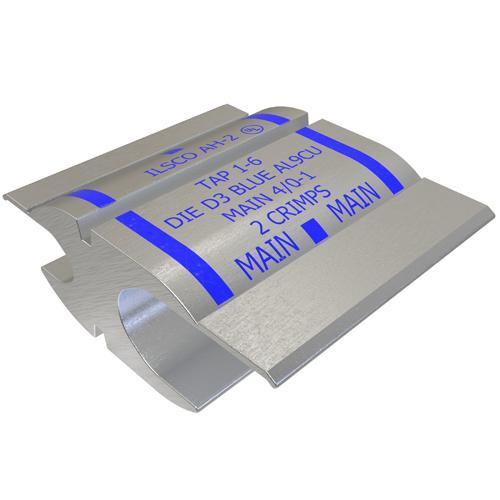

ILSCO AH-2 ILSCO ClearChoice Compression H-Tap Connector
Part Number # AH-2
SKU # 2215822
$635.69 / 25Each
Typical price:$673.83 / Each
Ilsco AH-2 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | AH-2 |
| SKU #: | 2215822 |
| Conductor Type: | Stranded Aluminum/Copper |
| Dimensions: | 1.88 in L x 2.31 in W |
| Specifications: | D3 Die Index, Blue Color |
| Tap Size: | 6 to 1, 6 to 1 AWG |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Type: | Type AH Dual Rated |
| Country of origin: | US |
| Material: | Aluminum |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121448 |
| UPC: | 00783669004021 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$635.69 / 25Each
Typical price:$673.83 / Each
Quantity:
ILSCO AH-2 ILSCO ClearChoice Compression H-Tap Connector
Brand: Ilsco
Part Number: AH-2
ILSCO ClearChoice Compression H-Tap Connector, Type AH Dual Rated, H Shape, 1 to 4/0 AWG Main/Run, 6 to 1 AWG Tap, 600 VAC, Stranded Aluminum/Copper Conductor, Specifications: D3 Die Index, Blue Color, 90 deg C, Aluminum, 1.88 in L x 2.31 in W Dimensions
Additional Description: ILSC-AH-2 AL CMP M 4/0-1 T 1-6 UL
Catalog Description: Aluminum Compression Tap, Main Range 4/0-1, Tap Range 1-6, Tin Plated, UL
AH-2 Application
Tap Connector ApplicationsAH-2 Item Features
- Pre-filled with oxide inhibitor provides corrosion resistance
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Color coded provides visual tooling recommendations for ILSCO or standard industry tools
- Dual-rated for aluminum and copper conductor
- Manufactured from high strength aluminum alloy provides maximum conductivity and excellent crimping characteristics
- Ensures reliability for copper or aluminum conductors
- Listed with ILSCO ND-58, ND-60 and ILC-15 tools
- Provides visual tooling recommendation for ILSCO or standard industry tools
- Application versatility
- Rated for 600 VAC
AH-2 Standards
UL 486A-B|UL 453G File No. E6207|ECCN EAR99|PROP65: Cancer - www.p65warnings.ca.govSKU #2215822Part Number #AH-2UNSPSC39121448UPC00783669004021
