Brand: Ilsco
AH-4

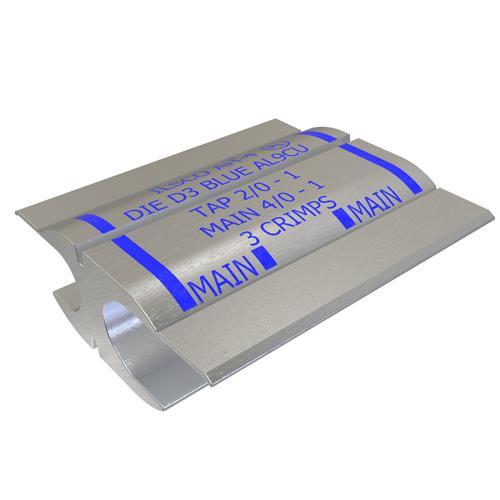

ILSCO AH-4 ILSCO ClearChoice Compression H-Tap Connector
Part Number # AH-4
SKU # 2215823
$642.45 / 25Each
Typical price:$681.00 / Each
Ilsco AH-4 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | AH-4 |
| SKU #: | 2215823 |
| Conductor Type: | Stranded Aluminum/Copper |
| Dimensions: | 2.5 in L x 2.38 in W |
| Specifications: | D3 Die Index |
| Tap Size: | 1 to 2/0, 1 to 2/0 AWG |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Type: | Type AH Dual Rated |
| Country of origin: | US |
| Material: | Aluminum |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121448 |
| UPC: | 00783669004069 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$642.45 / 25Each
Typical price:$681.00 / Each
Quantity:
ILSCO AH-4 ILSCO ClearChoice Compression H-Tap Connector
Brand: Ilsco
Part Number: AH-4
ILSCO ClearChoice Compression H-Tap Connector, Type AH Dual Rated, H, 1 to 4/0 AWG Main/Run Size, 1 to 2/0 AWG Tap, 600 VAC, Stranded Aluminum/Copper Conductor, D3 Die Index, 90 deg C, Aluminum, 2.5 in L x 2.38 in W
Additional Description: ILSC-AH-4 AL CMP M 4/0-1 T 2/0-1 UL
Catalog Description: Aluminum Compression Tap, Main Range 4/0-1, Tap Range 2/0-1, Tin Plated, UL
AH-4 Item Features
- Pre-filled with oxide inhibitor provides corrosion resistance
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 KV
- Color coded provides visual tooling recommendations for ILSCO or standard industry tools
- Dual rated for aluminum and copper conductor
- Manufactured from high strength aluminum alloy provides maximum conductivity and excellent crimping characteristics
- Ensures reliability for copper or aluminum conductors
- Listed with ILSCO ND-58, ND-60 and ILC-15 tools
- Provides visual recommendation for ILSCO or standard industry tools
- Application versatility
AH-4 Standards
UL 486A/486B/453G File No. E6207|PROP65: it is not known to contain any chemicals associated with this regulationSKU #2215823Part Number #AH-4UNSPSC39121448UPC00783669004069
