Part Number # ALNS-1/0-516
SKU # 2313396
ALNS-1/0-516

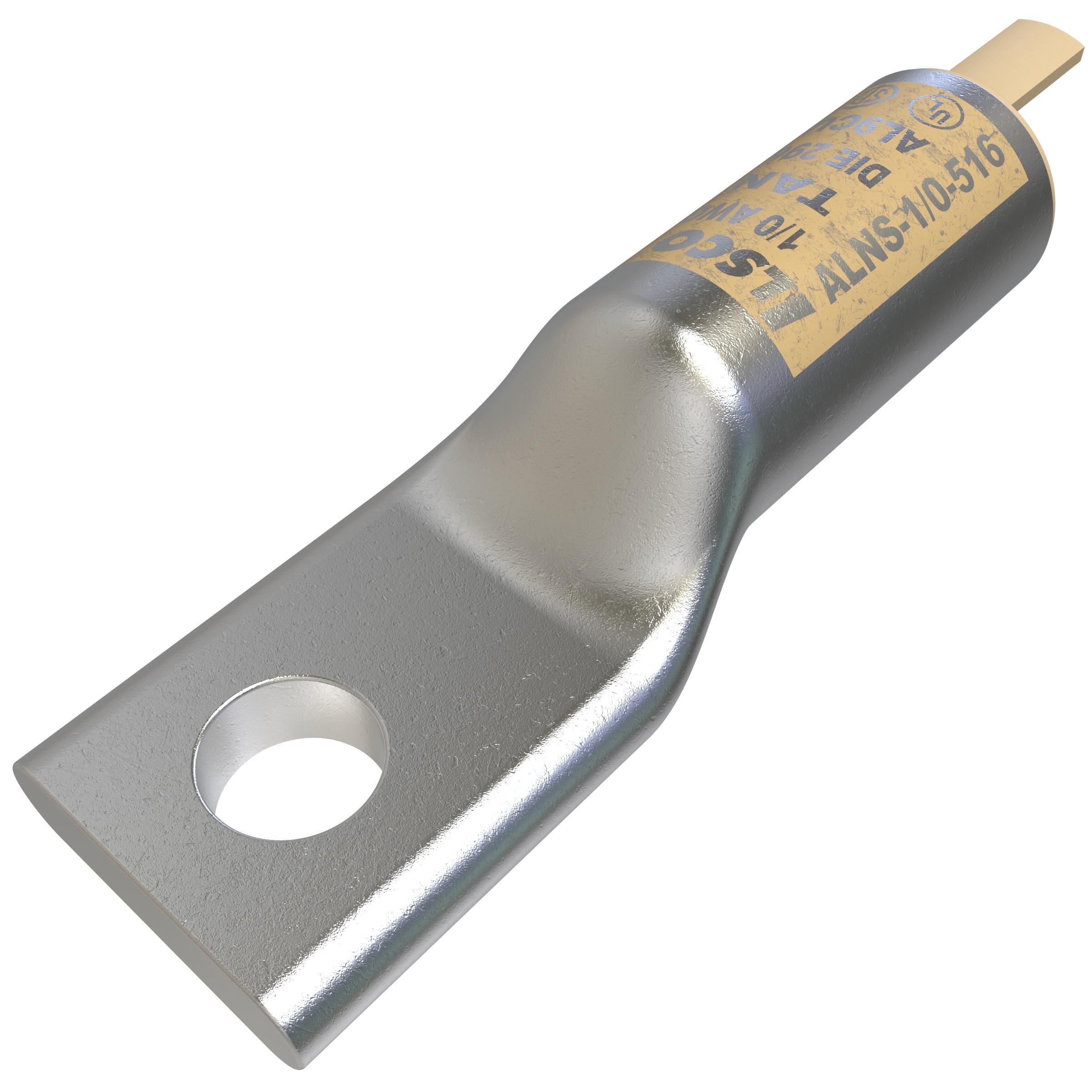

ILSCO ALNS-1/0-516 ILSCO SureCrimp Lug Compression Connector
Part Number # ALNS-1/0-516
SKU # 2313396
Ilsco ALNS-1/0-516 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | ALNS-1/0-516 |
| SKU #: | 2313396 |
| Barrel Size: | 1.07 in L |
| Conductor Size: | 1 to 1/0, 1 to 1/0 AWG |
| Dimensions: | 0.385 in ID x 0.599 in OD |
| Mounting Hole Size: | 0.343 in Dia |
| Overall Length: | 2.301, 2.301 in |
| Specifications: | 1.1325 in L Strip |
| Tongue Size: | 0.937 in L x 0.819 in W x 0.214 in THK |
| Type: | 1-Hole Type ALNS |
| UNSPSC: | 39121448 |
| UPC: | 00783669690361 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO ALNS-1/0-516 ILSCO SureCrimp Lug Compression Connector
Brand: Ilsco
Part Number: ALNS-1/0-516
ILSCO SureCrimp Lug Compression Connector, 1-Hole Type ALNS, Aluminum/Copper Conductor, 1 to 1/0 AWG Conductor, Die Code: 296, 5/16 in Stud, 0.937 in L x 0.819 in W x 0.214 in THK Tongue, 2.301 in Overall Length, Chamfered/Long Barrel, 1.07 in L Barrel, 1.1325 in L Strip, 90 deg C, 0.343 in Dia Mounting Hole, Aluminum Alloy, Tan, 0.385 in ID x 0.599 in OD
Additional Description: ILSC-ALNS-1/0-516 AL COMP 1/0 AWG 11/32 T UL CSA
Catalog Description: Surecrimp Aluminum Compression Lug, Conductor Size 1/0, 1 Hole, 5/16in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
ALNS-1/0-516 Application
Terminating ConnectorALNS-1/0-516 Item Features
- Manufactured from high strength aluminum alloy which offers maximum conductivity and excellent crimping characteristics
- Electro-tin plated for low contact resistance
- Chamfered entry for easy conductor insertion
- Color coded end cap identifies the proper compression die
- Roll marked barrel for easy identification and proper location of crimps
- Pre-filled with De-ox prevents oxide from forming
- Dual rated for copper and aluminum conductor
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Expanded wire size applicable when installed with specified dieless tools
- Without sight hole
ALNS-1/0-516 Standards
UL 486A/B/453G File No. E6207|CSA File No. LR29601SKU #2313396Part Number #ALNS-1/0-516UNSPSC39121448UPC00783669690361
Image provided may only be a representation of final product and may include optional equipment
