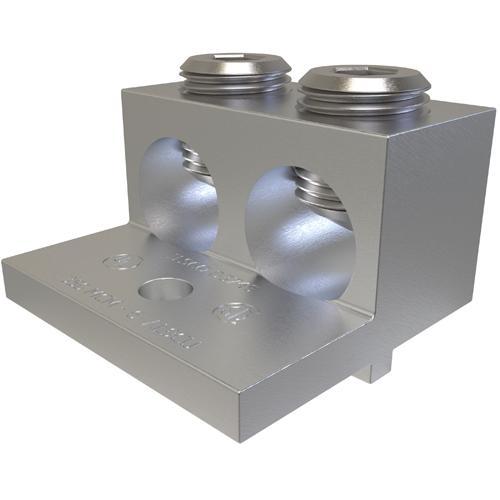

ILSCO ATAU-350-14 ILSCO ClearChoice Mechanical Lug
Part Number # ATAU-350-14
SKU # 2328914
$565.50 / 10Each
Ilsco ATAU-350-14 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | ATAU-350-14 |
| SKU #: | 2328914 |
| Conductor Size: | 6 AWG to 350 kcmil |
| Conductor Type: | Copper/Aluminum |
| Dimensions: | 1.906 in L x 1.938 in W x 1.125 in H |
| Finish: | Electro Tin Plated |
| Specifications: | 5/16 in Hex, 2-Conductor |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 1/4 in THK |
| Type: | Type ATAU Anti-Turn Dual Rated |
| Country of origin: | MX |
| Material: | Aluminum Alloy |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669992205 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$565.50 / 10Each
Quantity:
- ILSCO ClearChoice Mechanical Lug, Type ATAU Anti-Turn Dual Rated, Copper/Aluminum Conductor, 6 AWG to 350 kcmil Conductor, 1/4 in Stud, 1 Bolt Holes, 1/4 in THK Tongue, 35 kV, Specifications: 5/16 in Hex, 2-Conductor, 90 deg C, Aluminum Alloy, Electro Tin Plated, 1.906 in L x 1.938 in W x 1.125 in H Dimensions
ATAU-350-14 Item Features
- Manufactured from high strength aluminum alloy
- Electro tin plated provides low contact resistance
- Chamfered wire entry for easy conductor insertion
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- Anti-rotation bar reduces risk of movement at installation
ATAU-350-14 Standards
UL 453G/486A/B/File No. E6207|CSA File No. LR29601SKU #2328914Part Number #ATAU-350-14UNSPSC39121408UPC00783669992205
