Part Number # ATTA-350-38
SKU # 2367351
ATTA-350-38

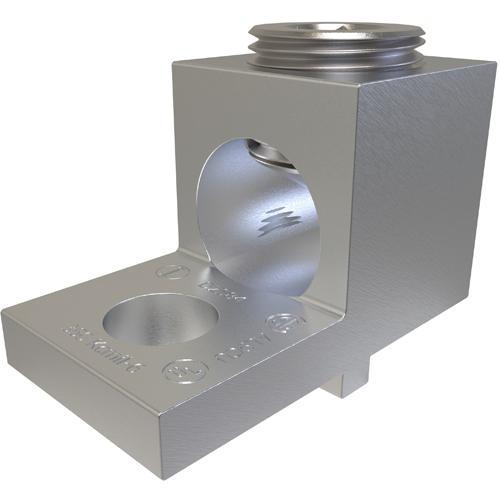

ILSCO ATTA-350-38 ILSCO ClearChoice Mechanical Lug
Part Number # ATTA-350-38
SKU # 2367351
Ilsco ATTA-350-38 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | ATTA-350-38 |
| SKU #: | 2367351 |
| Conductor Type: | Copper/Aluminum |
| Dimensions: | 1.906 in L x 1 in W x 1.125 in H |
| Finish: | Electro Tin Plated |
| Specifications: | 3/8 in Hex, 1-Conductor |
| Tongue Size: | 1/4 in THK |
| Type: | Type ATTA Anti-Turn Dual Rated |
| UNSPSC: | 39121408 |
| UPC: | 00783669992175 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO ATTA-350-38 ILSCO ClearChoice Mechanical Lug
Brand: Ilsco
Part Number: ATTA-350-38
ILSCO ClearChoice Mechanical Lug, Type ATTA Anti-Turn Dual Rated, Copper/Aluminum Conductor, 6 AWG to 350 kcmil Conductor, 3/8 in Stud, 1/4 in THK Tongue, 35 kV, Specifications: 3/8 in Hex, 1-Conductor, 90 deg C, Aluminum Alloy, Electro Tin Plated, 1.906 in L x 1 in W x 1.125 in H Dimensions
Additional Description: ILSC-ATTA-350-38 ANTI-TURN ALUM MECH LUG ONE CONDUCTOR 350KCMIL-6 CONDUCTOR 350, D2584A22T
Catalog Description: Aluminum Anti-Turn Mechanical Lug, Conductor Range 350-6, 1 Conductor, 3/8in Bolt Size, Tin Plated, UL, CSA
ATTA-350-38 Item Features
- Manufactured from high strength aluminum alloy
- Electro tin plated provides low contact resistance
- Chamfered wire entry for easy conductor insertion
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- Anti-rotation bar reduces risk of movement at installation
ATTA-350-38 Standards
UL 453G/486A/B/File No. E6207|CSA File No. LR29601SKU #2367351Part Number #ATTA-350-38UNSPSC39121408UPC00783669992175
Image provided may only be a representation of final product and may include optional equipment
