AU-250

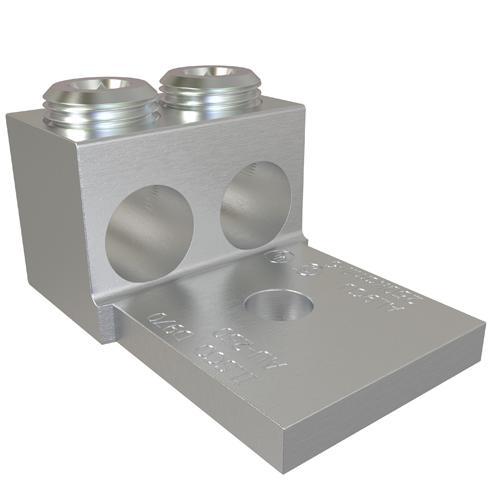

ILSCO AU-250 ILSCO ClearChoice Mechanical Terminal Lug
Part Number # AU-250
SKU # 19297
Ilsco AU-250 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | AU-250 |
| SKU #: | 19297 |
| Conductor Size: | 6 AWG to 250 kcmil |
| Conductor Type: | Aluminum/Copper |
| Dimensions: | 2.5675 in L x 1.6563 in W x 1.187 in H |
| Finish: | Electro-Plated Tin |
| Series: | AU Series |
| Specifications: | 5/16 in Hex |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 1.5 in L x 1.48 in W x 0.25 in THK |
| Tongue Type: | Straight |
| Type: | 2-Conductor Dual Rated |
| Country of origin: | MX |
| Material: | 6061-T6 Aluminum Alloy |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669003307 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO AU-250 ILSCO ClearChoice Mechanical Terminal Lug
Brand: Ilsco
Part Number: AU-250
ILSCO ClearChoice Mechanical Terminal Lug, 2-Conductor Dual Rated, Series: AU Series, Aluminum/Copper Conductor, 6 AWG to 250 kcmil Conductor, 3/8 in Stud, 2 Bolt Holes, 1.5 in L x 1.48 in W x 0.25 in THK Tongue, Straight Tongue, 2000 VAC, 5/16 in Hex, 90 deg C, 6061-T6 Aluminum Alloy, Electro-Plated Tin, 2.5675 in L x 1.6563 in W x 1.187 in H
Additional Description: ILSC-AU-250 AL MEC (2)250-6 25/64 T UL CSA
Catalog Description: Aluminum Mechanical Lug, Conductor Range 250-6, 2 Ports, 1 Hole, 3/8in Bolt Size, Tin Plated, UL, CSA
AU-250 Application
Terminating Connector ApplicationsAU-250 Item Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Chamfered wire entry provides ease of installation
- Suitable for use with either copper or aluminum conductors
- Mounting hole spacing from side to side, hole to hole is 7/8 in
- Electro-tin plated provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- 1-stud
- 25/64 in mounting hole
AU-250 Standards
CSA File No. LR-29601|UL 453G|UL 486A-B File No. E6207|ECCN EAR99SKU #19297Part Number #AU-250UNSPSC39121408UPC00783669003307
