Part Number # AU-350-2N
SKU # 177551
Image Disclaimers Message
AU-350-2N

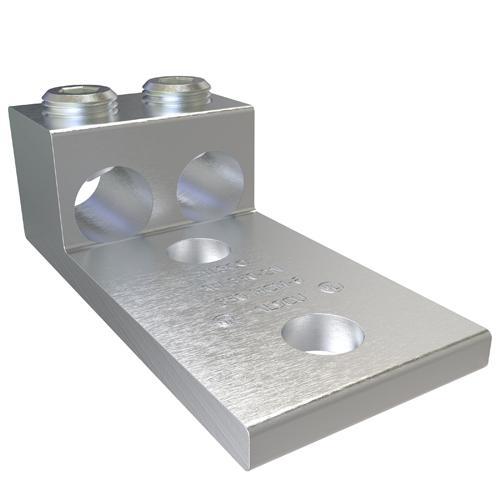

ILSCO AU-350-2N ILSCO ClearChoice Mechanical Terminal Lug
Part Number # AU-350-2N
SKU # 177551
$208.33 / 3Each
Ilsco AU-350-2N Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | AU-350-2N |
| SKU #: | 177551 |
| Conductor Size: | 6 AWG to 350 kcmil |
| Conductor Type: | Aluminum/Copper |
| Dimensions: | 4-5/16 in L x 4 in W x 1-3/8 in H |
| Finish: | Electro-Plated Tin |
| Series: | AU Series |
| Specifications: | 5/16 in Hex, 1-3/4 in Mounting Hole Spacing |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 3 in L x 2 in W x 0.312 in THK |
| Tongue Type: | Straight |
| Type: | 2-Conductor Dual Rated |
| Country of origin: | MX |
| Material: | 6061-T6 Aluminum Alloy |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669005745 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$208.33 / 3Each
Quantity:
- ILSCO ClearChoice Mechanical Terminal Lug, 2-Conductor Dual Rated, Series: AU Series, Aluminum/Copper Conductor, 6 AWG to 350 kcmil Conductor, 1/2 in Stud, 2 Bolt Holes, 3 in L x 2 in W x 0.312 in THK Tongue, Straight Tongue, 2000 V AC, 5/16 in Hex, 1-3/4 in Mounting Hole Spacing, 90 deg C, 6061-T6 Aluminum Alloy, Electro-Plated Tin, 4-5/16 in L x 4 in W x 1-3/8 in H
AU-350-2N Application
Terminating Connector ApplicationsAU-350-2N Item Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Chamfered wire entry provides ease of installation
- Suitable for use with either copper or aluminum conductors
- Mounting hole spacing from side to side, hole to hole is 7/8 in
- Electro-tin plated provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- 2-studs
- 9/16 in mounting hole
AU-350-2N Standards
CSA File No. LR-29601|UL 453G|UL 486A-B File No. E6207|ECCN EAR99SKU #177551Part Number #AU-350-2NUNSPSC39121408UPC00783669005745
