Part Number # AU-600-2N
SKU # 2250703
Image Disclaimers Message
Brand: Ilsco
AU-600-2N

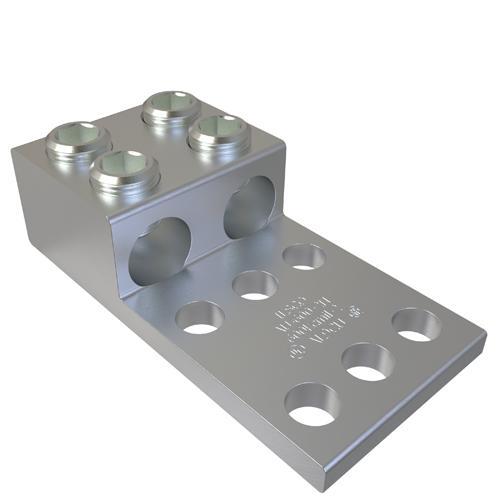

ILSCO AU-600-2N ILSCO ClearChoice Mechanical Terminal Lug
Part Number # AU-600-2N
SKU # 2250703
$408.69 / 3Each
Ilsco AU-600-2N Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | AU-600-2N |
| SKU #: | 2250703 |
| Conductor Size: | 2 AWG to 600 kcmil |
| Conductor Type: | Aluminum/Copper |
| Dimensions: | 5-1/2 in L x 2-3/4 in W x 1-1/2 in H |
| Finish: | Electro-Plated Tin |
| Series: | AU Series |
| Specifications: | 1/2 in Hex, 1-3/4 in Mounting Hole Spacing |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 3 in L x 2-3/4 in W x 3/8 in THK |
| Tongue Type: | Straight |
| Type: | 2-Conductor Dual Rated |
| Country of origin: | MX |
| Material: | 6061-T6 Aluminum Alloy |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669005776 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$408.69 / 3Each
Quantity:
- ILSCO ClearChoice Mechanical Terminal Lug, 2-Conductor Dual Rated, Series: AU Series, Aluminum/Copper Conductor, 2 AWG to 600 kcmil Conductor, 1/2 in Stud, 2 Bolt Holes, 3 in L x 2-3/4 in W x 3/8 in THK Tongue, Straight Tongue, 2000 V AC, 1/2 in Hex, 1-3/4 in Mounting Hole Spacing, 90 deg C, 6061-T6 Aluminum Alloy, Electro-Plated Tin, 5-1/2 in L x 2-3/4 in W x 1-1/2 in H
AU-600-2N Application
Terminating Connector ApplicationsAU-600-2N Item Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Chamfered wire entry provides ease of installation
- Suitable for use with either copper or aluminum conductors
- Mounting hole spacing from side to side, hole to hole is 7/8 in
- Electro-tin plated provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- 6 studs
- 9/16 in mounting hole
AU-600-2N Standards
CSA File No. LR-29601|UL 453G|UL 486A-B File No. E6207|ECCN EAR99SKU #2250703Part Number #AU-600-2NUNSPSC39121408UPC00783669005776
