Part Number # CAN-303
SKU # 2282956
Image Disclaimers Message
CAN-303

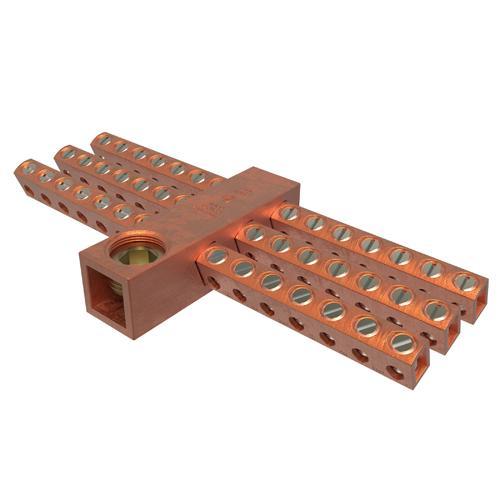

ILSCO CAN-303 ILSCO ClearChoice Mechanical Neutral Bar
Part Number # CAN-303
SKU # 2282956
$291.94 / Each
Typical price:$309.45 / Each
Ilsco CAN-303 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | CAN-303 |
| SKU #: | 2282956 |
| Cable Tap: | 14 to 6, 14 to 6 AWG |
| Mounting Hole Quantity: | 2 |
| Series: | CAN |
| Tap Quantity: | 42 |
| Country of origin: | IN |
| Material: | Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669026948 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$291.94 / Each
Typical price:$309.45 / Each
Quantity:
- ILSCO ClearChoice Mechanical Neutral Bar, Series: CAN, 5-1/2 in Bar Width, 3 in Bar Length, 1-7/16 in Bar Height, 600 V AC, 14 to 6 AWG Cable Tap, 6 AWG to 250 kcmil Cable Main, 42 Tap Quantity, 2 Mounting Hole Quantity, Copper
CAN-303 Application
For tap connector/grounding connectorCAN-303 Item Features
- Manufactured from high strength copper tubing
- Compact design
- Range taking
- Circuit bars inserted at a 20 deg angle
- Provides maximum conductivity
- Up to 42 circuit taps can be made in just 5-1/2 in of space
- A wide range of conductor sizes can be used in the same connector
- Provides easy wire insertion
- 10 to 32 tapped mounting holes
CAN-303 Standards
CSA LR-29601|UL 486A/B|E6207|UL Recognized|PROP65: it is not known to contain any chemicals associated with this regulationSKU #2282956Part Number #CAN-303UNSPSC39121408UPC00783669026948
