Part Number # CCL-1/0-14
SKU # 2197555
Image Disclaimers Message
CCL-1/0-14

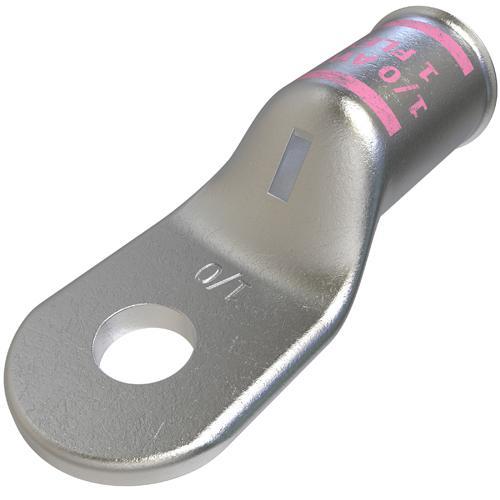

ILSCO CCL-1/0-14 ILSCO ClearChoice Lug Compression Connector
Part Number # CCL-1/0-14
SKU # 2197555
$151.00 / 10Each
Ilsco CCL-1/0-14 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | CCL-1/0-14 |
| SKU #: | 2197555 |
| Barrel Size: | 0.406 in ID x 0.516 in OD |
| Conductor Size: | 1/0, 1/0 AWG |
| Conductor Type: | Copper |
| Dimensions: | 0.713 in W |
| Overall Length: | 1.831, 1.831 in |
| Series: | CCL |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 0.791 in L x 0.713 in W x 0.11 in THK |
| Tongue Type: | Solid Seamless |
| Type: | 1-Hole Light Duty |
| Color: | Pink |
| Country of origin: | IN |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121448 |
| UPC: | 00783669031461 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$151.00 / 10Each
Quantity:
- ILSCO ClearChoice Lug Compression Connector, 1-Hole Light Duty, Series: CCL, Copper Conductor, 1/0 AWG Conductor, 600 V AC, 1/4 in Stud, Solid Seamless Tongue, 0.791 in L x 0.713 in W x 0.11 in THK Tongue, 1.831 in Overall Length, 0.406 in ID x 0.516 in OD Barrel, 90 deg C, Pink, 0.713 in W
CCL-1/0-14 Application
For terminating connectorCCL-1/0-14 Item Features
- Electro-tin plated
- Solid seamless tang
- Suitable for use in circuits rated 35 kV or less, Proper high voltage spacing and insulation techniques must be used
- For copper conductor only
- Provides low contact resistance
- Visual inspection of proper cable insertion
- For performance and strength
- For high conductivity
- Application versatility
- Ease of wire insertion with flared end
- 1 AWG flexible alternate conductor size
- Manufactured from high strength seamless copper tubing
CCL-1/0-14 Standards
UL 486A-B/E6207|CSA LR-29601SKU #2197555Part Number #CCL-1/0-14UNSPSC39121448UPC00783669031461
