Part Number # CCL-2-12
SKU # 2277859
Image Disclaimers Message
Brand: Ilsco
CCL-2-12

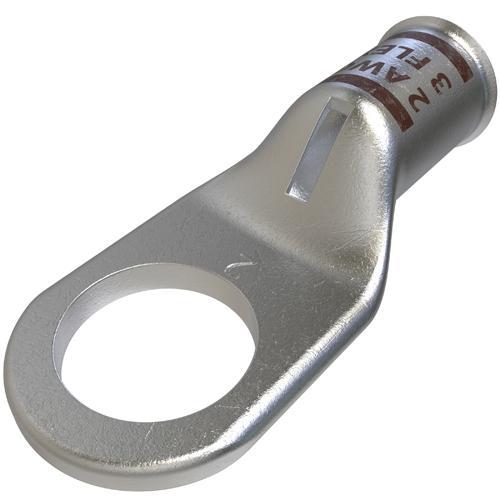

ILSCO CCL-2-12 ILSCO ClearChoice Lug Compression Connector
Part Number # CCL-2-12
SKU # 2277859
$283.25 / 25Each
Ilsco CCL-2-12 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | CCL-2-12 |
| SKU #: | 2277859 |
| Barrel Size: | 0.335 in ID x 0.429 in OD |
| Conductor Size: | 2, 2 AWG |
| Conductor Type: | Flex Copper |
| Dimensions: | 0.752 in W |
| Overall Length: | 1.752, 1.752 in |
| Series: | CCL |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 0.858 in L x 0.752 in W x 0.102 in THK |
| Tongue Type: | Solid Seamless |
| Type: | 1-Hole Light Duty |
| Color: | Brown |
| Country of origin: | IN |
| Material: | Tin Plated Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121448 |
| UPC: | 00783669031362 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$283.25 / 25Each
Quantity:
- ILSCO ClearChoice Lug Compression Connector, 1-Hole Light Duty, Series: CCL, Flex Copper Conductor, 2 AWG Conductor, 600 to 35 kV V AC, 1/2 in Stud, Solid Seamless Tongue, 0.858 in L x 0.752 in W x 0.102 in THK Tongue, 1.752 in Overall Length, 0.335 in ID x 0.429 in OD Barrel, 90 deg C, Tin Plated Copper, Brown, 0.752 in W
CCL-2-12 Application
Terminating Connector ApplicationsCCL-2-12 Item Features
- Electro-tin plated
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35KV
- For copper conductor only
- Provides low contact resistance
- Visual inspection of proper cable insertion
- For performance and strength
- For high conductivity
- Application versatility
- Ease of wire insertion with flared end
- 3 AWG flexible alternate conductor size
- Manufactured from high strength seamless copper tubing
- Color coded
- Maximum conductivity and excellent crimping characteristics
- Listed with ILSCO MT-25
CCL-2-12 Standards
UL 486A-486B File No. E6207|CSA File No. LR29601|ECCN EAR99SKU #2277859Part Number #CCL-2-12UNSPSC39121448UPC00783669031362
