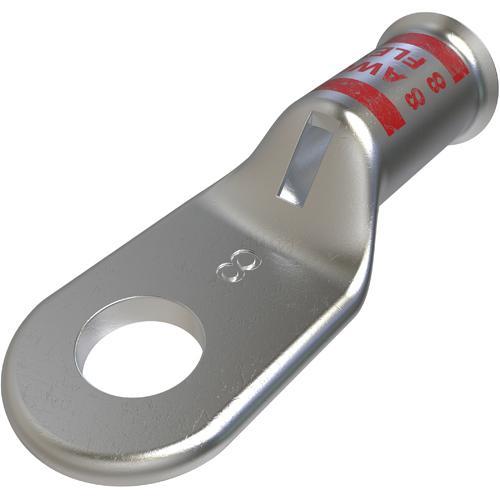

ILSCO CCL-8-10 ILSCO ClearChoice Lug Compression Connector
Image Disclaimers Message
ILSCO CCL-8-10 ILSCO ClearChoice Lug Compression Connector
ILSCO CCL-8-10 ILSCO ClearChoice Lug Compression Connector
Part #:CCL-8-10
SKU #: 2277860
Key Features
Part #:CCL-8-10
SKU #: 2277860
Brand: Ilsco
Barrel Size: 0.185 in ID x 0.256 in OD
Conductor Size: 8, 8 AWG
Conductor Type: Flex Copper
Dimensions: 0.445 in W
Overall Length: 1.201, 1.201 in
- Electro-tin plated
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35KV
- For copper conductor only
- Provides low contact resistance
- Visual inspection of proper cable insertion
- For performance and strength
- For high conductivity
- Application versatility
- Ease of wire insertion with flared end
- 8 AWG flexible alternate conductor size
- Manufactured from high strength seamless copper tubing
- Color coded
- Maximum conductivity and excellent crimping characteristics
- Listed with ILSCO MT-25
ILSCO CCL-8-10 ILSCO ClearChoice Lug Compression Connector
ILSCO ClearChoice Lug Compression Connector, 1-Hole Light Duty, Series: CCL, Flex Copper Conductor, 8 AWG Conductor, 600 VAC to 35 kV VAC, #8 to 10 Stud, Solid Seamless Tongue, 0.579 in L x 0.445 in W x 0.071 in THK Tongue, 1.201 in Overall Length, 0.185 in ID x 0.256 in OD Barrel, 90 deg C, Tin Plated Copper, Red, 0.445 in W
Additional Description: ILSC-CCL-8-10 CU CMP 8-10 T UL CSA
Catalog Description: Copper Compression Lug, Conductor Size 8, 1 Hole, #10 Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
