Part Number # CCL-8-14
SKU # 2204490
Image Disclaimers Message
CCL-8-14

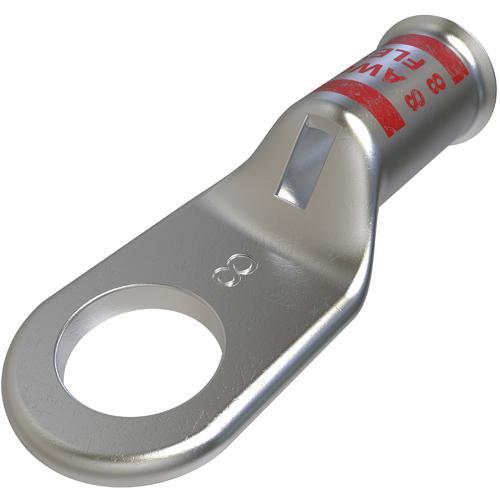

ILSCO CCL-8-14 ILSCO ClearChoice Lug Compression Connector
Part Number # CCL-8-14
SKU # 2204490
$197.69 / 50Each
Ilsco CCL-8-14 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | CCL-8-14 |
| SKU #: | 2204490 |
| Barrel Size: | 0.185 in ID x 0.256 in OD |
| Conductor Size: | 8, 8 AWG |
| Conductor Type: | Flex Copper |
| Dimensions: | 0.445 in W |
| Overall Length: | 1.201, 1.201 in |
| Series: | CCL |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 0.579 in L x 0.445 in W x 0.071 in THK |
| Tongue Type: | Solid Seamless |
| Type: | 1-Hole Light Duty |
| Color: | Red |
| Country of origin: | IN |
| Material: | Tin Plated Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121448 |
| UPC: | 00783669031027 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$197.69 / 50Each
Quantity:
- ILSCO ClearChoice Lug Compression Connector, 1-Hole Light Duty, Series: CCL, Flex Copper Conductor, 8 AWG Conductor, 600 to 35 kV V AC, 1/4 in Stud, Solid Seamless Tongue, 0.579 in L x 0.445 in W x 0.071 in THK Tongue, 1.201 in Overall Length, 0.185 in ID x 0.256 in OD Barrel, 90 deg C, Tin Plated Copper, Red, 0.445 in W
CCL-8-14 Application
Terminating Connector ApplicationsCCL-8-14 Item Features
- Electro-tin plated
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35KV
- For copper conductor only
- Provides low contact resistance
- Visual inspection of proper cable insertion
- For performance and strength
- For high conductivity
- Application versatility
- Ease of wire insertion with flared end
- 8 AWG flexible alternate conductor size
- Manufactured from high strength seamless copper tubing
- Color coded
- Maximum conductivity and excellent crimping characteristics
- Listed with ILSCO MT-25
CCL-8-14 Standards
UL 486A-486B File No. E6207|CSA File No. LR29601|ECCN EAR99SKU #2204490Part Number #CCL-8-14UNSPSC39121448UPC00783669031027
