Part Number # CLND-1-516-78
SKU # 2213881

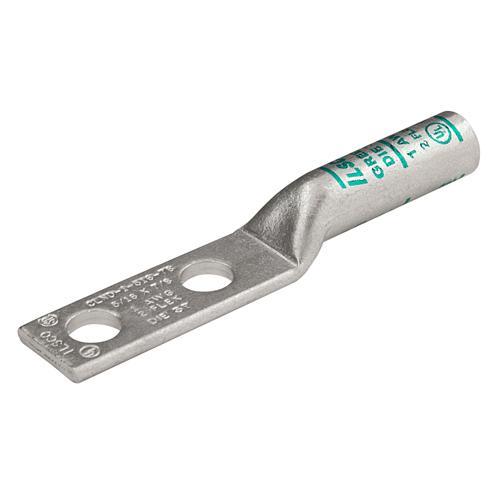

Image provided may only be a representation of
final product and may include optional equipment
CLND-1-516-78
ILSCO CLND-1-516-78 ILSCO SureCrimp Lug Compression Connector
Part Number # CLND-1-516-78
SKU # 2213881
Ilsco CLND-1-516-78 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | CLND-1-516-78 |
| SKU #: | 2213881 |
| Barrel Size: | 0.359 in ID x 0.468 in OD x 1.375 in L |
| Barrel Type: | Chamfered/Long |
| Conductor Size: | 1, 1 AWG |
| Conductor Type: | Copper |
| Dimensions: | 0.673 in W |
| Mounting Hole Size: | 0.343, 0.343 in |
| Overall Length: | 3.392, 3.392 in |
| Series: | CLND |
| Specifications: | 7/8 in Mounting Hole Spacing, 1.4370 in L Wire Strip |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 1.687 in L x 0.673 in W x 0.109 in THK |
| Type: | 2-Hole |
| Country of origin: | US |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121448 |
| UPC: | 00783669634983 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO CLND-1-516-78 ILSCO SureCrimp Lug Compression Connector
Brand: Ilsco
Part Number: CLND-1-516-78
ILSCO SureCrimp Lug Compression Connector, 2-Hole, Series: CLND, Copper Conductor, 1 AWG Conductor, Die Code: I-37, 600 VAC, 5/16 in Stud, 1.687 in L x 0.673 in W x 0.109 in THK Tongue, 3.392 in Overall Length, Chamfered/Long Barrel, 0.359 in ID x 0.468 in OD x 1.375 in L Barrel, 7/8 in Mounting Hole Spacing, 1.4370 in L Wire Strip, 90 deg C, 0.343 in Mounting Hole, Green, 0.673 in W
Additional Description: ILSC-CLND-1-516-78 CU CMP 1 AWG 11/32-7/8 T UL C SA LONG BARREL, NO SIGHT CSA L
Catalog Description: Surecrimp Copper Compression Lug, Conductor Size 1, 2 Holes, 5/16in Bolt Size, 7/8in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
CLND-1-516-78 Application
For terminating connectorCLND-1-516-78 Item Features
- Manufactured from high strength seamless copper tubing, electro-tin plated
- Color coded
- Offers maximum conductivity and excellent crimping characteristics
- Provides low contact resistance
- For easy conductor insertion
- Identifies the proper compression die
- Application versatility
- Reduces inventory requirements
- Suitable for use in circuits rated 35 kV or less, Proper high voltage spacing and insulation techniques must be used
- 2 AWG flexible alternate conductor size
- 6 to 1 AWG expanded conductor size
- Without sight hole
CLND-1-516-78 Standards
NEBS Level 3|UL 486A/486B/467 File No. E6207|CSA LR-29601|PROP65: it is not known to contain any chemicals associated with this regulationSKU #2213881Part Number #CLND-1-516-78UNSPSC39121448UPC00783669634983
