ILSCO CLND-600-12-134 ILSCO SureCrimp Lug Compression Connector
Part Number # CLND-600-12-134
SKU # 2354713
Ilsco CLND-600-12-134 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | CLND-600-12-134 |
| SKU #: | 2354713 |
| Barrel Size: | 0.92 in ID x 1.187 in OD x 2.687 in L |
| Barrel Type: | Chamfered/Long |
| Conductor Size: | 250 to 600, 250 to 600 kcmil |
| Conductor Type: | Flex Copper |
| Dimensions: | 1.712 in W |
| Mounting Hole Size: | 0.562, 0.562 in |
| Overall Length: | 6.496, 6.496 in |
| Series: | CLND |
| Specifications: | 1-3/4 in Mounting Hole Spacing, 2.749 in L Wire Strip |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 3 in L x 1.712 in W x 0.267 in THK |
| Type: | 2-Hole |
| Country of origin: | US |
| Material: | Tin Plated Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121448 |
| UPC: | 00783669647143 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO CLND-600-12-134 ILSCO SureCrimp Lug Compression Connector
Brand: Ilsco
Part Number: CLND-600-12-134
ILSCO SureCrimp Lug Compression Connector, 2-Hole, Series: CLND, Flex Copper Conductor, 250 to 600 kcmil Conductor, Die Code: ILD-94, 600 VAC to 35 kV VAC, 1/2 in Stud, 3 in L x 1.712 in W x 0.267 in THK Tongue, 6.496 in Overall Length, Chamfered/Long Barrel, 0.92 in ID x 1.187 in OD x 2.687 in L Barrel, 1-3/4 in Mounting Hole Spacing, 2.749 in L Wire Strip, 90 deg C, 0.562 in Mounting Hole, Tin Plated Copper, Green, 1.712 in W
Additional Description: ILSC-CLND-600-12-134 CU CMP 600 KCMIL 9/16-1-3/4 T UL CSA LONG BARREL, NO SIGHT LONG BARREL, NO SIGHT TUL CS
Catalog Description: Surecrimp Copper Compression Lug, Conductor Size 600, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
CLND-600-12-134 Application
Terminating Connector, Grounding and Bonding ApplicationsCLND-600-12-134 Item Features
- Manufactured from high strength seamless copper tubing, electro-tin plated
- Color coded
- Offers maximum conductivity and excellent crimping characteristics
- Provides low contact resistance
- For easy conductor insertion
- Identifies the proper compression die
- Application versatility
- Reduces inventory requirements
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- 400 G, H, I, K, M flexible 444.4 DLO alternate conductor size
- Without sight hole
- Electro-tin plated
- Long barrel length with chamfered entry
CLND-600-12-134 Standards
NEBS Level 3|UL 453G|UL 467|UL 486A-486B File No. E6207|CSA File No. LR29601|ECCN EAR99SKU #2354713Part Number #CLND-600-12-134UNSPSC39121448UPC00783669647143

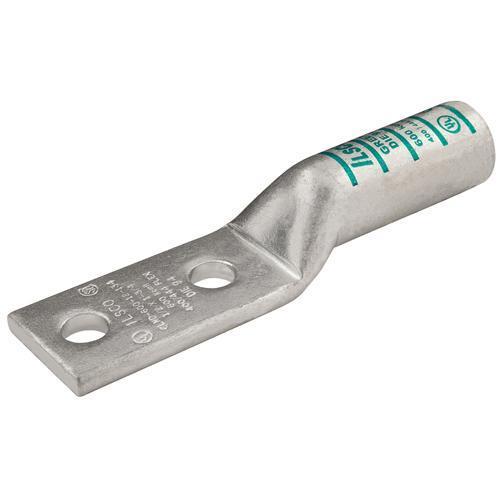

Image provided may only be a representation of final product and may include optional equipment
