Part Number # CLWD-2/0-38-1
SKU # 2257532
Image Disclaimers Message
CLWD-2/0-38-1

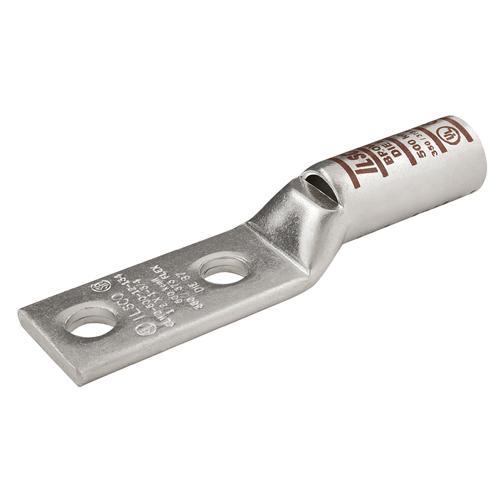

ILSCO CLWD-2/0-38-1 ILSCO SureCrimp Lug Compression Connector Sight Hole
Part Number # CLWD-2/0-38-1
SKU # 2257532
Ilsco CLWD-2/0-38-1 Key Features
Brand: | Ilsco |
---|---|
Part Number # : | CLWD-2/0-38-1 |
SKU #: | 2257532 |
Barrel Size: | 0.437 in ID x 0.562 in OD x 1.5 in L |
Barrel Type: | Chamfered/Long |
Conductor Size: | 4 to 2/0, 4 to 2/0 AWG |
Conductor Type: | Flex Copper |
Dimensions: | 0.811 in W |
Mounting Hole Size: | 0.406, 0.406 in |
Overall Length: | 3.833, 3.833 in |
Series: | CLWD |
Specifications: | 1 in Mounting Hole Spacing, 1.562 in L Wire Strip |
Temperature Rating (Degrees F): | 90, 90 deg C |
Tongue Size: | 1.937 in L x 0.811 in W x 0.125 in THK |
Type: | 2-Hole |
Color: | Black |
Country of origin: | US |
Material: | Tin Plated Copper |
Manufacturer Name: | ECM Industries |
UNSPSC: | 39121448 |
UPC: | 00783669637830 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO CLWD-2/0-38-1 ILSCO SureCrimp Lug Compression Connector Sight Hole
Brand: Ilsco
Part Number: CLWD-2/0-38-1
ILSCO SureCrimp Lug Compression Connector Sight Hole, 2-Hole, Series: CLWD, Flex Copper Conductor, 4 to 2/0 AWG Conductor, Die Code: ILD-45, 600 VAC to 35 kV VAC, 3/8 in Stud, 1.937 in L x 0.811 in W x 0.125 in THK Tongue, 3.833 in Overall Length, Chamfered/Long Barrel, 0.437 in ID x 0.562 in OD x 1.5 in L Barrel, 1 in Mounting Hole Spacing, 1.562 in L Wire Strip, 90 deg C, 0.406 in Mounting Hole, Tin Plated Copper, Black, 0.811 in W
Additional Description: ILSC-CLWD-2/0-38-1 CU CMP 2/0 AWG 13/32-1 T UL C SA LONG BARREL WITH SIGHT CSA LO
Catalog Description: Surecrimp Copper Compression Lug, Conductor Size 2/0, 2 Holes, 3/8in Bolt Size, 1in Hole Spacing, Long Barrel, Sight Window, Tin Plated, UL, CSA
CLWD-2/0-38-1 Application
Terminating Connector ApplicationsCLWD-2/0-38-1 Item Features
- Manufactured from high strength seamless copper tubing, electro-tin plated
- Color coded
- Offers maximum conductivity and excellent crimping characteristics
- Provides low contact resistance
- For easy conductor insertion
- Identifies the proper compression die
- Application versatility
- Reduces inventory requirements
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- 1/0 AWG flexible alternate conductor size
- Electro-tin plated
- Long barrel length with chamfered entry
- Chamfered barrel for visual inspection of proper cable insertion
CLWD-2/0-38-1 Standards
NEBS Level 3|UL 453G|UL 486A-486B File No. E6207|CSA File No. LR29601|ECCN EAR99SKU #2257532Part Number #CLWD-2/0-38-1UNSPSC39121448UPC00783669637830
