CLWD-500-12-134
ILSCO CLWD-500-12-134 ILSCO SureCrimp Lug Compression Connector Sight Hole
Part Number # CLWD-500-12-134
SKU # 2256675
Ilsco CLWD-500-12-134 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | CLWD-500-12-134 |
| SKU #: | 2256675 |
| Barrel Size: | 0.828 in ID x 1.062 in OD x 2.25 in L |
| Barrel Type: | Chamfered/Long |
| Conductor Size: | 250 to 500, 250 to 500 kcmil |
| Conductor Type: | Flex Copper |
| Dimensions: | 1.535 in W |
| Mounting Hole Size: | 0.562, 0.562 in |
| Overall Length: | 5.982, 5.982 in |
| Series: | CLWD |
| Specifications: | 1-3/4 in Mounting Hole Spacing, 2.312 in L Wire Strip |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 3 in L x 1.535 in W x 0.234 in THK |
| Type: | 2-Hole |
| Color: | Brown |
| Country of origin: | MX |
| Material: | Tin Plated Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121448 |
| UPC: | 00783669646191 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

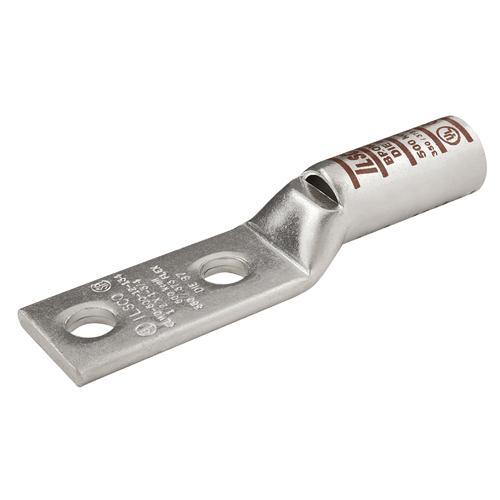

ILSCO CLWD-500-12-134 ILSCO SureCrimp Lug Compression Connector Sight Hole
Brand: Ilsco
Part Number: CLWD-500-12-134
ILSCO SureCrimp Lug Compression Connector Sight Hole, 2-Hole, Series: CLWD, Flex Copper Conductor, 250 to 500 kcmil Conductor, Die Code: ILD-87, 600 VAC to 35 kV VAC, 1/2 in Stud, 3 in L x 1.535 in W x 0.234 in THK Tongue, 5.982 in Overall Length, Chamfered/Long Barrel, 0.828 in ID x 1.062 in OD x 2.25 in L Barrel, 1-3/4 in Mounting Hole Spacing, 2.312 in L Wire Strip, 90 deg C, 0.562 in Mounting Hole, Tin Plated Copper, Brown, 1.535 in W
Additional Description: ILSC-CLWD-500-12-134 CU CMP 500 KCMIL 9/16-1-3/4 T UL CSA LONG BARREL WITH SIGHT LONG BARREL WITH SIGHT TUL CSA CSA
Catalog Description: Surecrimp Copper Compression Lug, Conductor Size 500, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, Sight Window, Tin Plated, UL, CSA
CLWD-500-12-134 Application
Terminating Connector ApplicationsCLWD-500-12-134 Item Features
- Manufactured from high strength seamless copper tubing, electro-tin plated
- Color coded
- Offers maximum conductivity and excellent crimping characteristics
- Provides low contact resistance
- For easy conductor insertion
- Identifies the proper compression die
- Application versatility
- Reduces inventory requirements
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- 350 G, H, I, K, M flexible 373.7 DLO alternate conductor size
- 250 to 500 kcmil expanded conductor size
- Electro-tin plated
- Long barrel length with chamfered entry
- Chamfered barrel for visual inspection of proper cable insertion
CLWD-500-12-134 Standards
NEBS Level 3|UL 453G|UL 486A-486B File No. E6207|CSA File No. LR29601|ECCN EAR99SKU #2256675Part Number #CLWD-500-12-134UNSPSC39121448UPC00783669646191
