Part Number # CLWN-700-38-1
SKU # 2302836
Image Disclaimers Message
CLWN-700-38-1

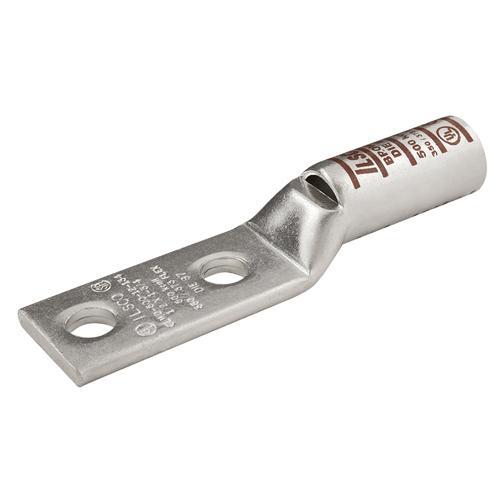

ILSCO CLWN-700-38-1 ILSCO SureCrimp Lug Compression Connector Sight Hole
Part Number # CLWN-700-38-1
SKU # 2302836
Ilsco CLWN-700-38-1 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | CLWN-700-38-1 |
| SKU #: | 2302836 |
| Barrel Size: | 2.687 in L |
| Barrel Type: | Chamfered/Narrow Long |
| Conductor Size: | 350 to 700, 350 to 700 kcmil |
| Conductor Type: | Flex Copper |
| Dimensions: | 0.991 in ID x 1.25 in OD |
| Mounting Hole Size: | 0.406 in Dia |
| Overall Length: | 5.493, 5.493 in |
| Specifications: | 2.7495 in L Strip, 1 in Mounting Hole Spacing |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 1.937 in L x 1.235 in W x 0.259 in THK |
| Type: | 2-Hole Type CLWN |
| Color: | Pink |
| Country of origin: | US |
| Material: | Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121448 |
| UPC: | 00783669686005 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO CLWN-700-38-1 ILSCO SureCrimp Lug Compression Connector Sight Hole
Brand: Ilsco
Part Number: CLWN-700-38-1
ILSCO SureCrimp Lug Compression Connector Sight Hole, 2-Hole Type CLWN, Flex Copper Conductor, 350 to 700 kcmil Conductor, Die Code: 99, 600 VAC, 3/8 in Stud, 1.937 in L x 1.235 in W x 0.259 in THK Tongue, 5.493 in Overall Length, Chamfered/Narrow Long Barrel, 2.687 in L Barrel, 2.7495 in L Strip, 1 in Mounting Hole Spacing, 90 deg C, 0.406 in Dia Mounting Hole, Copper, Pink, 0.991 in ID x 1.25 in OD
Additional Description: ILSC-CLWN-700-38-1 (N) CU CMP 700KCMIL T UL CSA 3/8 1 LONG BRL W SIGHT NARROW TANG NON-CANCELABLE, NON-RETURNABLE BRL
Catalog Description: Surecrimp Copper Compression Lug, Conductor Size 700, 2 Holes, 3/8in Bolt Size, 1in Hole Spacing, Long Barrel, Sight Window, Narrow Tang, Tin Plated, UL, CSA
CLWN-700-38-1 Application
Terminating Connector, Grounding and Bonding ApplicationsCLWN-700-38-1 Item Features
- Manufactured from high strength seamless copper tubing
- Electro-tin plated
- Maximum conductivity and excellent crimping characteristics
- Narrow tongue width for limited space applications
- Long barrel length with chamfered entry
- Sight hole and chamfered barrel for visual inspection of proper cable insertion
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Expanded wire size with ILSCO dieless tools and Burndy Y644M dieless too
CLWN-700-38-1 Standards
UL 486A/B/467/453G File No. E6207|CSA File No. LR29601|NEBS3SKU #2302836Part Number #CLWN-700-38-1UNSPSC39121448UPC00783669686005
