Part Number # CP-500
SKU # 2234982
Image Disclaimers Message
Brand: Ilsco
CP-500

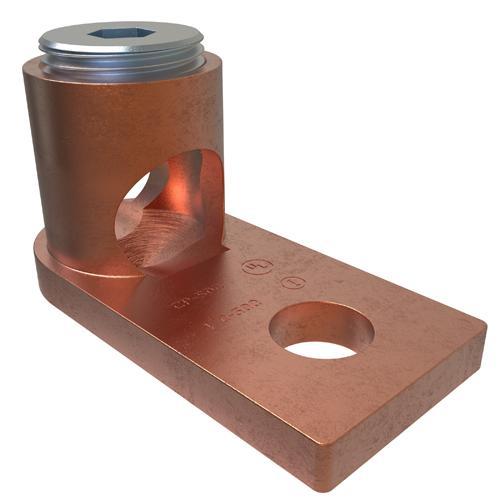

ILSCO CP-500 ILSCO ClearChoice Post Connector
Part Number # CP-500
SKU # 2234982
$721.02 / 6Each
Ilsco CP-500 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | CP-500 |
| SKU #: | 2234982 |
| Conductor Size: | 4/0 AWG to 500 kcmil |
| Conductor Type: | Copper |
| Dimensions: | 2.9688 in L x 1.375 in W x 1.4375 in H |
| Specifications: | 3/8 in Hex |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 1.781 in L x 0.281 in THK |
| Tongue Type: | Straight |
| Type: | Type CP Compact |
| Country of origin: | US |
| Material: | Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669030174 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$721.02 / 6Each
Quantity:
ILSCO CP-500 ILSCO ClearChoice Post Connector
Brand: Ilsco
Part Number: CP-500
ILSCO ClearChoice Post Connector, Type CP Compact, Copper Conductor, 4/0 AWG to 500 kcmil Conductor, 1/2 in Stud, 1 Bolt Holes, 1.781 in L x 0.281 in THK Tongue, Straight Tongue, 2000 VAC, Specifications: 3/8 in Hex, 90 deg C, Copper, 2.9688 in L x 1.375 in W x 1.4375 in H Dimensions
Additional Description: ILSC-CP-500 CU MEC 500-4/0-1/2 B UL CSA
Catalog Description: Copper Post Connector, Conductor Range 500-4/0, 1/2in Bolt Size, UL, CSA
CP-500 Application
For terminating connectorCP-500 Item Features
- Re-usable
- Range taking for reduced inventories and flexibility and permits inventories to be kept to a minimum
- Manufactured from high conductivity copper alloy provides long lasting reliable contact
- Provides efficient use and flexibility in the field
- Ensures reliability for copper conductor
- Compact design saves space and reduces installation time
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- 1-stud
- For copper conductor only
CP-500 Standards
CSA File No. LR-29601|UL 486A-B/UL File No. E6207/UL 453GSKU #2234982Part Number #CP-500UNSPSC39121408UPC00783669030174
