Brand: Ilsco
CPM-3/0

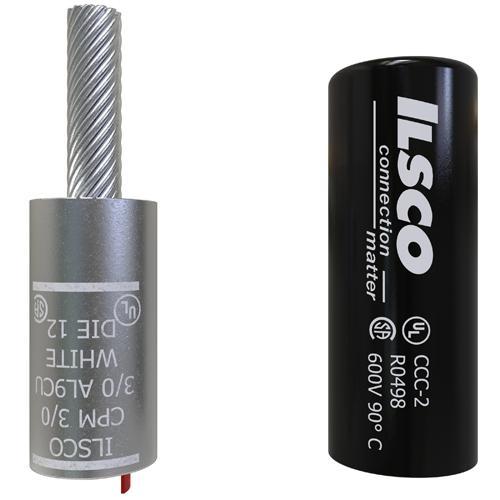

ILSCO CPM-3/0 ILSCO ClearChoice Pigtail Adapter
Part Number # CPM-3/0
SKU # 2378239
$765.30 / 10Each
Ilsco CPM-3/0 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | CPM-3/0 |
| SKU #: | 2378239 |
| Barrel Length: | 1-7/8 in |
| Conductor Size: | 3/0 AWG |
| Dimensions: | 3-1/4 in W |
| Series: | CPM |
| Specifications: | 2.093 in L Cover, 1/0 AWG Pin, 1/2 in ID x 29/32 in OD |
| Type: | Dual Rated |
| Color code: | White |
| Country of origin: | MX |
| Material: | Aluminum/Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121448 |
| UPC: | 00783669008524 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$765.30 / 10Each
Quantity:
- ILSCO ClearChoice Pigtail Adapter, Dual Rated, Series: CPM, 3/0 AWG Conductor, Die Code: 12, White Color Code, 0.373 in Pin Diameter, 1-3/8 in Pin Length, 1-7/8 in Barrel Length, 600 V AC, Specifications: 2.093 in L Cover, 1/0 AWG Pin, 1/2 in ID x 29/32 in OD, Aluminum/Copper, 3-1/4 in W Dimensions
CPM-3/0 Application
For terminating connectorCPM-3/0 Item Features
- Barrel manufactured from high strength aluminum alloy which allows insertion into equipment supplied with either copper or aluminum connectors
- Pigtail manufactured from high conductivity copper which provides maximum conductivity and excellent crimping characteristics, chamfered barrel which provides easy conductor insertion
- Color coded end caps inserted in barrel which prevents foreign materials from entering the connector prior to usage and color code identifies the proper compression die
- Pre-filled with DE-OX prevents oxide from forming
- Stranded class B and C concentric, compressed and unidirectional lay compact
- Rated for full ampacity of incoming conductor
- Clearly marked with conductor size and die index which provides easy identification and tooling recommendation
- Marked with number and location of crimps and color coded
- All supplied with insulating cover which eliminates taping, temperature range is 90 deg C and ensures reliability for aluminum or copper conductors
- Provides easy identification and tooling recommendation
- Dieless crimp tools must not be used to crimp CPM/CPML adapters
- 90 deg C temperature rating
- Dual-rated for aluminum and copper conductor
- Chamfered barrel
CPM-3/0 Standards
UL 486A-B File No. E62525|CSA File No. LR29601|ECCN EAR99|PROP65: Cancer - www.p65warnings.ca.govSKU #2378239Part Number #CPM-3/0UNSPSC39121448UPC00783669008524
