Brand: Ilsco

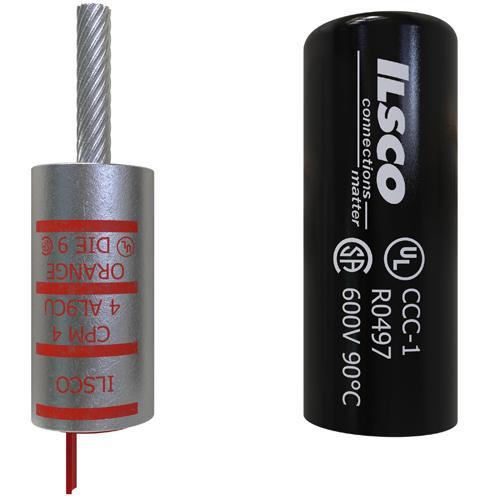

ILSCO CPM-4 ILSCO ClearChoice Pigtail Adapter
Image Disclaimers Message
Brand: Ilsco
ILSCO CPM-4 ILSCO ClearChoice Pigtail Adapter
Brand: Ilsco
ILSCO CPM-4 ILSCO ClearChoice Pigtail Adapter
Part #:CPM-4
SKU #: 2356734
$782.25/25EA
Key Features
Part #:CPM-4
SKU #: 2356734
Brand: Ilsco
Barrel Length: 1-1/4, 1-1/4 in
Conductor Size: 4, 4 AWG
Dimensions: 2-1/8 in W
Series: CPM
Specifications: 1-11/16 in L Cover, 6 AWG Pin, 1/4 in ID x 21/32 in OD
$782.25/25EA
- Barrel manufactured from high strength aluminum alloy which allows insertion into equipment supplied with either copper or aluminum connectors
- Pigtail manufactured from high conductivity copper which provides maximum conductivity and excellent crimping characteristics, chamfered barrel which provides easy conductor insertion
- Color coded end caps inserted in barrel which prevents foreign materials from entering the connector prior to usage and color code identifies the proper compression die
- Pre-filled with DE-OX prevents oxide from forming
- Stranded class B and C concentric, compressed and unidirectional lay compact
- Rated for full ampacity of incoming conductor
- Clearly marked with conductor size and die index which provides easy identification and tooling recommendation
- Marked with number and location of crimps and color coded
- All supplied with insulating cover which eliminates taping, temperature range is 90 deg C and ensures reliability for aluminum or copper conductors
- Provides easy identification and tooling recommendation
- Dieless crimp tools must not be used to crimp CPM/CPML adapters
- 90 deg C temperature rating
- Dual-rated for aluminum and copper conductor
- Chamfered barrel
Specifications
Brand: Ilsco
Barrel Length: 1-1/4, 1-1/4 in
Conductor Size: 4, 4 AWG
Dimensions: 2-1/8 in W
Series: CPM
Specifications: 1-11/16 in L Cover, 6 AWG Pin, 1/4 in ID x 21/32 in OD
Type: Dual Rated
Voltage Rating: 600, 600 VAC
Color code: Orange
Material: Aluminum/Copper
UNSPSC: 39121448
UPC: 00783669008425
ILSCO CPM-4 ILSCO ClearChoice Pigtail Adapter
ILSCO ClearChoice Pigtail Adapter, Dual Rated, Series: CPM, 4 AWG Conductor, Die Code: 9, Orange Color Code, 0.184 in Pin Diameter, 7/8 in Pin Length, 1-1/4 in Barrel Length, 600 VAC, Specifications: 1-11/16 in L Cover, 6 AWG Pin, 1/4 in ID x 21/32 in OD, Aluminum/Copper, 2-1/8 in W Dimensions
Additional Description: ILSC-CPM-4 AL CMP 4 UL
Catalog Description: Copper Compression Pigtail Adaptor, Conductor Size 4, Tin Plated, UL, CSA
