CPM-600

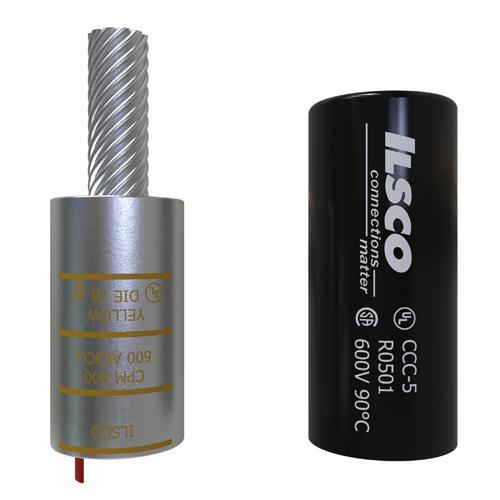

ILSCO CPM-600 ILSCO ClearChoice Pigtail Adapter
Part Number # CPM-600
SKU # 2211652
$536.80 / 3Each
Ilsco CPM-600 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | CPM-600 |
| SKU #: | 2211652 |
| Barrel Length: | 2-3/4, 2-3/4 in |
| Conductor Size: | 600, 600 kcmil |
| Dimensions: | 4-5/8 in W |
| Series: | CPM |
| Specifications: | 3-3/32 in L Cover, 350 kcmil Pin, 59/64 in ID x 1-1/2 in OD |
| Type: | Dual Rated |
| Color code: | Yellow |
| Country of origin: | MX |
| Material: | Aluminum/Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121448 |
| UPC: | 00783669008661 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$536.80 / 3Each
Quantity:
- ILSCO ClearChoice Pigtail Adapter, Dual Rated, Series: CPM, 600 kcmil Conductor, Die Code: 18, Yellow Color Code, 0.681 in Pin Diameter, 1-7/8 in Pin Length, 2-3/4 in Barrel Length, 600 V AC, Specifications: 3-3/32 in L Cover, 350 kcmil Pin, 59/64 in ID x 1-1/2 in OD, Aluminum/Copper, 4-5/8 in W Dimensions
CPM-600 Application
For terminating connectorCPM-600 Item Features
- Barrel manufactured from high strength aluminum alloy which allows insertion into equipment supplied with either copper or aluminum connectors
- Pigtail manufactured from high conductivity copper which provides maximum conductivity and excellent crimping characteristics, chamfered barrel which provides easy conductor insertion
- Color coded end caps inserted in barrel which prevents foreign materials from entering the connector prior to usage and color code identifies the proper compression die
- Pre-filled with DE-OX prevents oxide from forming
- Stranded class B and C concentric, compressed and unidirectional lay compact
- Rated for full ampacity of incoming conductor
- Clearly marked with conductor size and die index which provides easy identification and tooling recommendation
- Marked with number and location of crimps and color coded
- All supplied with insulating cover which eliminates taping, temperature range is 90 deg C and ensures reliability for aluminum or copper conductors
- Provides easy identification and tooling recommendation
- Dieless crimp tools must not be used to crimp CPM/CPML adapters
- 90 deg C temperature rating
- Dual-rated for aluminum and copper conductor
- Chamfered barrel
CPM-600 Standards
UL 486A-B File No. E62525|CSA File No. LR29601|ECCN EAR99|PROP65: Cancer - www.p65warnings.ca.govSKU #2211652Part Number #CPM-600UNSPSC39121448UPC00783669008661
