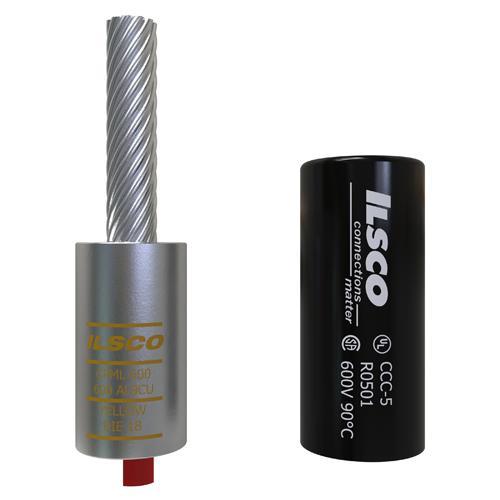

ILSCO CPML-600 ILSCO ClearChoice Pigtail Adapter
ILSCO CPML-600 ILSCO ClearChoice Pigtail Adapter
Part #:CPML-600
SKU #: 2284827
Key Features
Part #:CPML-600
SKU #: 2284827
Brand: Ilsco
Barrel Length: 2-5/8, 2-5/8 in
Conductor Size: 600, 600 kcmil
Dimensions: 5-5/8 in W
Series: CPM
Specifications: 3-3/32 in L Cover, 350 kcmil Pin, 59/64 in ID x 1-1/2 in OD
- Barrel manufactured from high strength aluminum alloy which allows insertion into equipment supplied with either copper or aluminum connectors
- Pigtail manufactured from high conductivity copper which provides maximum conductivity and excellent crimping characteristics, chamfered barrel which provides easy conductor insertion
- Color coded end caps inserted in barrel which prevents foreign materials from entering the connector prior to usage and color code identifies the proper compression die
- Pre-filled with DE-OX prevents oxide from forming
- Stranded class B and C concentric, compressed and unidirectional lay compact
- Rated for full ampacity of incoming conductor
- Clearly marked with conductor size and die index which provides easy identification and tooling recommendation
- Marked with number and location of crimps and color coded
- All supplied with insulating cover which eliminates taping, temperature range is 90 deg C and ensures reliability for aluminum or copper conductors
- Provides easy identification and tooling recommendation
- Dieless crimp tools must not be used to crimp CPM/CPML adapters
- 90 deg C temperature rating
- Dual-rated for aluminum and copper conductor
- Chamfered barrel
ILSCO CPML-600 ILSCO ClearChoice Pigtail Adapter
ILSCO ClearChoice Pigtail Adapter, Dual Rated, Series: CPM, 600 kcmil Conductor, Die Code: 18, Yellow Color Code, 0.681 in Pin Diameter, 3 in Pin Length, 2-5/8 in Barrel Length, 600 VAC, Specifications: 3-3/32 in L Cover, 350 kcmil Pin, 59/64 in ID x 1-1/2 in OD, Aluminum/Copper, 5-5/8 in W Dimensions
Additional Description: ILSC-CPML-600 AL CMP 600 UL PIGTAIL LONG PIN
Catalog Description: Copper Compression Pigtail Adaptor, Conductor Size 600, Long Barrel, Tin Plated, UL, CSA
