Part Number # CRA-3/0-12M
SKU # 2217598
Image Disclaimers Message
CRA-3/0-12M

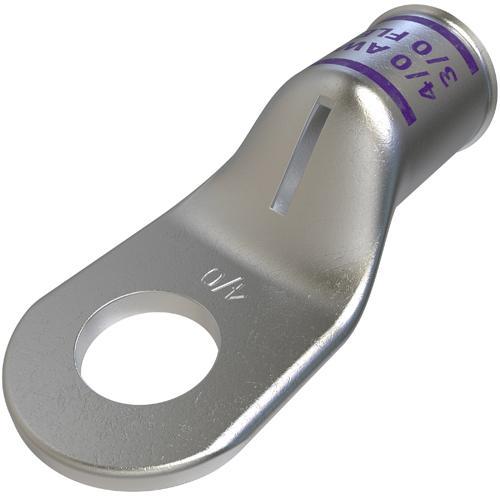

ILSCO CRA-3/0-12M ILSCO ClearChoice Mining Lug Connector
Part Number # CRA-3/0-12M
SKU # 2217598
$491.00 / 50Each
Ilsco CRA-3/0-12M Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | CRA-3/0-12M |
| SKU #: | 2217598 |
| Barrel Size: | 0.591 in ID x 0.72 in OD |
| Conductor Size: | 3/0, 3/0 AWG |
| Dimensions: | 1.035 in W |
| Overall Length: | 2.382, 2.382 in |
| Series: | CRAM |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 1.071 in L x 1.035 in W x 0.13 in THK |
| Tongue Type: | Solid Seamless |
| Type: | 1-Hole |
| Color: | Purple |
| Country of origin: | IN |
| Material: | Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121448 |
| UPC: | 00783669098372 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$491.00 / 50Each
Quantity:
- ILSCO ClearChoice Mining Lug Connector, 1-Hole, Series: CRAM, 3/0 AWG Conductor, 600 V AC, 1/2 in Stud, Solid Seamless Tongue, 1.071 in L x 1.035 in W x 0.13 in THK Tongue, 2.382 in Overall Length, 0.591 in ID x 0.72 in OD Barrel, 90 deg C, Copper, Purple, 1.035 in W
CRA-3/0-12M Application
For terminating connectorCRA-3/0-12M Item Features
- Electro-tin plated
- Solid seamless tang
- Electrolytic copper
- Suitable for use in circuits rated 35 kV or less, Proper high voltage spacing and insulation techniques must be used
- Provides low contact resistance
- Visual inspection of proper cable insertion
- For performance and strength
- For high conductivity
- Application versatility
- Ease of wire insertion with flared end
- For copper conductor only
- Listed with ILSCO MT-25
- Color coded
- Maximum conductivity and excellent crimping characteristics
- 4/0 AWG alternate conductor size
- 3/0 AWG flexible conductor size
CRA-3/0-12M Standards
UL 486A-B/E6207|CSA LR-29601SKU #2217598Part Number #CRA-3/0-12MUNSPSC39121448UPC00783669098372
