Part Number # CRA-4-516M
SKU # 2208017
CRA-4-516M
ILSCO CRA-4-516M ILSCO ClearChoice Mining Lug Connector
Part Number # CRA-4-516M
SKU # 2208017
Ilsco CRA-4-516M Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | CRA-4-516M |
| SKU #: | 2208017 |
| Barrel Size: | 0.475 in L |
| Conductor Size: | 4, 4 AWG |
| Conductor Type: | Flex Copper |
| Dimensions: | 0.283 in ID x 0.362 in OD |
| Mounting Hole Size: | 0.338 in Dia |
| Overall Length: | 1.496, 1.496 in |
| Specifications: | 0.275 in Mounting Hole Spacing |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 0.728 in L x 0.626 in W x 0.075 in THK |
| Type: | 1-Hole Type CRAM |
| Country of origin: | IN |
| Material: | Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121448 |
| UPC: | 00783669098136 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO CRA-4-516M ILSCO ClearChoice Mining Lug Connector
Brand: Ilsco
Part Number: CRA-4-516M
ILSCO ClearChoice Mining Lug Connector, 1-Hole Type CRAM, Flex Copper Conductor, 4 AWG Conductor, 600 VAC, 5/16 in Stud, 0.728 in L x 0.626 in W x 0.075 in THK Tongue, 1.496 in Overall Length, 0.475 in L Barrel, 0.275 in Mounting Hole Spacing, 90 deg C, 0.338 in Dia Mounting Hole, Copper, Gray, 0.283 in ID x 0.362 in OD
Additional Description: ILSC-CRA-4-516M (N) CU CMP 4 5/16 T UL CSA NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Copper Mining Lug, Conductor Size 4, 1 Hole, 5/16in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
CRA-4-516M Application
Terminating connectorCRA-4-516M Item Features
- Manufactured from high strength seamless copper tubing
- Electro-tin plated
- Maximum conductivity and excellent crimping characteristics
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Ease of wire insertion with flared end
CRA-4-516M Standards
UL 486A/B File No. E6207|CSA File No. LR29601SKU #2208017Part Number #CRA-4-516MUNSPSC39121448UPC00783669098136

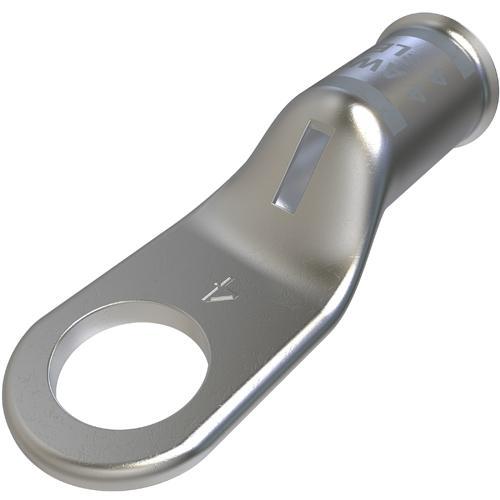

Image provided may only be a representation of final product and may include optional equipment
