Part Number # CRA-8-12M
SKU # 2153024
Image Disclaimers Message
CRA-8-12M

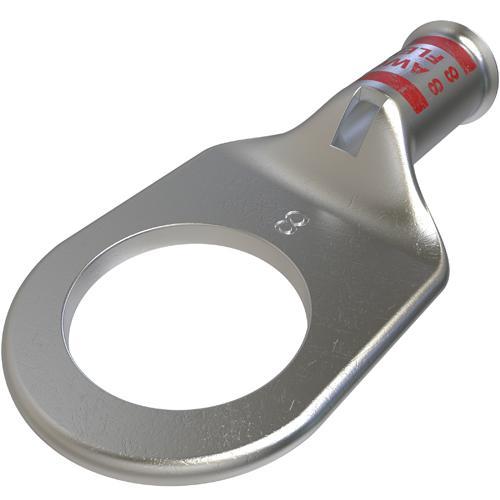

ILSCO CRA-8-12M ILSCO ClearChoice Mining Lug Connector
Part Number # CRA-8-12M
SKU # 2153024
Ilsco CRA-8-12M Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | CRA-8-12M |
| SKU #: | 2153024 |
| Barrel Size: | 0.185 in ID x 0.256 in OD |
| Conductor Size: | 8, 8 AWG |
| Dimensions: | 0.752 in W |
| Overall Length: | 1.48, 1.48 in |
| Series: | CRAM |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 0.858 in L x 0.752 in W x 0.059 in THK |
| Tongue Type: | Solid Seamless |
| Type: | 1-Hole |
| Color: | Red |
| Country of origin: | IN |
| Material: | Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121448 |
| UPC: | 00783669098044 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO CRA-8-12M ILSCO ClearChoice Mining Lug Connector
Brand: Ilsco
Part Number: CRA-8-12M
ILSCO ClearChoice Mining Lug Connector, 1-Hole, Series: CRAM, 8 AWG Conductor, 600 VAC, 1/2 in Stud, Solid Seamless Tongue, 0.858 in L x 0.752 in W x 0.059 in THK Tongue, 1.48 in Overall Length, 0.185 in ID x 0.256 in OD Barrel, 90 deg C, Copper, Red, 0.752 in W
Additional Description: ILSC-CRA-8-12M (N) CU CMP 8 1/2 T UL CSA NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Copper Mining Lug, Conductor Size 8, 1 Hole, 1/2in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
CRA-8-12M Application
For terminating connectorCRA-8-12M Item Features
- Electro-tin plated
- Solid seamless tang
- Electrolytic copper
- Suitable for use in circuits rated 35 kV or less, Proper high voltage spacing and insulation techniques must be used
- Provides low contact resistance
- Visual inspection of proper cable insertion
- For performance and strength
- For high conductivity
- Application versatility
- Ease of wire insertion with flared end
- For copper conductor only
- Listed with ILSCO MT-25
- Color coded
- Maximum conductivity and excellent crimping characteristics
- 8 AWG alternate conductor size
- 8 AWG flexible conductor size
CRA-8-12M Standards
UL 486A/486B File No. E6207|CSA LR-29601|PROP65: it is not known to contain any chemicals associated with this regulationSKU #2153024Part Number #CRA-8-12MUNSPSC39121448UPC00783669098044
